Komatsu HD785-5 User Manual

.
OPERATION
EXPLANATION OF COMPONENTS

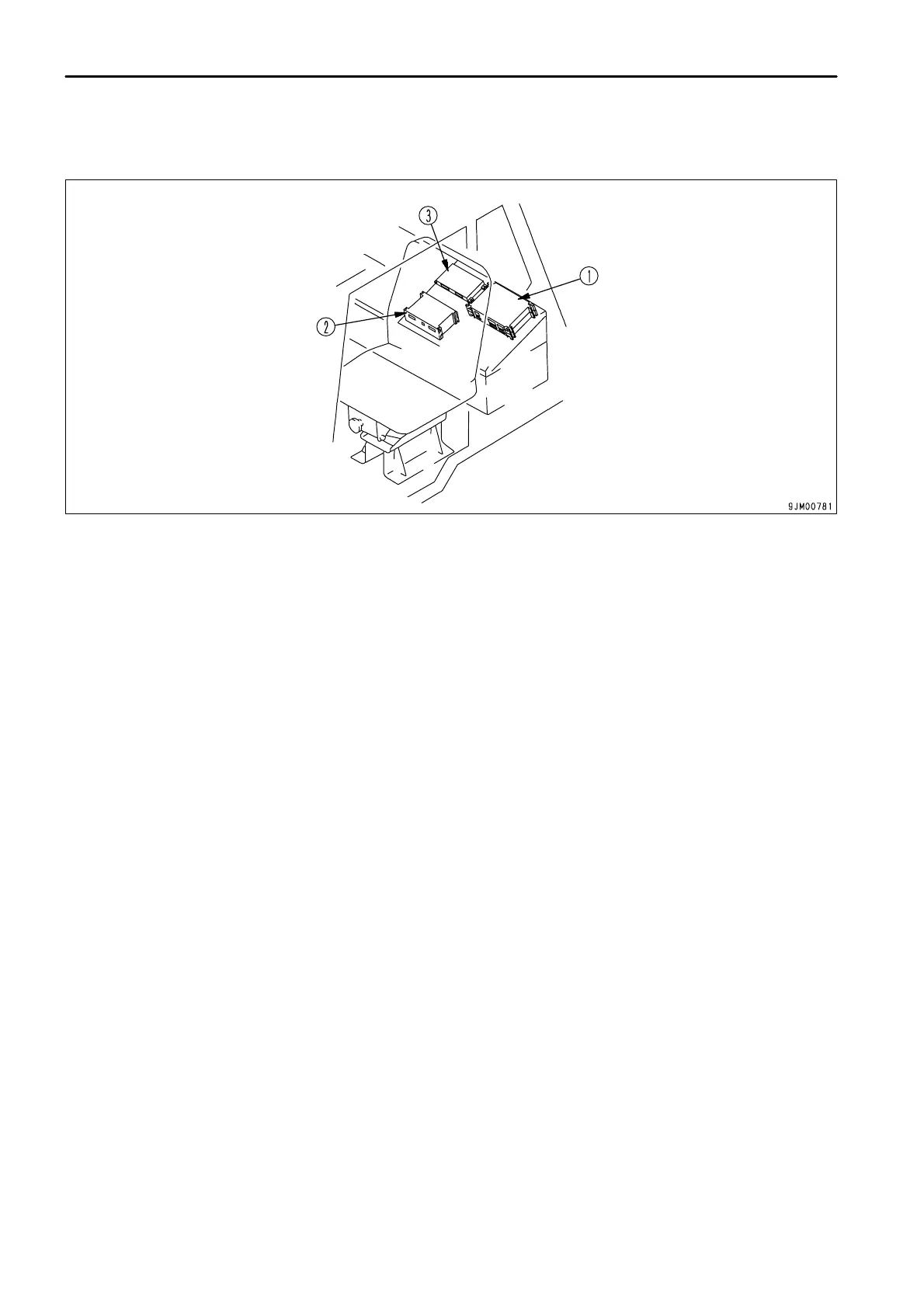

MECHATRONICS EQUIPMENT CONTROLLER
(1)
(2)
Transmission controller
Engine controller
(3) Suspension controller
TRANSMISSION CONTROLLER
A two-digit number followed by the service code is displayed in the inspection window of this controller (1) to identify
the location of the abnormality. When the condition is normal, "0.0" or "0.C" is displayed.
For the mothod of checking the service code when an abnormality occurs, see "TRANSMISSION CONTROLLER
(PAGE 3-119)".
ENGINE CONTROLLER
For this controller (2), the last two-digit number of the service code is displayed in the inspection window to identify
the location of the abnormality. When the condition is normal, "0.0" is displayed.
For the method to check the service code when the abnormality occurs, see "SERVICE CODE (PAGE 3-118)".
SUSPENSION CONTROLLER
For this controller (3), the last two-digit number of the service code is displayed in the inspection window to identify
the location of the abnormality. When the condition is normal, "0.0" is displayed.
For the method to check the service code when the abnormality occurs, see "SERVICE CODE (PAGE 3-118)".
3 - 34
