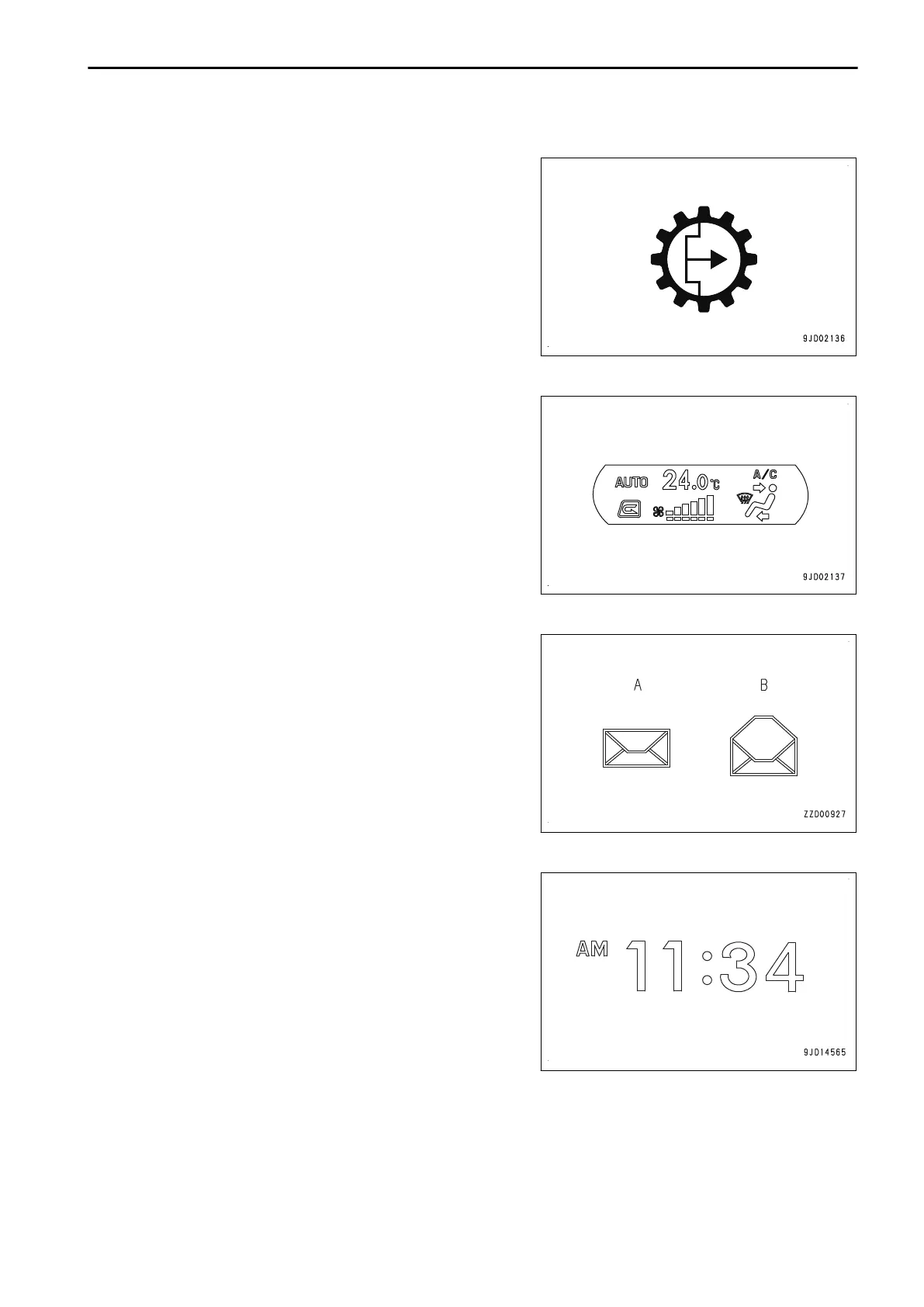

TRANSMISSION CUT-OFF PILOT LAMP
The transmission cut-of
f pilot lamp lights up when the transmis-
sion cut-off function is enabled.
It flashes for 2.5 seconds while resetting is being accepted af-
ter the cut-off position is set.
When the transmission cut-off switch is turned ON, the display
pops up.
For detail, see “TRANSMISSION CUT-OFF FUNCTION
(3-198)”.
AIR CONDITIONER DISPLAY
The air conditioner display shows the operating state of the air
conditioner.
For detail, see “HANDLE AIR CONDITIONER (3-224)”.
MESSAGE DISPLAY
The message display lights up when there is a message from
Komatsu.
(A): There is unread message
(B): There is any read message to which no reply is made.
To read the message, see “MESSAGE DISPLAY (3-91)”.
CLOCK
The clock indicates the current time.
For detail, see “CLOCK ADJUSTMENT (3-82)”.
OPERATION EXPLANATION OF COMPONENTS
3-37
