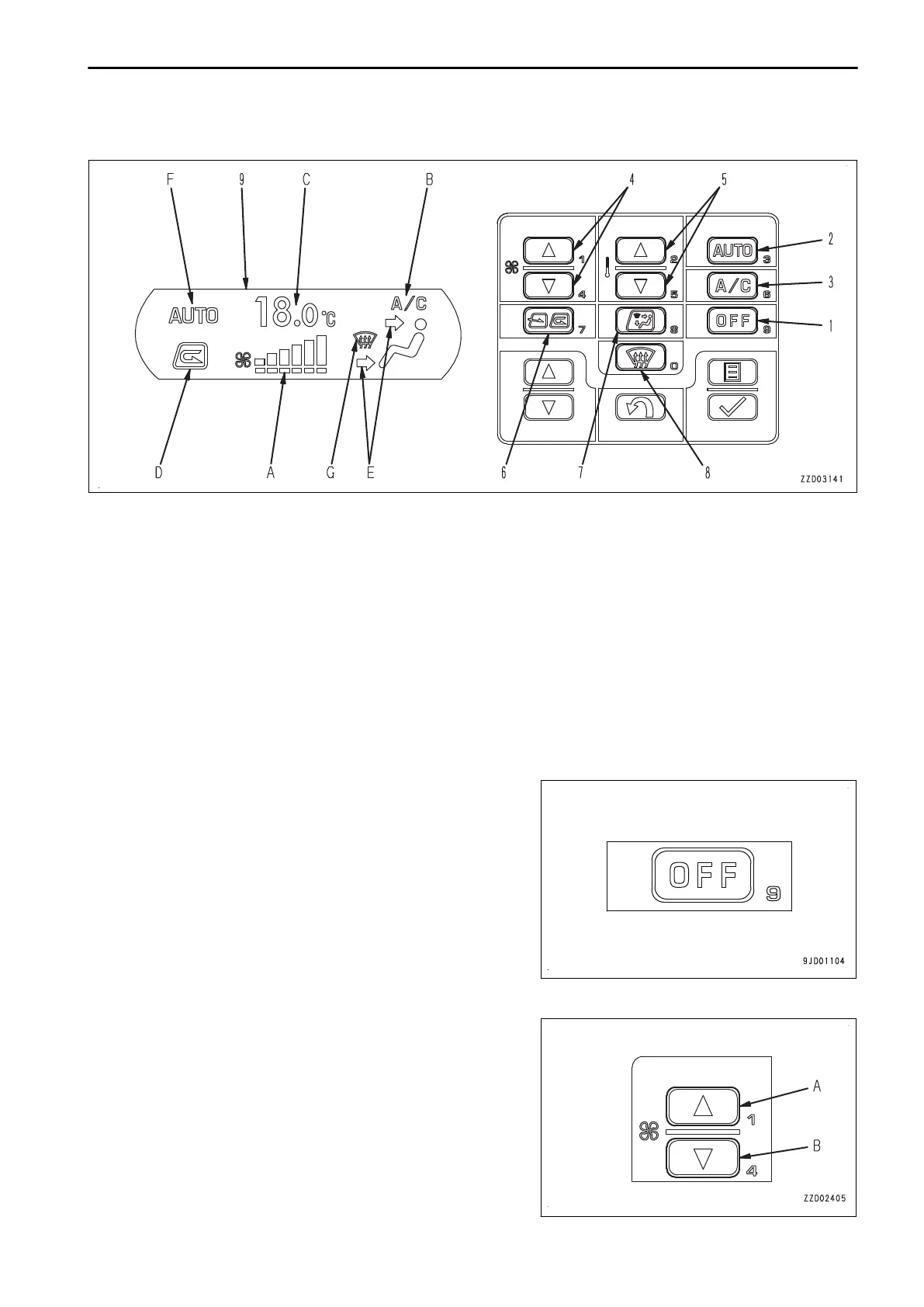

EXPLANATION OF AIR CONDITIONER EQUIPMENT
(1) OFF switch
(2) Auto switch
(3) Air conditioner switch
(4) Fan switch
(5) Temperature control switch
(6) FRESH/RECIRC air selector switch
(7) Vent selector switch
(8) Defroster switch
(9) Display monitor
Air conditioner monitor
(A) Air flow bar
(B) Air conditioner operation symbol
(C) Set temperature display
(D) FRESH/RECIRC selector symbol
(E) Vent display
(F) Automatic operation symbol
(G) Defroster symbol
OFF SWITCH
The OFF switch is used for stopping the fan and air conditioner
.
REMARK
Even
if
this OFF switch is pressed, the monitor screen does not
switch to the air conditioner adjustment screen.
FAN SWITCH
Use the fan switch to adjust the air flow from the fan in the
manual operation.
When switch (A) is pressed while the air conditioner power
supply is OFF, the electric power for the air conditioner is
turned ON. At this time the air flow starts from “LOW”.
• The air flow can be adjusted to 6 levels.
• Press switch (A) to increase the air flow and press switch
(B) to decrease the air flow.
OPERATION HANDLE AIR CONDITIONER
3-225
To Next Page
