• When approaching a dump truck during loading oper-
ation, set
the transmission cut-off (transmission in
NEUTRAL) position of the brake pedal to a higher po-
sition. In this setting, the fine control of the brake is
only required just in front of the dump truck, so you
can control and stop the machine easily and softly.
• Turn the switch to ON position during operation.
In the downhill travel, however, turn OFF the transmission cut-off function and use engine braking.
The brake pedals installed on the right and left sides of the steering post provide the same function.

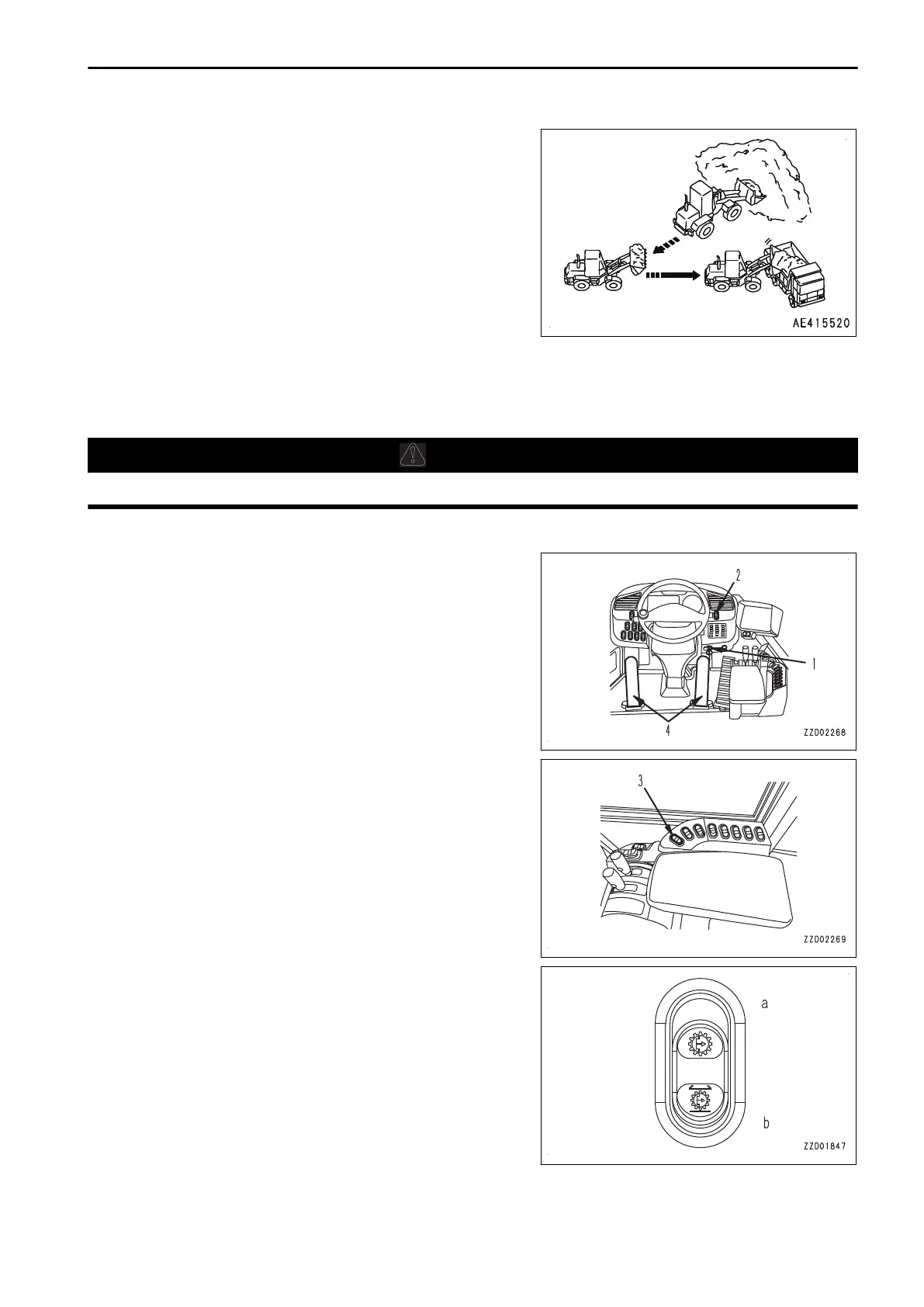

METHOD FOR ADJUSTING TRANSMISSION CUT-OFF POSITION
CAUTION
Apply the parking brake, before starting adjustment of the transmission cut-off position.
Adjust the brake pedal depressing position.
1.
Start the engine with starting switch (1), set parking brake
switch (2) to ON (operation) position.
2.
Press (a) of transmission cut-off switch (3) to set it to ON
position.
Check that the transmission cut-off pilot lamp is lit.
3.
Depress brake
pedal (4) to adjust the set position where
the transmission is NEUTRAL.
4.
Press (b) of transmission cut-off switch (3), and release it.
When you release the switch, the buzzer beeps indicating
that the cut-off position is set.
Method for canceling the cut-off position
5.
Press part (b) of transmission cut-off switch (3) again while the transmission cut-off pilot lamp is flashing.
OPERATION MACHINE OPERATIONS AND CONTROLS
3-199
