Displaying the Measurement Results
At the end of measurement, the measurement results will be displayed on the LCD according to the spec-
ified measurement condition. Typical measurement result screens are shown hereafter. To change LCD’s
display contents, change them in the corresponding <COND
*
> screen. For details, refer to “Setting a
Measurement Condition” (from page E-34).
Measured Data
The following screen appears if “DIFF&ABS” has been selected for “DISPLAY” mode.
Note
• Color difference will not be displayed if no target color has been selected.
• If the target mode is “linked to each data.”, you will not be able to view the color difference for measurement
data that uses the deleted color difference target data.
M
emo
“#####” will be displayed if the color difference data has two or more decimal places.

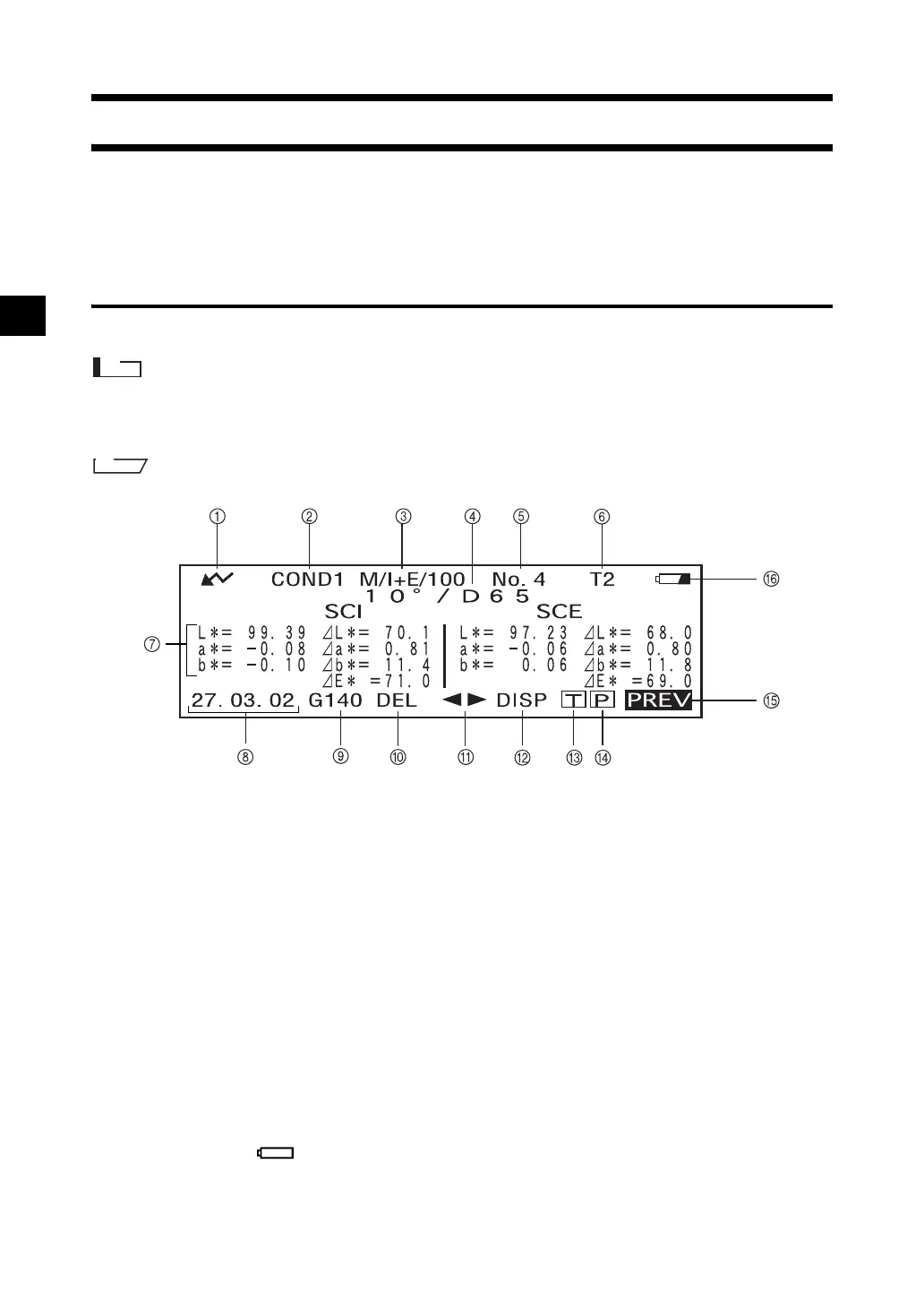

1 Ready to measure.
2 Currently selected <COND
*
> no.
3 Mask/gloss/UV at the time of measurement
4 Currently selected observer/illuminant
5 Currently selected measured data no.
6 Currently selected target color data no.
7 Measured data
8 Measurement date. For the year, only the lower two digits are displayed.
9 Displays the relative gloss value. If the gloss value exceeds 200, the screen will display
“G###” in place of the value.
0 Deletes the currently displayed measured data.
A Displays other measured data.
B Switches the screen page from one to another (when there are two pages or more).
C Switches to the <TARGET> screen for the currently selected no. (T
*
).
D Outputs the currently displayed measured data to the printer.
E Returns to the <COND
*
> screen.
F Appears if there is insufficient battery power when the instrument is powered by the bat-
tery. If appears, replace the batteries with new ones.
