WARNING
Do not place the CM-3600A on an unstable or sloping surface. Doing so may result in its
falling or overturning, causing injury. Take care not to drop the CM-3600A when carrying it.
Be careful around openings in the CM-3600A. Failure to do so
may result in fingers being trapped causing injury.
The CM-3600A allows you to select a target mask from the following three
types according to the specimen and your application.
Target mask
CM-A105 (for LAV ø25.4mm measurements: illumination area: ø30mm)
CM-A106 (for MAV ø8mm measurements: illumination area: ø11mm)
CM-A107 (for SAV ø4mm measurements: illumination area: ø7mm)

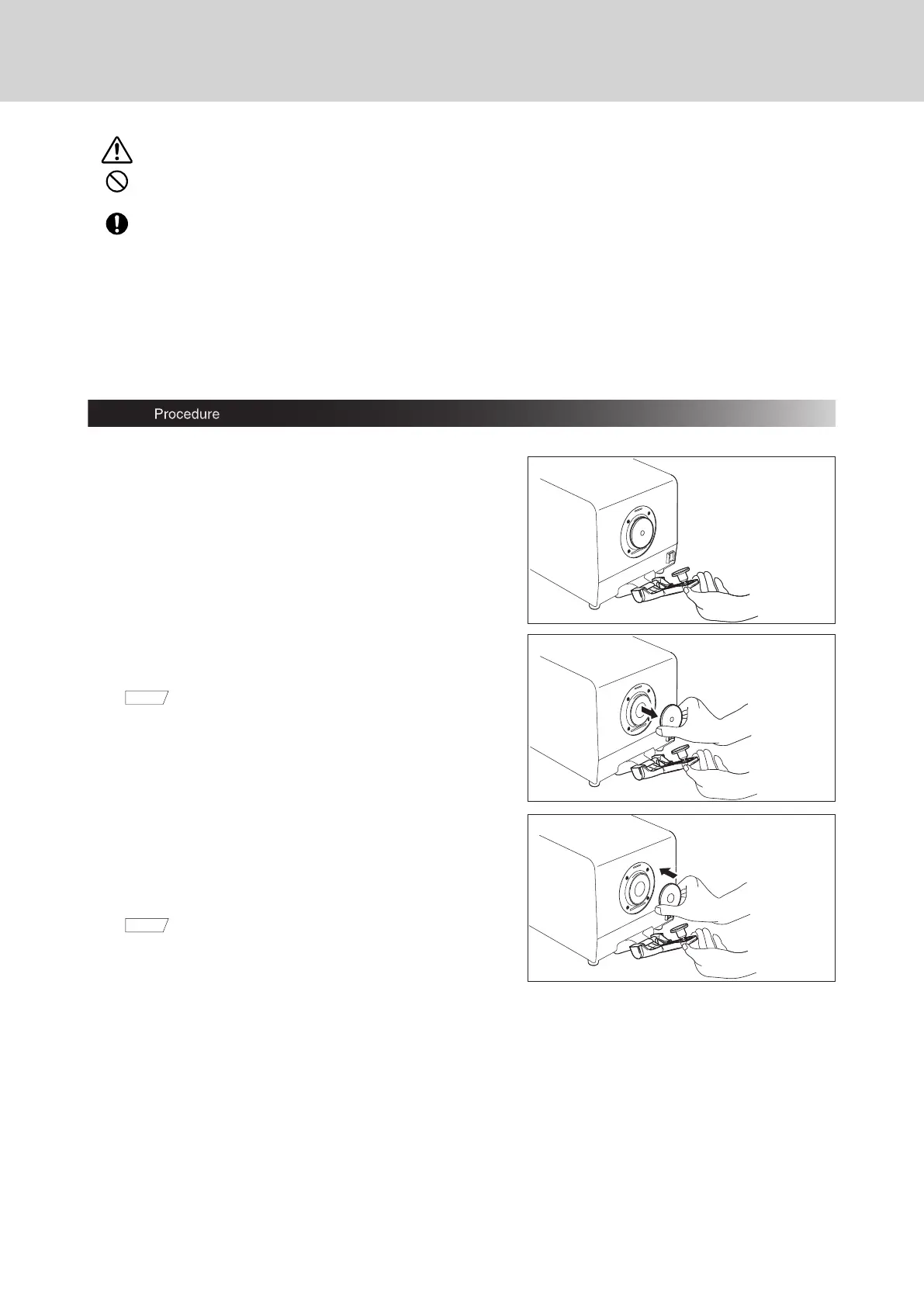

Attaching a Target Mask
Procedure
1.
Pull the sample holder toward
you and keep it open.
○
The sample holder will remain open
when opened more than 70 degrees.
2.
Remove the currently attached target
mask by pulling it toward you.
Memo
• The target mask is held on by magnets.
3.
Take the desired target mask in your
hand, and attach it to the CM-3600A. Make
sure that it fits into the concave area
around the integrating sphere opening.
Memo
• When attaching a target mask, make sure that
the black-coated side faces the CM-3600A.
4.
Release the sample holder to close it.
⿎
Notes on Use of Target Mask
○ T
ake care not to scratch or make the inner surface (black-coated surface) of the target masks dirty with
such as fingerprints.
○
The target masks may become discolored if left in areas exposed to light. Therefore, make sure that
target masks which are currently not in use are kept inside the accessory case (CM-A215) to prevent
exposure to light.
○
When not using the CM-3600A, attach one of the target masks or the protective cap to prevent dust
entering the integrating sphere.
○
Take care not to leave the CM-3600A for a long period of time with a target mask attached. The sample
holder may stick to the target mask.
To Next Page
