The CM-3600A allows you to select a target mask from three types: LAV (for ø25.4mm measurements),
MAV (for ø8mm measurements) and SAV (for ø4mm measurements), according to the specimen and your
application. Select and attach a suitable target mask (illumination area) for each measurement area.
⿎
Target Mask
Since the CM-3600A has no target mask detection function, it is not possible for the instrument to
determine which target mask has been attached. Thus, when switching from one target mask to another,
be sure that the intended target mask is attached and the instrument is properly set from the software.
Furthermore, since the target masks are coated in black and measurement is influenced by the
condition of this coated surface, do not touch this surface with your hands, scratch it or make it dirty.
⿎
Measurement Area
When the measurement area is switched from one to another, the condensing lens of the receiving optical
system is moved by the motor according to the commands from the software running on a personal computer.

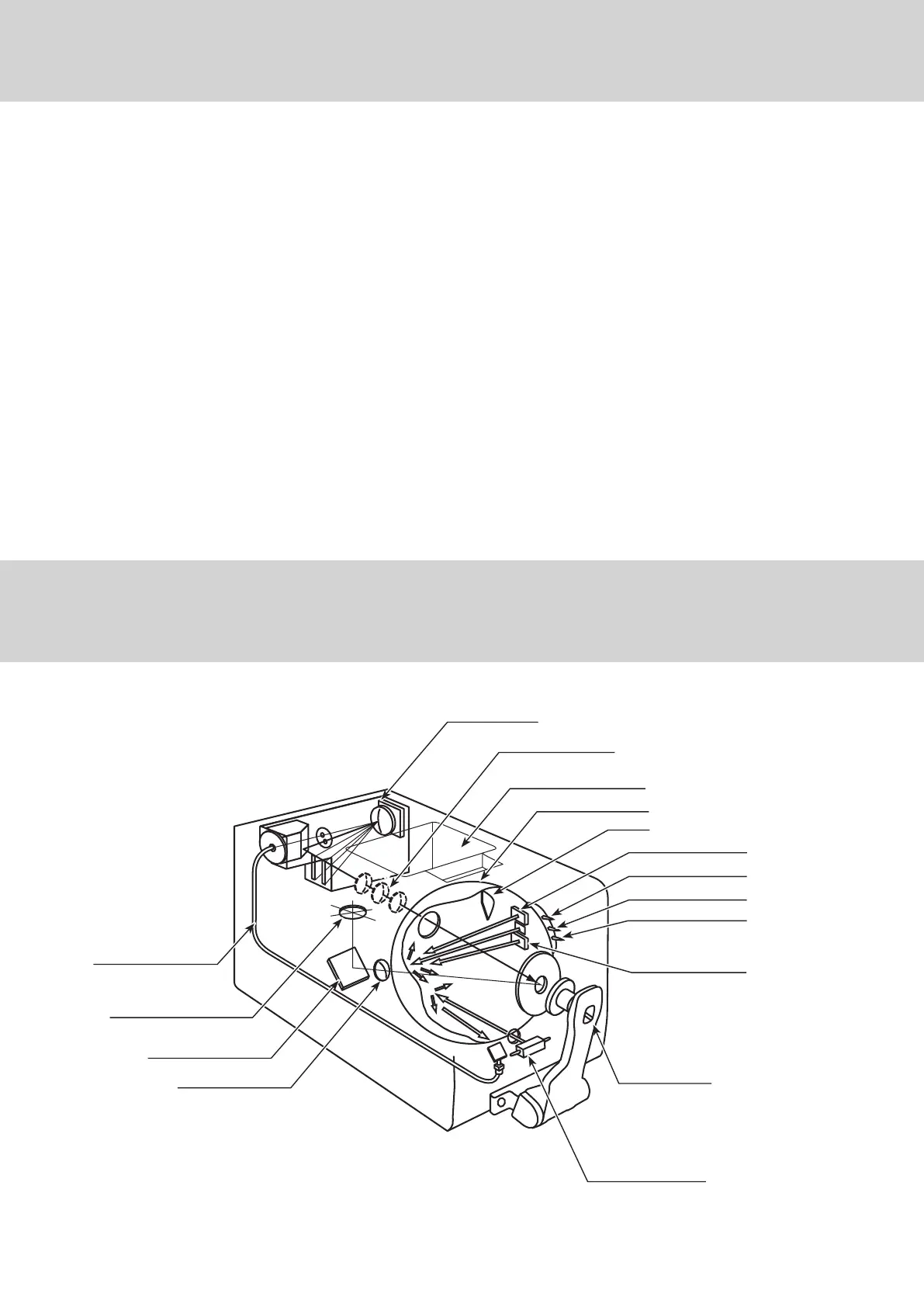

Illumination and Measurement Areas
System Configuration
SAV
LAV
MAV
Integrating sphere
Illumination-monitoring
optical fiber
Viewfinder mirror
Viewfinder frosted glass
Viewfinder lens
Spectral sensor
Light-receiving lens
Transmittance chamber
Baffle
400 nm UV cut filter
Xenon flash lamp 3
Xenon flash lamp 1
Sample holder
Xenon flash lamp 4
420 nm UV cut filter
Xenon flash lamp 2
