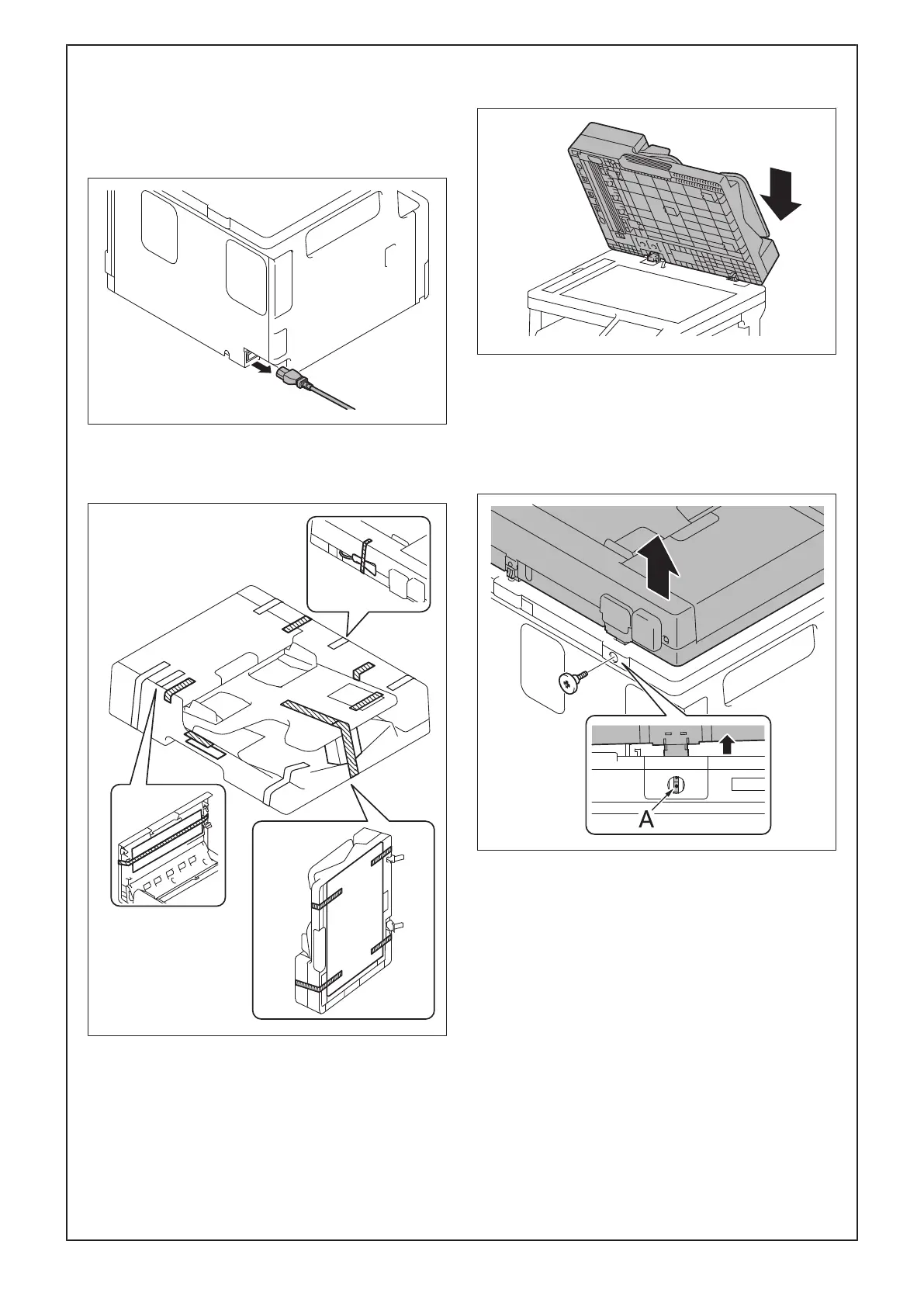

3. Installation procedures
(1) Turn OFF the main power switch and unplug
the power cord from the power outlet.
(2) Unplug the connector of the power cord to the
main body.
(3) Remove the protective tape and protective ma-
terials and remove the protective plastic bags
of the cable and relay harness.
(4) Place the reverse automatic document feeder
(DF) in position.
(5) While raising the DF by applying a force up-
ward at the position shown in the illustration,
insert and tighten the supplied shoulder screw.
Note:
Tighten the screw into the screw hole (A) in the
metal plate located at the bottom of the hinge.
