Viewing images on a television
It is possible to view camera images on your television. The camera has a video-out terminal to
make the connection using the supplied AV cable. The camera is compatible with the NTSC and
PAL standards. The video-output setting can be checked and set in section 4 of the setup menu (p.
88).
1. Turn off the television and the camera.

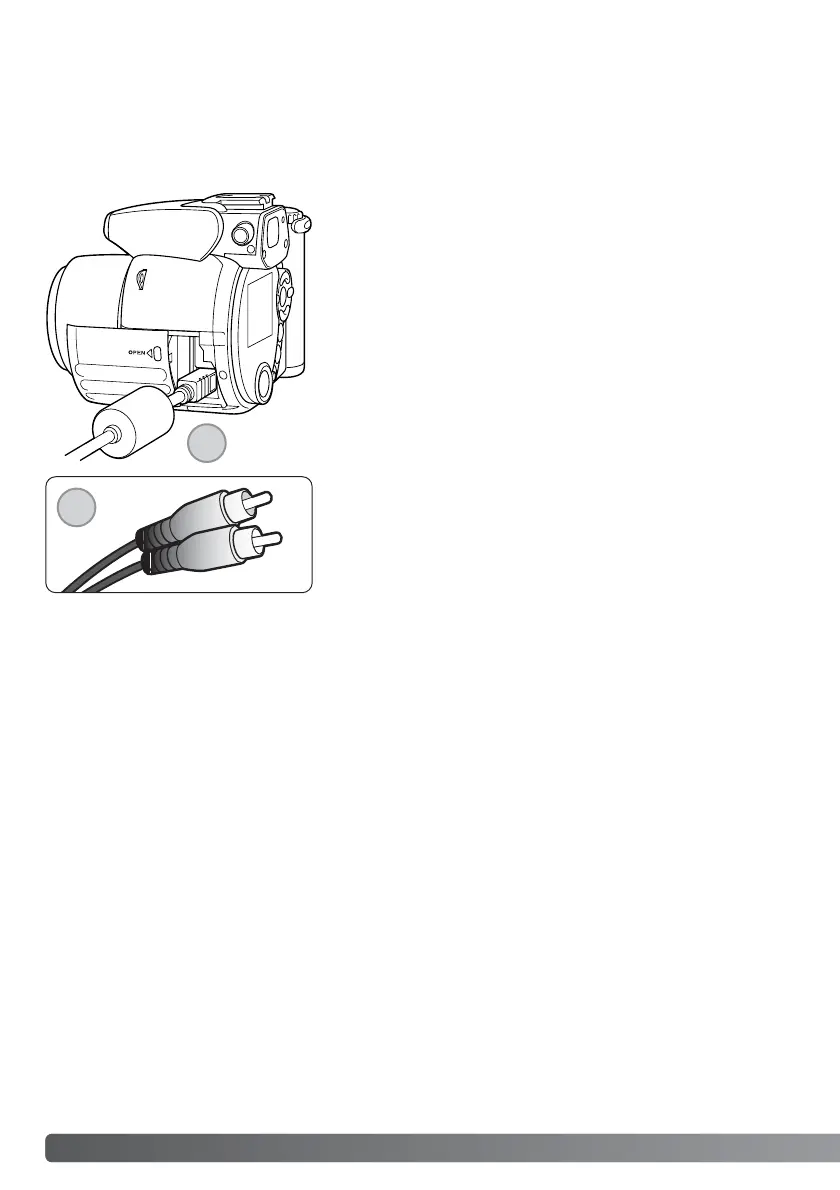

2. Insert the small plug of the AV cable into the camera’s AV-
out terminal. The triangular mark on the plug should face the
back of the camera.
3. Plug the other end of the AV cable into the video and audio
input terminals on the television. The yellow plug is for the
video output. The white plug is for the monaural audio out-
put.
4. Turn the television on.
5. Change the television to the video channel.
6. Turn the camera’s mode dial to the playback position and
turn on the camera. The camera’s monitors will not activate
when the camera is attached to a television. The playback-
mode display will be visible on the television screen.
7. View images as described in the playback section.
