Names of Parts (Cont’d)

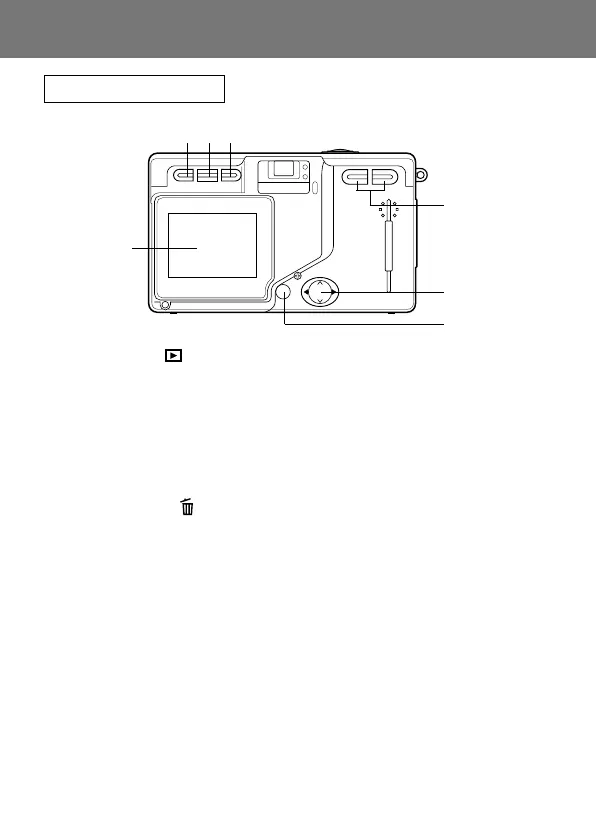

Operation Buttons
q Play Button ( )
Use this button for playing back images, or setting up the play menu.
This button can be used whether the camera’s power is ON or OFF
(p.23).
w Display Button
For turning LCD monitor on and off, and switching the picture information
display on and off. When the power is ON, the LCD monitor lights, so it
should be turned OFF when you are shooting through the viewfinder.
e Delete Button ( )
For deleting unwanted photos.
r Zoom Buttons
For operating the optical and digital zoom functions.
t 4-way Button ()
Use the different buttons , , , and , to select menu items, images,
etc. This button is used for the following:
• Selecting shooting mode
• Selecting menus
• Selecting pictures
• Scrolling a picture in an enlarged display
y Menu/Set Button
For displaying the menu screen, selecting the contents and confirming
choices.
q
r
t
y
LCD Monitor
w
e

Konica Minolta Konica Digital Revio KD-400Z Specifications

General

Manufacturer	Konica Minolta
Model	Konica Digital Revio KD-400Z
Category	Digital Camera
Type	Compact
Effective Pixels	4.0 MP
Sensor Type	CCD
Image Resolution	2272 x 1704
ISO Sensitivity	Auto, 100, 200, 400
Storage Media	SD Card
File Format	JPEG
Lens	3x Optical Zoom
Aperture Range	f/2.8 - f/4.9
Shutter Speed	1/2000 - 2 sec
LCD Screen	1.5 inch TFT
Video Recording	Yes, 320 x 240 at 15 fps
Battery	Lithium-Ion
Weight	165 g
