KSB Delta Basic
1983.835/01-EN
4 Description
4.1 General description
▪ Pressure booster system
4.2 Designation
Example: KSB Delta Basic 3/1004 MVP
Table8: Designation key
Code Description
KSB Delta Basic Type series
3 Number of pumps
10 Size
04 Number of stages
MVP Design
MVP Variable speed pressure booster system
4.3 Name plate
ID PN
Prod. IP
RDP PO
U Kalkovenweg 13
F Alphen a/d Rijn, NL
Imax www.ksb.com
KSB B. V.
Made in NL
KSB Delta Basic 3/1004
MVP
48278544
33A
50Hz
3x400V+N
COS PHI
01/2018 1234567-01
123456789
54
10
1
14
13
12
6
11
10
9
8
7
2
5
43

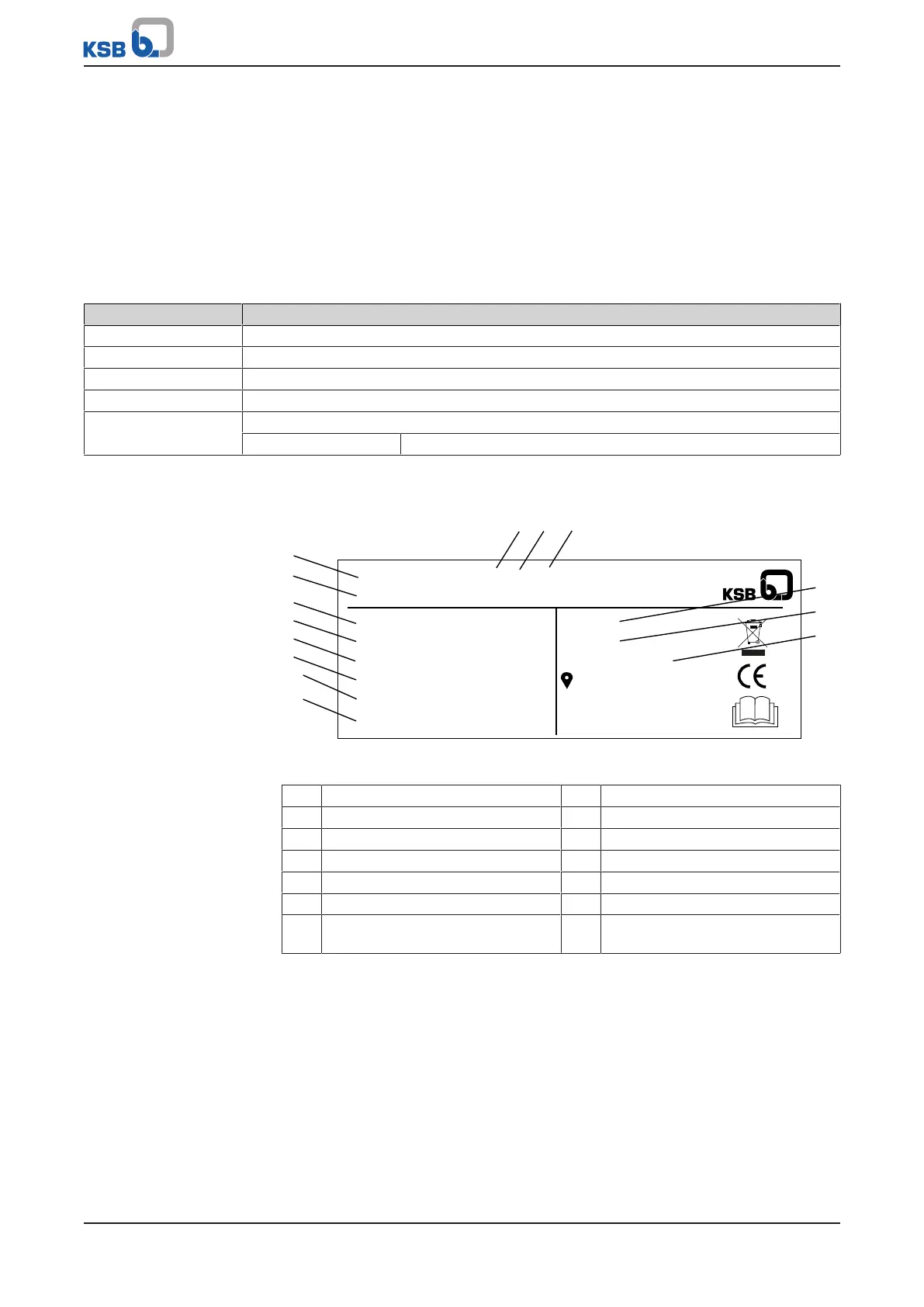

Fig.1: Name plate (example)
1 Type series 8 Dry running protection
2 Design 9 Power supply voltage
3 Number of pumps 10 Power supply frequency
4 Size 11 Maximum current input
5 Number of pump stages 12 Max. operating pressure
6 Serial number 13 Enclosure
7 Month of production/ year of
production, consecutive number
14 Order number
4.4 Design details
Design
▪ Fully automatic pressure booster system
▪ Variable speed operation
▪ Baseplate-mounted
▪ Hydraulic components made of stainless steel / brass
▪ Check valve per pump
▪ Shut-off valve for each pump
