KSB Delta Basic MVP User Manual

5 Installation at Site
23 of 48
KSB Delta Basic
1983.835/01-EN
5.6.1 Sizing the power cable
Determine the cross-section of the power cable based on the total rated power
required.
5.6.2 Connecting the pressure booster system
ü The pressure booster system can be operated on the power supply network in
accordance with the data on the name plate.
ü The wiring diagram is available.
1. Connect terminals L1, L2, L3 and PE in accordance with the wiring plan.
2. Connect the potential equalisation conductor on the baseplate to the terminal
with the earthing symbol.
1
2

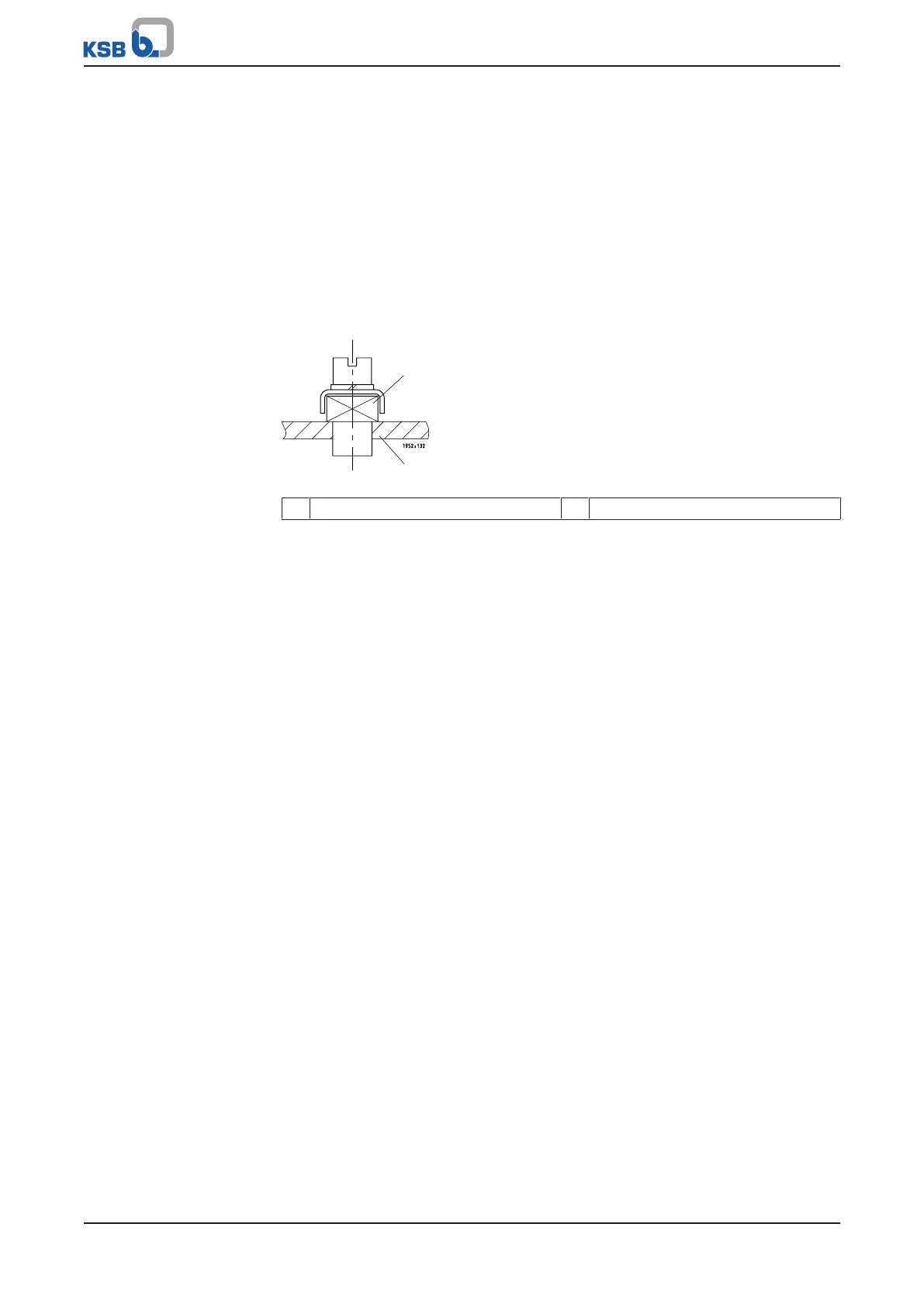

Fig.5: Connecting the potential equalisation conductor
1 Earthing terminal 2 Baseplate
For accessories and/or integrated machinery components, observe the relevant
manufacturer's product literature.
