3 Transport/Temporary Storage/Disposal
3.1 Transport
DANGER
The pump (set) could slip out of the suspension arrangement
Danger to life if hit by a falling part!
▷ Always transport the pump (set) in the specified position.
▷ Never attach the suspension arrangement to the free shaft end or the motor
eyebolt.
▷ Refer to the weight given in the general arrangement drawing.
▷ Observe the local accident prevention regulations.
▷ Use suitable, permitted lifting tackle, e.g. self-tightening lifting tongs.
To transport the pump/pump set suspend it from the lifting tackle as follows.

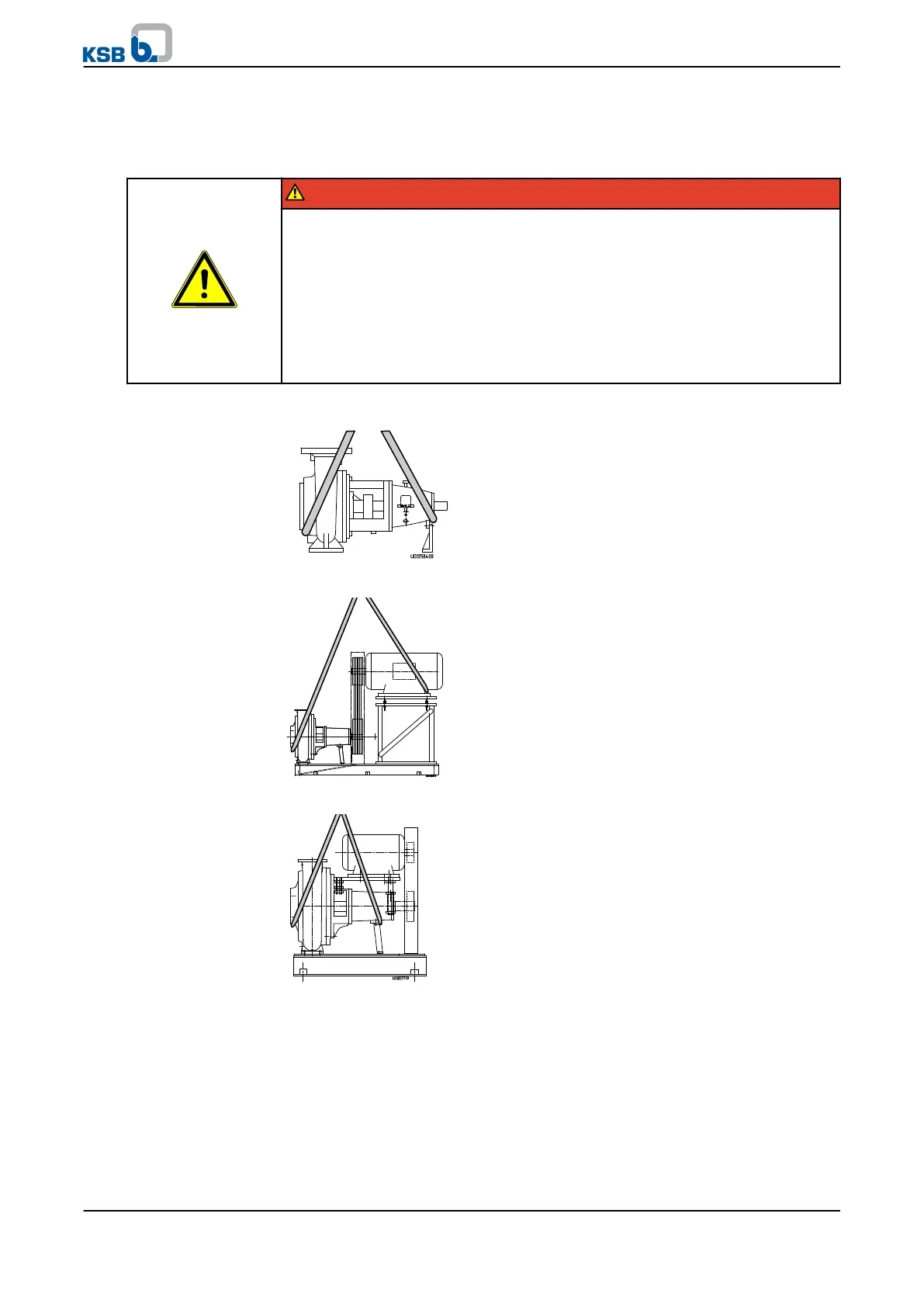

Fig. 1: Transporting the pump
Fig. 2: Transporting a pump set with belt drive (figure 3Z)
Fig. 3: Transporting a pump set with belt drive (figure 4H)
