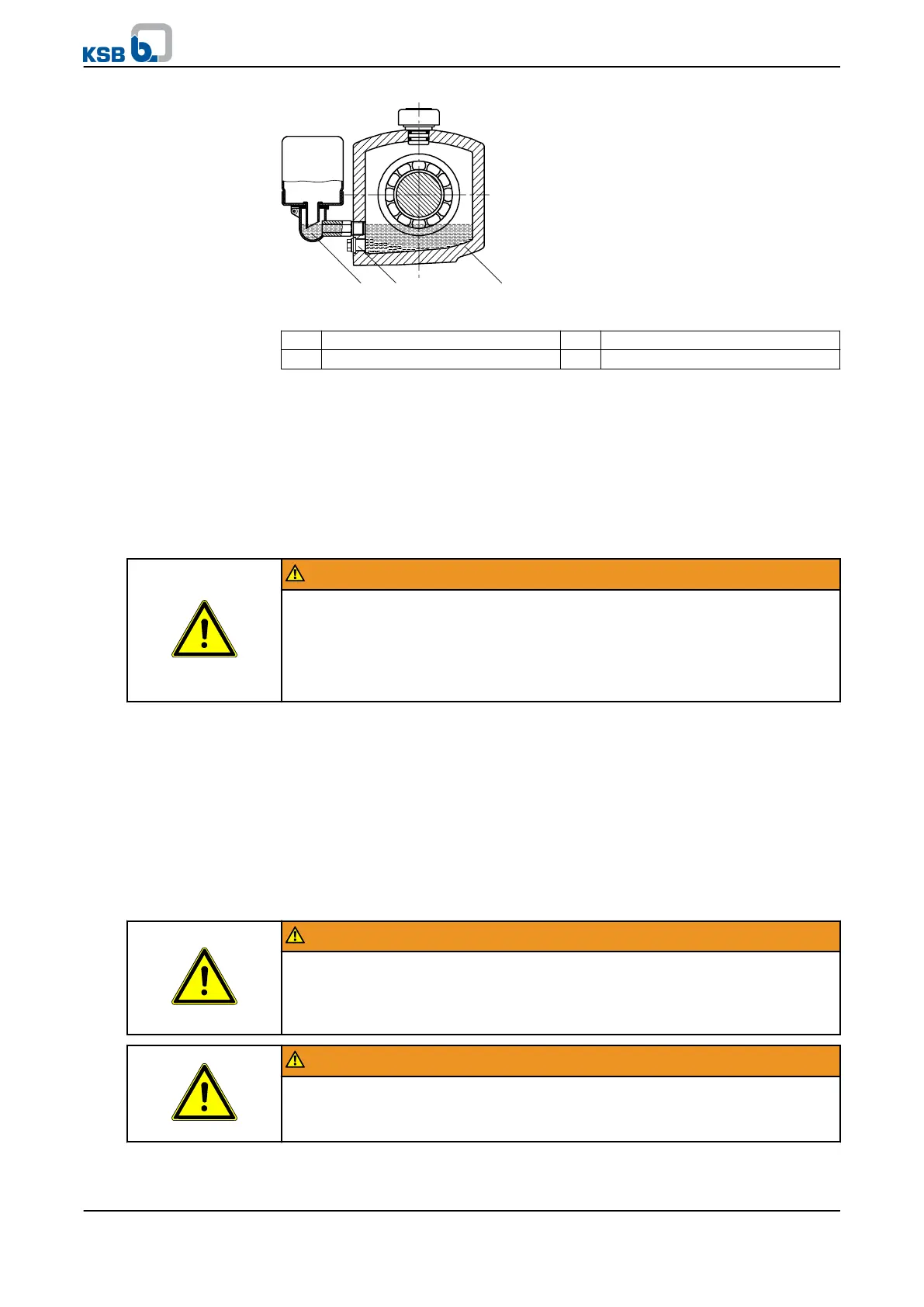

Fig. 19: Bearing bracket with constant-level oiler
1 Constant-level oiler 2 Screwed plug
3 Bearing bracket
✓ A suitable container for the used oil is on hand.
1.
Place the container underneath the screwed plug.
2. Undo the screwed plug (2) at the bearing bracket (3) and drain the oil.
3. Once the bearing bracket (3) has been drained, re-insert and re-tighten the
screwed plug (2).
4. Re-fill with oil.
7.3 Drainage/disposal
WARNING
Fluids posing a health hazard
Hazardous to persons and the environment!
▷ Collect and properly dispose of flushing liquid and any fluid residues.
▷ Wear safety clothing and a protective mask, if required.
▷ Observe all legal regulations on the disposal of fluids posing a health hazard.
If the fluids handled by the pump (set) leave residues which might lead to corrosion
when coming into contact with atmospheric humidity, or which might ignite when
coming into contact with oxygen, the pump (set) must be flushed through,
neutralised, and blown through with anhydrous gas for drying purposes.
Use connection 6B to drain the fluid handled (see auxiliary connections).
7.4 Dismantling the pump set
7.4.1 General notes/Safety regulations
WARNING
Unqualified personnel performing work on the pump (set)
Risk of personal injury!
▷ Always have repair and maintenance work performed by specially trained,
qualified personnel.
WARNING
Hot surface
Risk of personal injury!
▷ Allow the pump set to cool down to ambient temperature.
Observe the general safety instructions and information. (⇨ Section 7.1 Page 46)
