13 SERVICE WORK ON THE CHASSIS 108
S00348-10

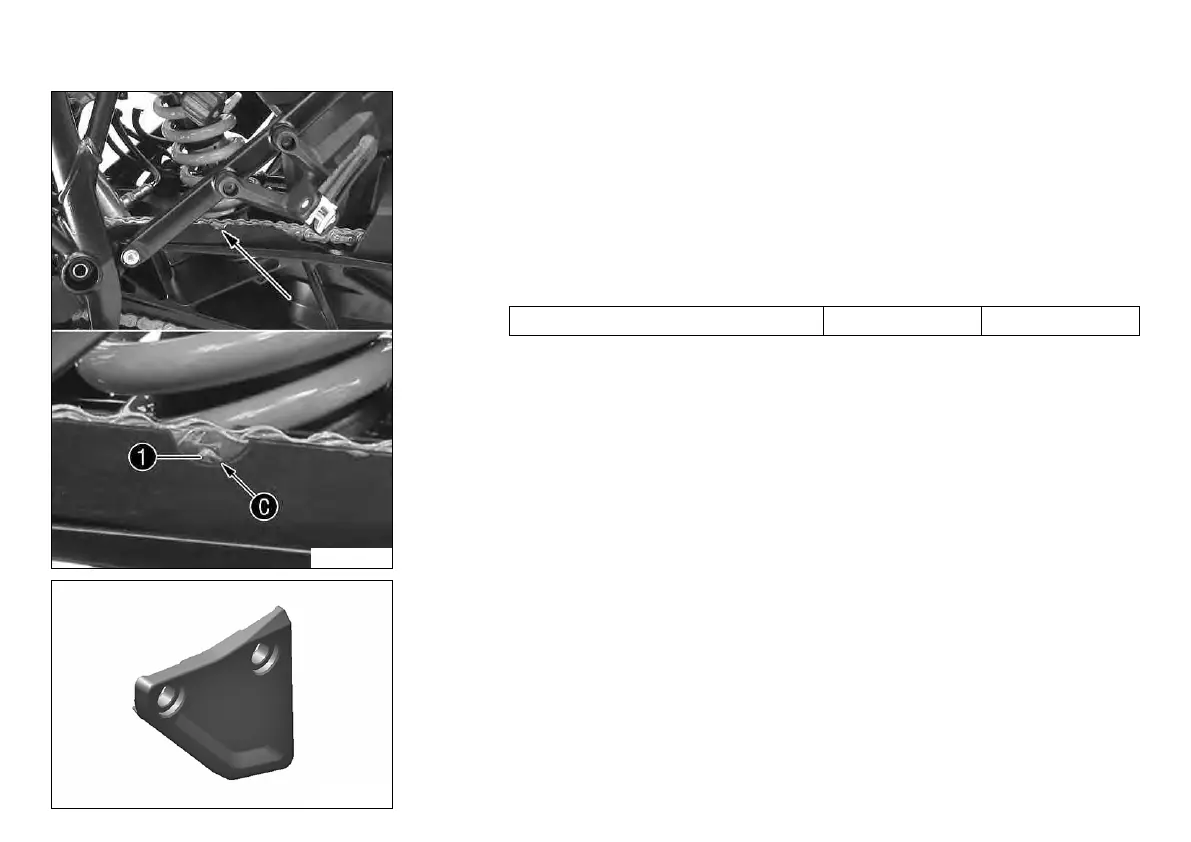

– Check the chain sliding guard for wear at the cutout.
»
If rivet
1
of the chain is no longer visible at the lower edge
C
of the recess of the
chain sliding guard:
–
Change the chain sliding guard. x
– Check the chain sliding guard for tightness.
» If the chain sliding guard is loose:
– Tighten the chain sliding guard.
Guideline
Screw, chain sliding guard M5 5 Nm (3.7 lbf ft)
401670-01
– Check the chain guide for wear.
» If the chain guide is worn:
–
Change the chain guide. x
– Check the chain guide for tightness.
» If the chain guide is loose:
– Tighten the chain guide.
