8 ERGONOMICS 68

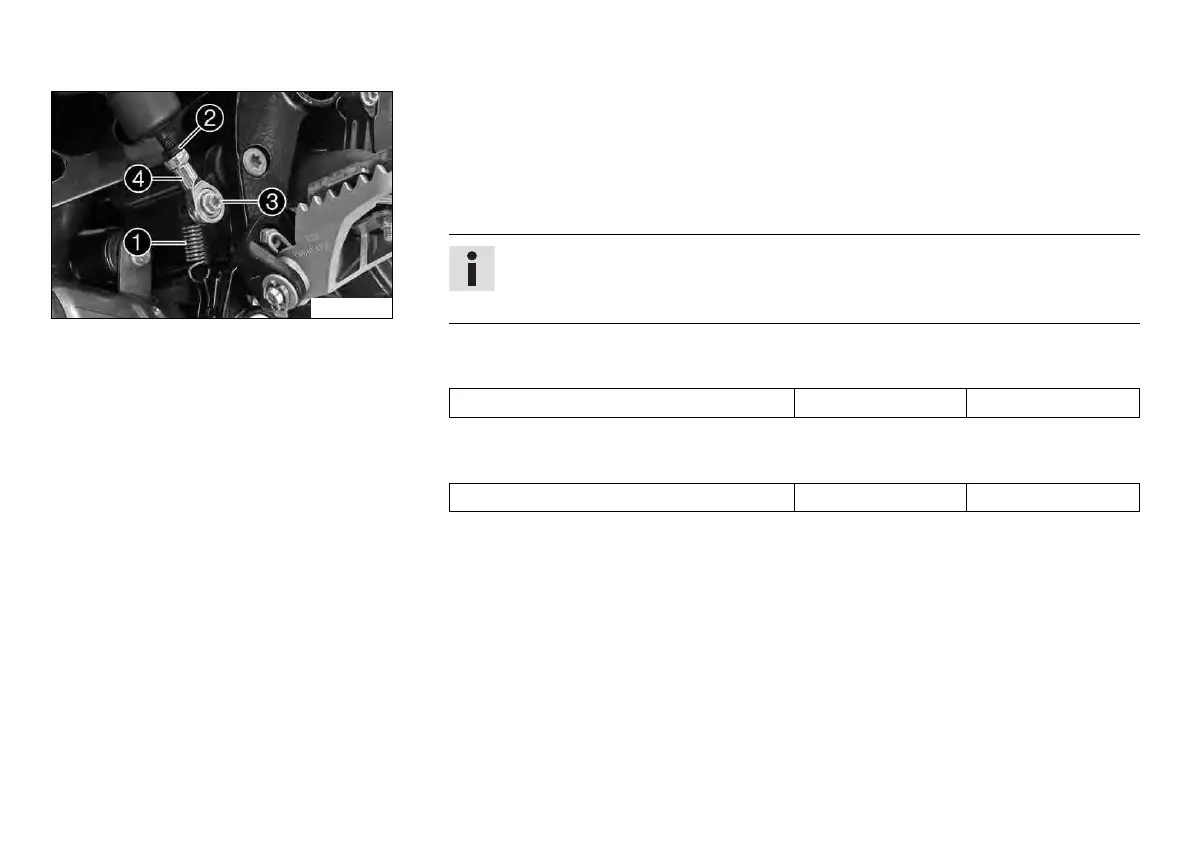

602628-10

–

Disconnect spring

–

Loosen nut

–

Remove screw

– To adjust the basic position of the foot brake lever to individual requirements, turn ball

joint

accordingly.

Info

The range of adjustment is limited.

The screw must be screwed into the ball joint by at least 5 turns.

–

Hold ball joint

and tighten nut

Guideline

Remaining chassis nuts M6 10 Nm (7.4 lbf ft)

–

Mount and tighten screw

Guideline

Remaining chassis nuts M6 10 Nm (7.4 lbf ft)

–

Attach spring
