12 SUSPENSION SETTING 97

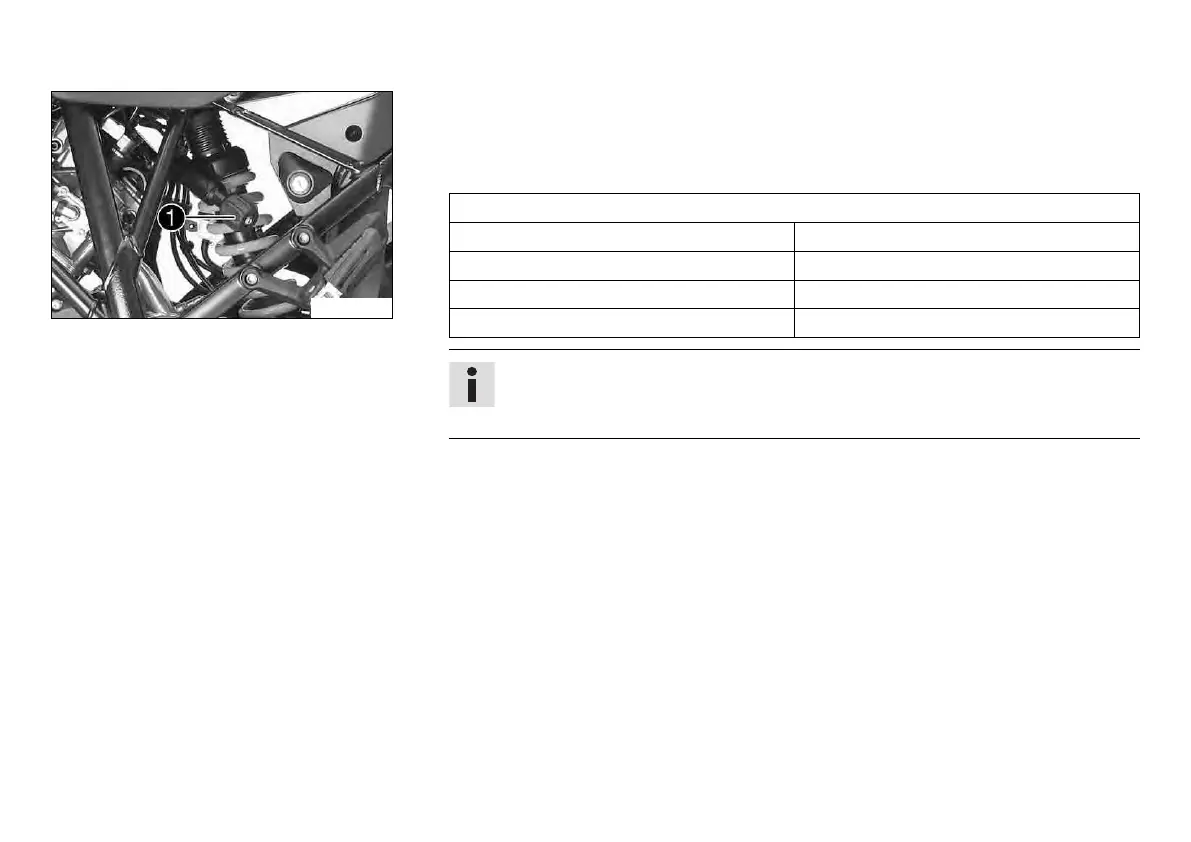

S00371-10

–

Turn handwheel

counterclockwise as far as it will go.

– Turn it clockwise by the number of turns corresponding to the shock absorber type and

use.

Guideline

Spring preload

Comfort 4 turns

Standard 4 turns

Sport 4 turns

Full payload 12 turns

Info

Turn clockwise to increase the spring preload; turn counterclockwise to reduce

the spring preload.

Default Chapter5
- Table of Contents5
1 Means of Representation10
- Symbols Used10
- Formats Used10
2 Safety Advice11
- Use Definition - Intended Use11
- Degrees of Risk and Symbols12
- Tampering Warning12
- Safe Operation13
- Protective Clothing14
- Work Rules14
- Environment14
- Owner's Manual15
3 Important Information16
- Warranty16
- Operating and Auxiliary Substances16
- Spare Parts, Accessories16
- Service16
- Figures17
- Customer Service17
4 View of Vehicle18
- View of Vehicle, Front Left Side (Example)18
- View of Vehicle, Rear Right Side (Example)20
5 Serial Numbers22
- Chassis Number22
- Type Label22
- Key Number23
- Engine Number23
- Fork Part Number24
- Shock Absorber Part Number24
6 Controls26
- Clutch Lever26
- Hand Brake Lever26
- Throttle Grip27
- Switch on the Left Side of the Handlebar27
- Combination Switch27
- Light Switch28
- Hazard Warning Flasher Switch28
- Menu Switch29
- Turn Signal Switch29
- Horn Button30
- Switch on the Right Side of the Handlebar30
- Emergency off Switch30
- Electric Starter Button31
- Ignition/Steering Lock31
- Immobilizer32
- Socket for Electrical Accessories32
- Opening the Filler Cap33
- Closing the Filler Cap34
- Fuel Cocks35
- Opening the Storage Compartment36
- Closing the Storage Compartment36
- Seat Lock37
- Tool Set38
- Grab Handles38
- Luggage Rack Plate39
- Passenger Footrests39
- Shift Lever40
- Side Stand41
- Center Stand (Option: Center Stand)41
7 Combination Instrument42
- Overview42
- Activation and Test42
- Matrix Display43
- Segment Display43
- Indicator Lamps44
- Message on the Matrix Display45
- Shift Warning Light46
- Service Display47
- Matrix Display Menu47
- Favorites47
- Trip 148
- Trip 248
- General Info49
- TPMS" (Optional)49
- Set Favorites50
- Settings50
- Warnings51
- Heat Grip" (Optional)51
- Mtc/Abs52
- Load52
- Damping53
- Drive Mode53
- Menu Overview54
- Language56
- Distance56
- Temp57
- Volume57
- Pressure58
- Clock/Date58
- Fuel Cons59
- Drl59
- Shift Light60
- Quick Shift60
- Heat Grips61
8 Ergonomics62
- Adjusting the Driver's Seat62
- Handlebar Position63
- Adjusting the Handlebar Position63
- Adjusting the Wind Shield64
- Adjusting the Basic Setting of the Clutch Lever66
- Adjusting the Basic Position of the Hand Brake Lever66
- Rider Footrests67
- Adjusting the Footrests67
- Foot Brake Lever69
- Adjusting the Basic Position of the Foot Brake Lever69
- Checking the Basic Position of the Shift Lever71
- Adjusting the Basic Position of the Shift Lever71
9 Preparing for Use73
- Advice on First Use73
- Running in the Engine74
- Loading the Vehicle75
10 Riding Instructions77
- Checks and Maintenance Measures When Preparing for Use77
11 Service Schedule90
- Additional Information90
- Required Work90
- Recommended Work93
12 Suspension Setting94
- Damping" (Option: with EDS)94
- Load" (Option: with EDS)94
- Fork/Shock Absorber95
- Adjusting the Compression Damping of the Fork (Option: Without EDS)95
- Adjusting the Rebound Damping of the Fork (Option: Without EDS)96
- Adjusting the Rebound Damping of the Shock Absorber (Option: Without EDS)97
- Adjusting the Spring Preload of the Shock Absorber (Option: Without EDS)98
- Service Work on the Chassis100
- Raising the Vehicle with the Center Stand (Option: Center Stand)100
- Removing the Vehicle from the Center Stand (Option: Center Stand)100
- Removing the Passenger Seat101
- Mounting the Passenger Seat102
- Removing the Driver's Seat102
- Mounting the Driver's Seat103
- Checking for Chain Dirt103
- Cleaning the Chain104
- Checking the Chain Tension105
- Adjusting the Chain Tension106
- Checking the Chain, Rear Sprocket and Engine Sprocket108
- Checking/Rectifying the Fluid Level of the Hydraulic Clutch111
- Checking the Steering Head Bearing Play112
- Removing the Bottom Triple Clamp Cover113
- Installing the Bottom Triple Clamp Cover113
- Removing the Front Side Cover114
- Installing the Front Side Cover115
- Removing the Mask Spoiler116
- Installing the Mask Spoiler119
- Removing the Front Fender121
- Installing the Front Fender122
- Removing the Tank Cover122
- Installing the Tank Cover124
- Removing the Wind Shield125
- Installing the Wind Shield126
14 Brake System127
- Abs/Antilock Brake System127
- Checking the Brake Discs129
- Checking the Brake Fluid Level of the Front Brake130
- Adding Front Brake Fluid130
- Checking the Front Brake Linings132
- Checking the Rear Brake Fluid Level133
- Adding Rear Brake Fluid134
- Checking the Rear Brake Linings136
15 Wheels, Tires137
- Removing the Front Wheel137
- Installing the Front Wheel139
- Removing the Rear Wheel141
- Installing the Rear Wheel143
- Checking the Rear Hub Rubber Dampers145
- Checking the Tire Condition147
- Checking the Tire Air Pressure148
- Checking Spoke Tension149
16 Electrical System151
- Daytime Running Light151
- Removing the Battery151
- Installing the Battery153
- Recharging the Battery X155
- Changing the Main Fuse159
- Changing the Fuses in the Fuse Box161
- Removing the Headlight Mask with the Headlight164
- Refitting the Headlight Mask with the Headlight165
- Changing the Low Beam Bulb166
- Changing the High Beam Bulb168
- Checking the Headlight Setting170
- Adjusting the Headlight Range170
- Activating/Deactivating the Ignition Key172
17 Cooling System177
- Checking the Coolant Level in the Compensating Tank177
- Correcting the Coolant Level in the Compensating Tank178
18 Engine Tuning180
- Drive Mode180
- Mtc/Motorcycle Traction Control180
19 Service Work on the Engine182
- Checking the Engine Oil Level182
- Changing the Engine Oil and Filter, Cleaning the Oil Screens183
- Adding Engine Oil187
20 Cleaning, Care190
- Cleaning Motorcycle190
- Checks and Maintenance Steps for Winter Operation192
21 Storage193
- Preparing for Use after Storage194
22 Troubleshooting195
23 Technical Data197
- Engine197
- Engine Tightening Torques198
- Capacities201
- Engine Oil201
- Coolant202
- Fuel202
- Chassis202
- Option: with EDS202
- Option: Without EDS202
- Electrical System204
- Option: Without EDS204
- Option: with EDS204
- Tires205
- Fork205
- Option: with EDS205
- Option: Without EDS206
- Shock Absorber207
- Option: with EDS207
- Option: Without EDS207
- Chassis Tightening Torques208
24 Substances212
25 Auxiliary Substances216
26 Standards218
- Index219
