MAINTENANCE WORK ON FRAME AND ENGINE 103
Info

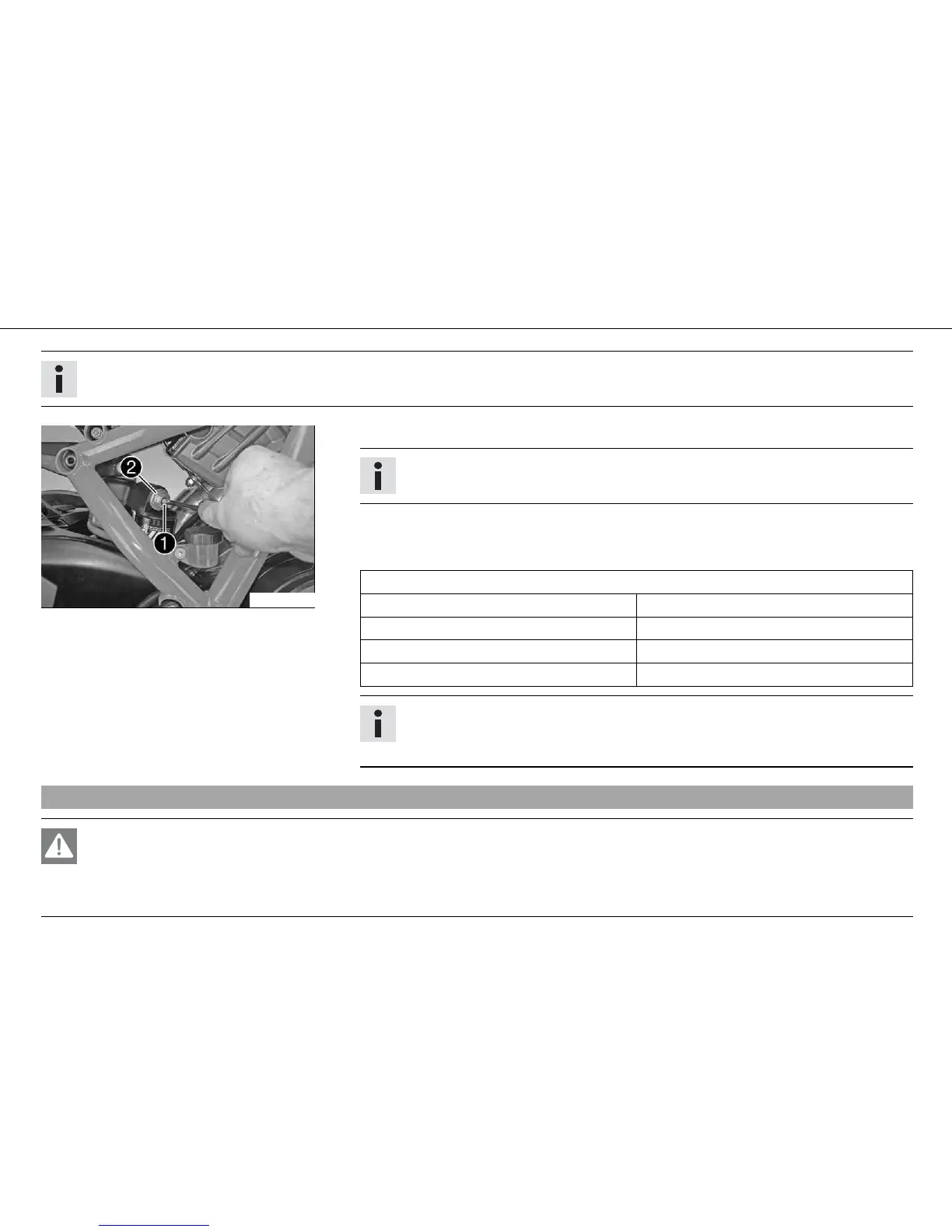

The low-speed setting can be seen during the slow to normal compression of the shock absorber.
100686-10
– Turn adjusting screw clockwise with a screwdriver up to the last perceptible click.
Info
Do not loosen nut !
– Turn back counterclockwise by the number of clicks corresponding to the shock
absorber type.
Guideline
Compression damping, low-speed
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
Full payload 10 clicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce suspension
damping.
9.12Adjusting the high-speed compression damping of the shock absorber
Danger
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM RC8 work-
shop will be pleased to help.)
