MAINTENANCE WORK ON FRAME AND ENGINE 163

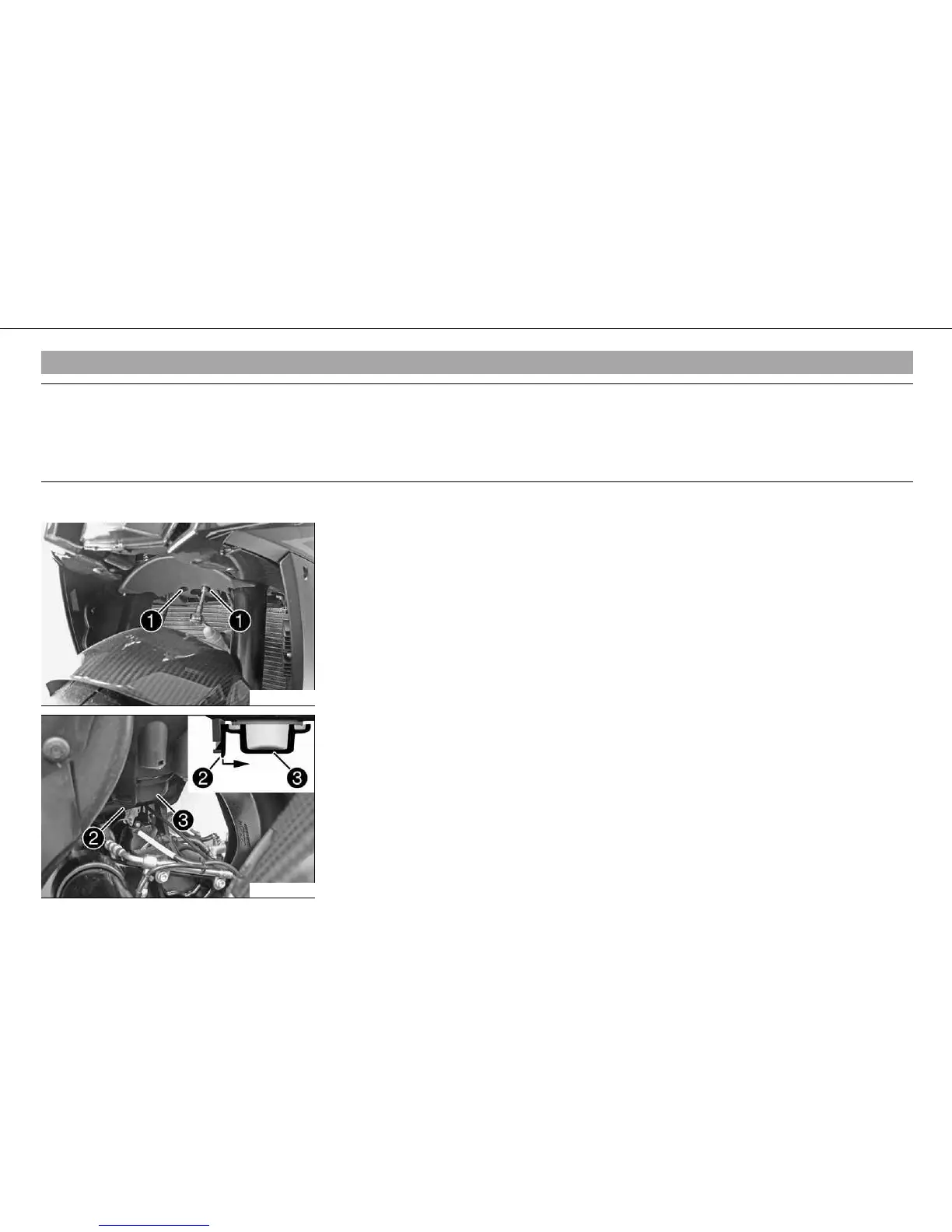

9.61Changing the high beam lamp

Note

Damage to reflector Reduced luminance.

– Grease on the bulb will evaporate due to the heat and be deposited on the reflector. Clean the bulb and keep it free of grease before

mounting.

– Switch off all power consumers and switch off the engine.

100745-10

– Remove screws . Remove cover.

100746-10

– Release the latch .

– Remove the lamp cover .
