MAINTENANCE WORK ON FRAME AND ENGINE 148
– Mount the dust cap.
Info
The rubber seal in the dust cap prevents air leaking out of the tire if the valve is
defective.

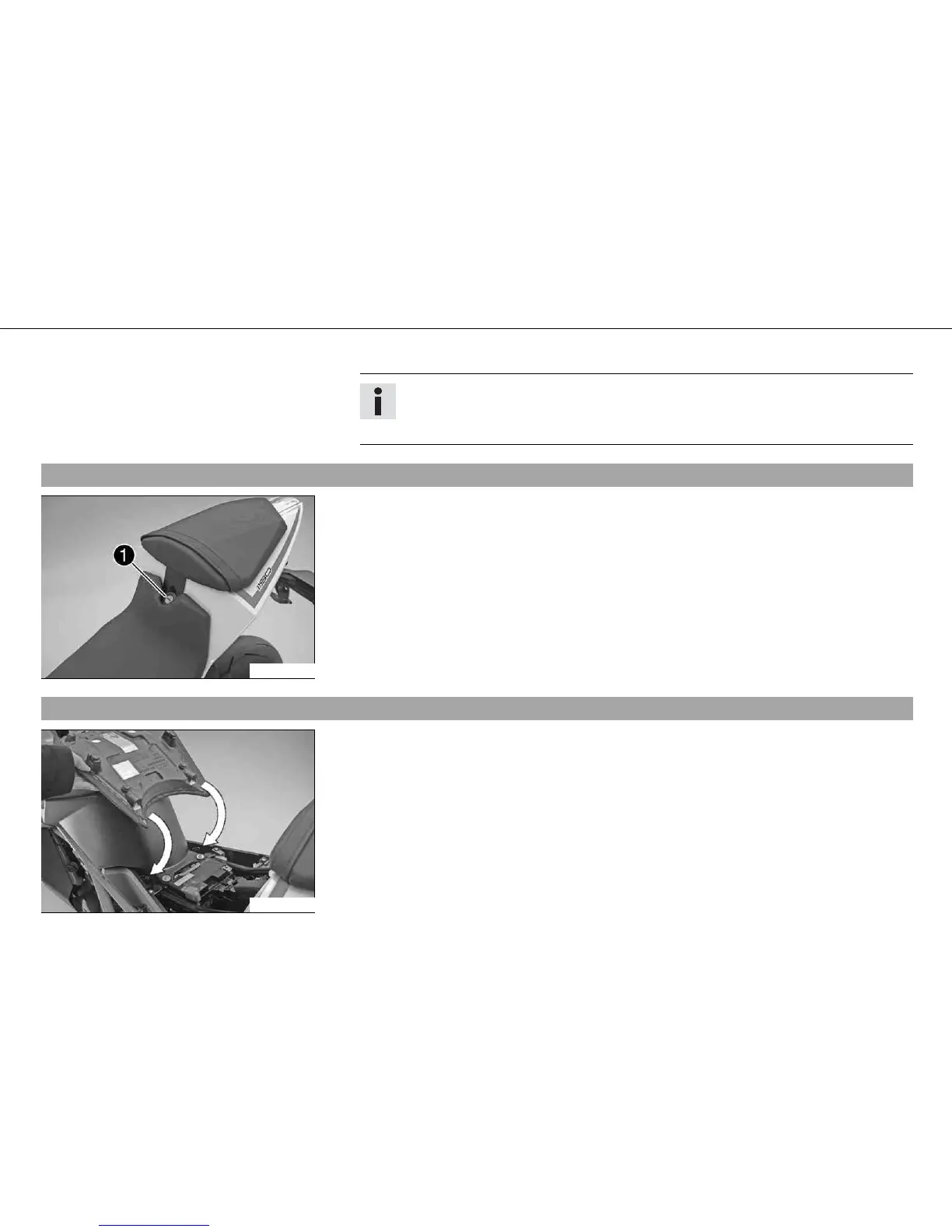

9.50Removing the seat
100669-10
– Insert the ignition key in the seat lock and turn it clockwise.
– Raise the rear of the seat, push it towards the rear, and remove it upwards.
9.51Fitting the seat
100730-10
– Position the recesses of the seat to the lugs on the frame, lower the rear end and simul-
taneously push it forward.
– Lock the seat by turning the ignition key in the seat lock.
– Remove the ignition key from the seat lock.
– Finally, check that the seat is correctly mounted.
