MAINTENANCE WORK ON FRAME AND ENGINE 181
100759-10

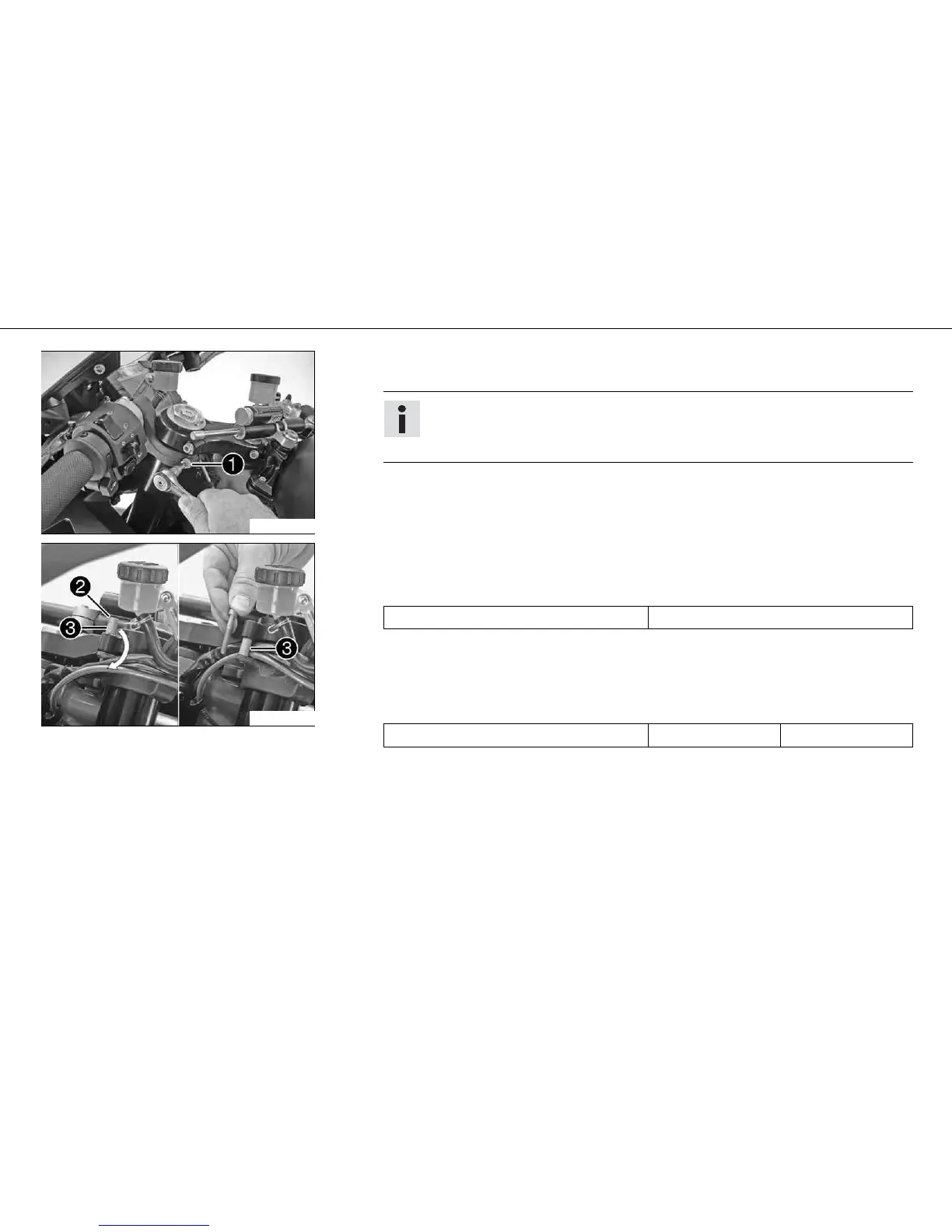

Adjusting the low position of the handlebar stubs:
– Loosen screw .
Info
Loosen the screw several turns to prevent damage to the fork lacquer when
moving the handlebar stub.
100760-10
– Remove screw with distance sleeve .
– Carefully shift the handlebar stub by the length of the distance sleeve.
Guideline
Long distance sleeve 15 mm (0.59 in)
– Lay all cables between the upper triple clamp and the handlebar stub.
– Position the distance sleeves.
– Mount and tighten the screw.
Guideline
Remaining frame bolts M5 5 Nm (3.7 lbf ft)
