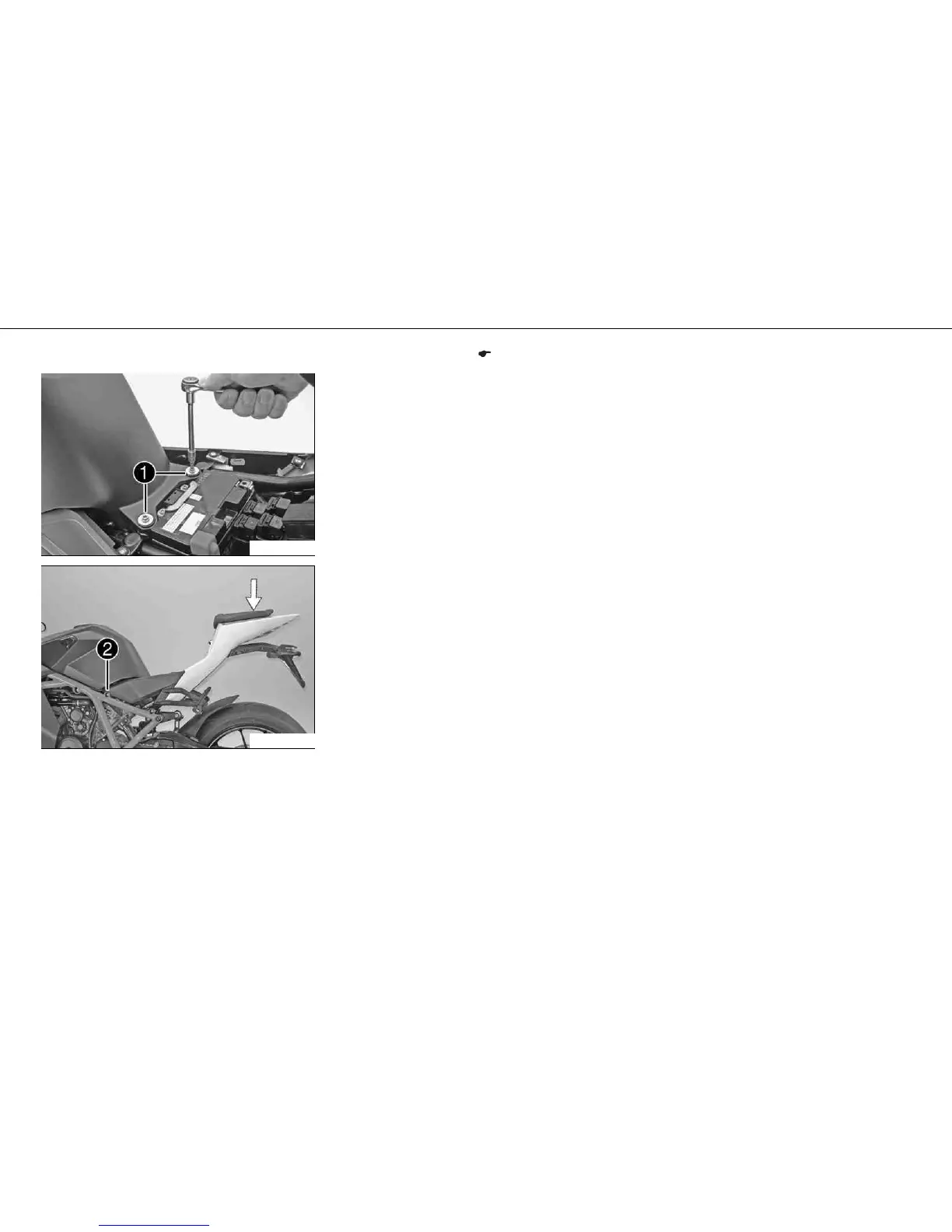

MAINTENANCE WORK ON FRAME AND ENGINE 183

– Remove the seat. ( p. 148)

100762-10

– Remove screws  with the bushings.

100763-10

Setting a higher seat position:

– Remove screw  with washer on the left and right sides of the vehicle.

– Push the rear end down until the drill holes of the frame are level with the lower

front drill holes of the rear.
