KTM 125 SX 2023 User Manual

COOLING SYSTEM 14
101
Warning
Danger of poisoning Coolant is harmful to health.
– Keep coolant out of the reach of children.
– Do not allow coolant to come into contact with the skin, the eyes and clothing.
– Consult a doctor immediately if coolant is swallowed.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water and consult a doctor immediately if coolant gets into the eyes.
– Change clothing if coolant spills onto your clothing.

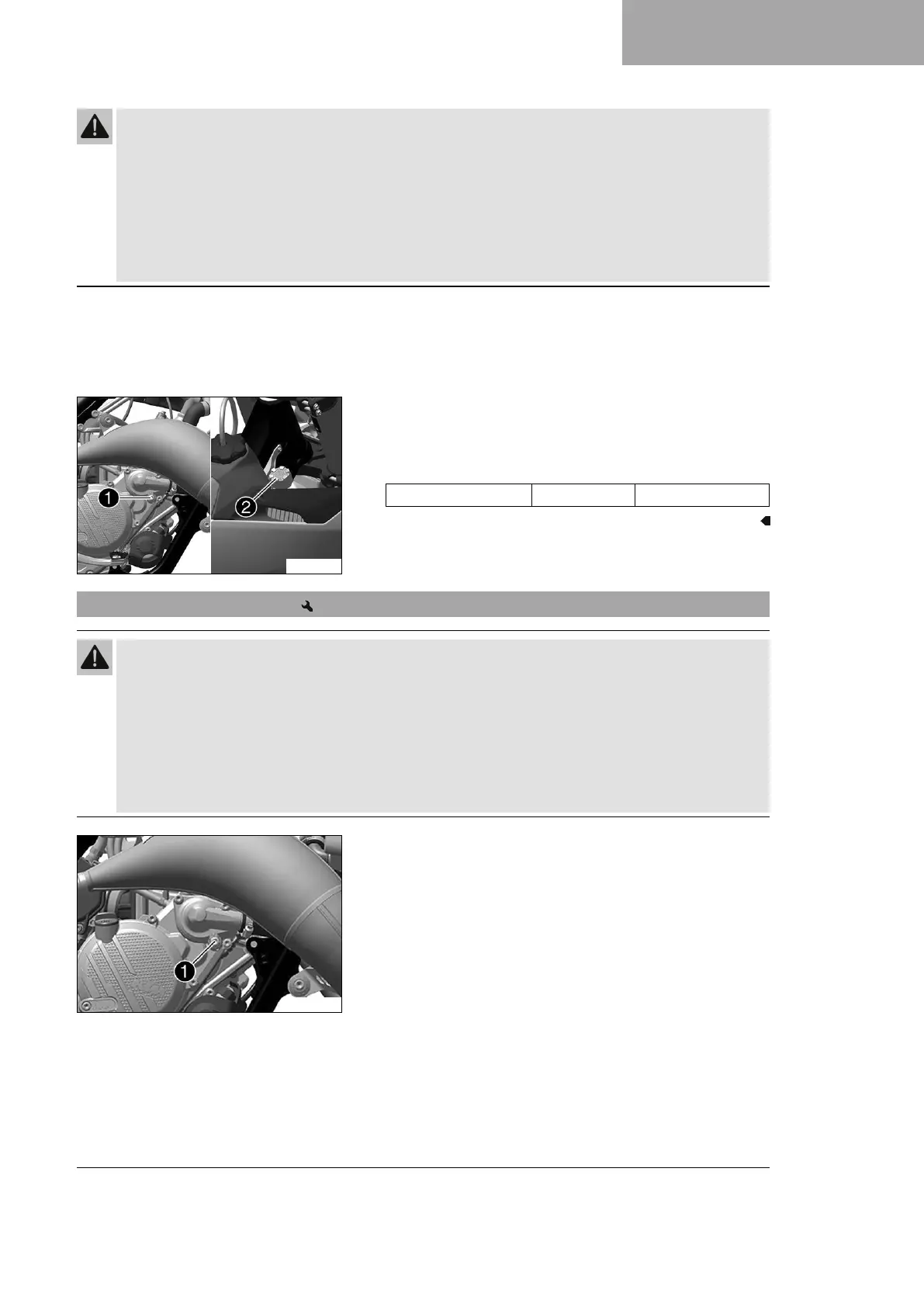

Condition
The engine is cold.
– Position the motorcycle upright.
– Place an appropriate container under the water pump cover.
S05545-11
–
Remove screw
1
. Take off radiator cap
2
.
– Completely drain the coolant.
–
Mount and tighten screw
1
with a new seal ring.
Guideline
Coolant drain plug M6 10 Nm (7.4 lbf ft)
14.5 Refilling with coolant
Warning
Danger of poisoning Coolant is harmful to health.
– Keep coolant out of the reach of children.
– Do not allow coolant to come into contact with the skin, the eyes and clothing.
– Consult a doctor immediately if coolant is swallowed.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water and consult a doctor immediately if coolant gets into the eyes.
– Change clothing if coolant spills onto your clothing.
S05546-10
Main work
–
Make sure that screw
1
is tightened.
– Position the motorcycle upright.
