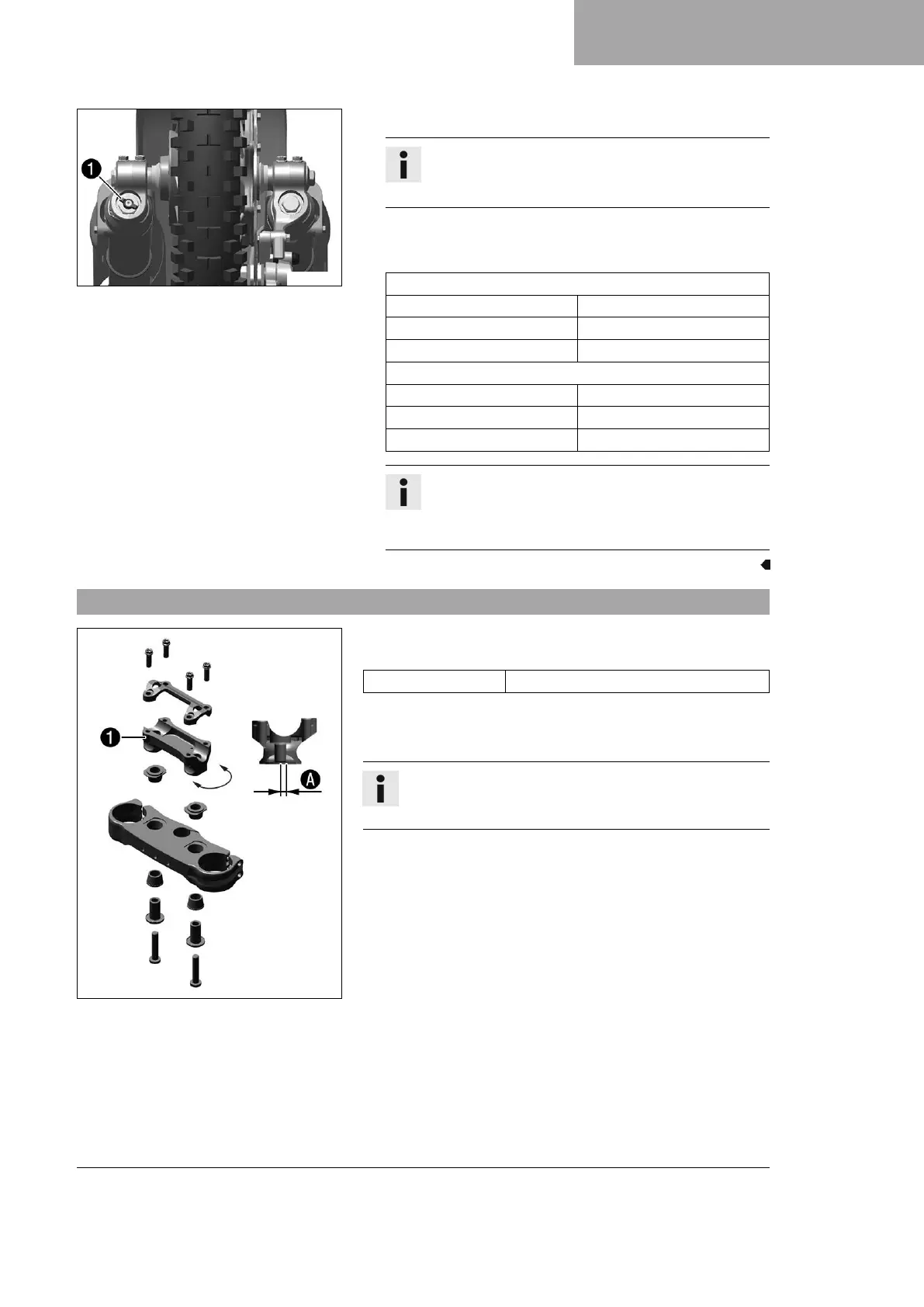

TUNING THE CHASSIS 10
45
F03633-10
–
Turn adjusting screw
1
clockwise all the way.
Info
Adjusting screw
1
is located at the lower end of the
right fork leg.
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Rebound damping (125 SX EU)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Rebound damping (125 XC US)
Comfort 23 clicks
Standard 18 clicks
Sport 13 clicks
Info
Turn clockwise to increase the damping; turn counter-
clockwise to reduce damping when the shock absorber
rebounds.
10.16 Handlebar position
A01168-10
The holes on the handlebar support
1
are placed at a distance
of
A
from the center.
Hole distance A 3.5 mm (0.138 in)
The handlebar can be mounted in 2 different positions. This
allows the handlebar to be mounted in the most comfortable
position for the rider.
Info
In addition, the handlebar can be mounted rigidly or on a
rubber bearing.

KTM 125 SX 2023 Specifications

General

Displacement	124.8 cm³
Bore x Stroke	54 mm x 54.5 mm
Starter	Electric starter
Transmission	6-speed
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	375 mm
Seat Height	950 mm
Weight (without fuel)	87.5 kg
Cooling	Liquid cooled
Front Tire	80/100-21"
Rear Tire	100/90-19"
Front Brake Diameter	260 mm
Rear Brake Diameter	220 mm
Engine Type	Single-cylinder, 2-stroke
Frame	Central tube frame made of chrome molybdenum steel
Fuel Tank Capacity	7.2 liters
