TUNING THE CHASSIS 10
47
A01170-10

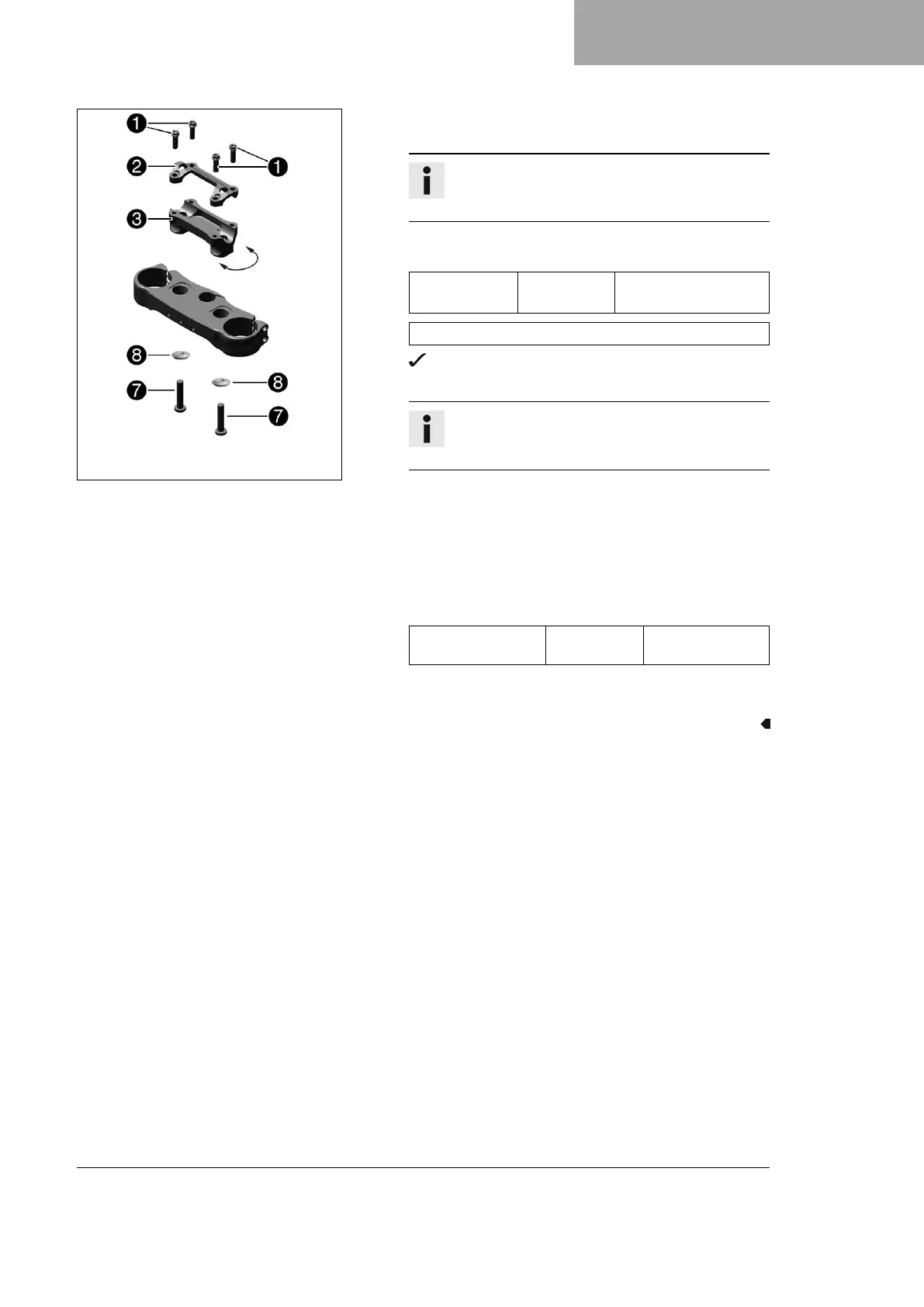

Adjusting the handlebar position with the handlebar clamp
– Place the handlebar support in the required position.
Info
The handlebar support is longer and higher on one
side.
–
Mount and tighten the screws
7
with the bushings
8
.
Guideline
Screw, handle-
bar support
M10 40 Nm (29.5 lbf ft)
Loctite
®
243™
Rigid handlebar support bushing (A46001038010)
The conical side of bushing faces downwards.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Position handlebar clamp
2
.
–
Mount screws
1
, but do not tighten yet.
–
First bolt the handlebar clamp with screws
1
onto the
longer, higher side of the handlebar supports so that both
parts touch.
–
Tighten screws
1
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm
(14.8 lbf ft)
Finishing work
– Mount the handlebar cushion.

KTM 125 SX 2023 Specifications

General

Displacement	124.8 cm³
Bore x Stroke	54 mm x 54.5 mm
Starter	Electric starter
Transmission	6-speed
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	375 mm
Seat Height	950 mm
Weight (without fuel)	87.5 kg
Cooling	Liquid cooled
Front Tire	80/100-21"
Rear Tire	100/90-19"
Front Brake Diameter	260 mm
Rear Brake Diameter	220 mm
Engine Type	Single-cylinder, 2-stroke
Frame	Central tube frame made of chrome molybdenum steel
Fuel Tank Capacity	7.2 liters
