11 SERVICE WORK ON THE CHASSIS 45
101733-10

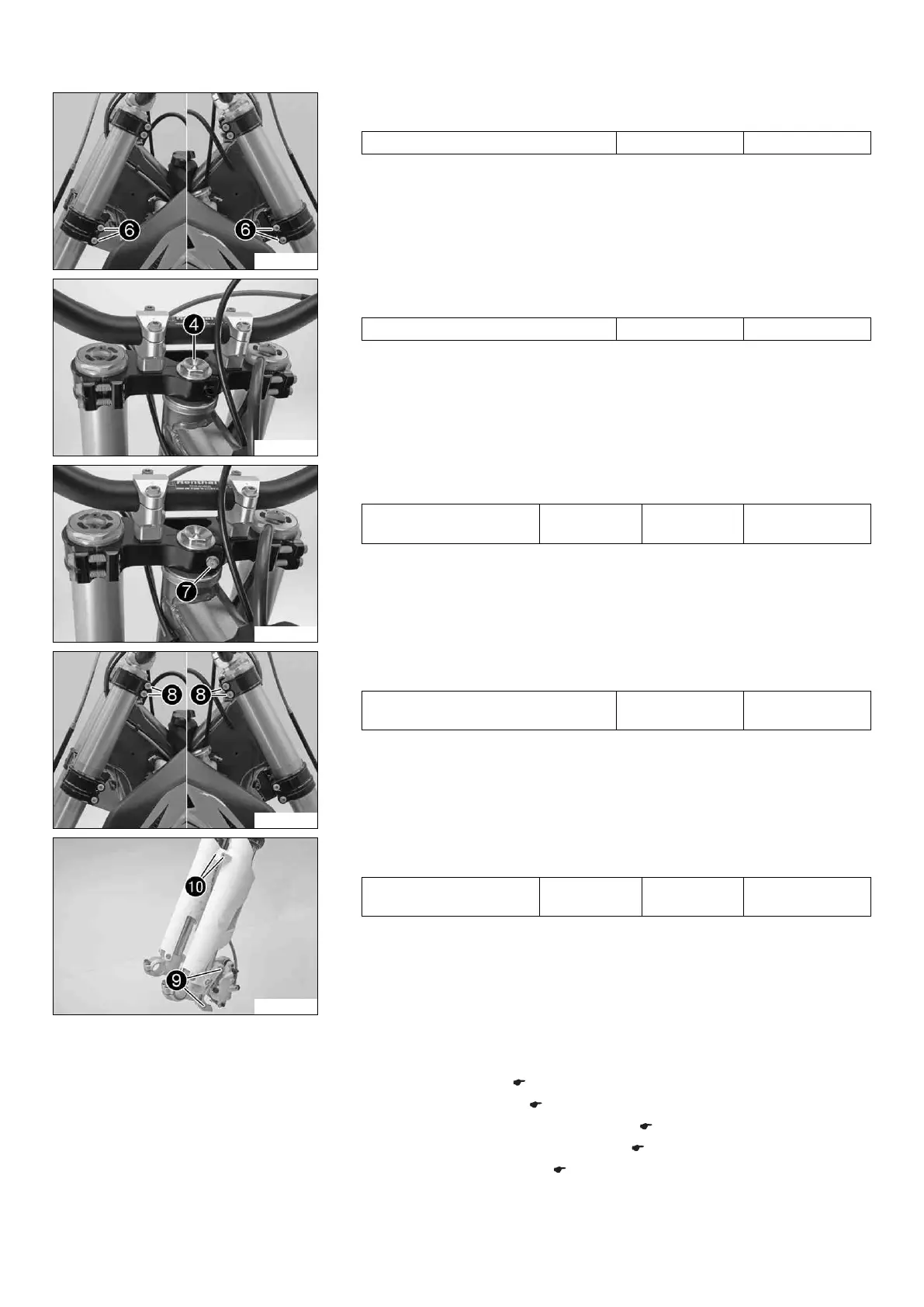

– Fully tighten screws 6.
Guideline
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft)
101676-10
– Tighten screw 4.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
101677-10
– Mount and tighten screw 7.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
101733-11
– Tighten screws 8.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
800220-10
– Position the brake caliper. Mount and tighten screws 9.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Position the brake line and clamp. Mount and tighten screws bk.
Finishing work
– Check that the wiring harness, cables, and brake and clutch lines can move freely
and are routed correctly.
– Install the front fender. ( p. 48)
–
Install the front wheel. x ( p. 73)
– Check the play of the steering head bearing. ( p. 46)
– Remove the motorcycle from the lift stand. ( p. 40)
– Install the start number plate. ( p. 47)
– Mount the handlebar cushion.
