14 ELECTRICAL SYSTEM 79
101395-10

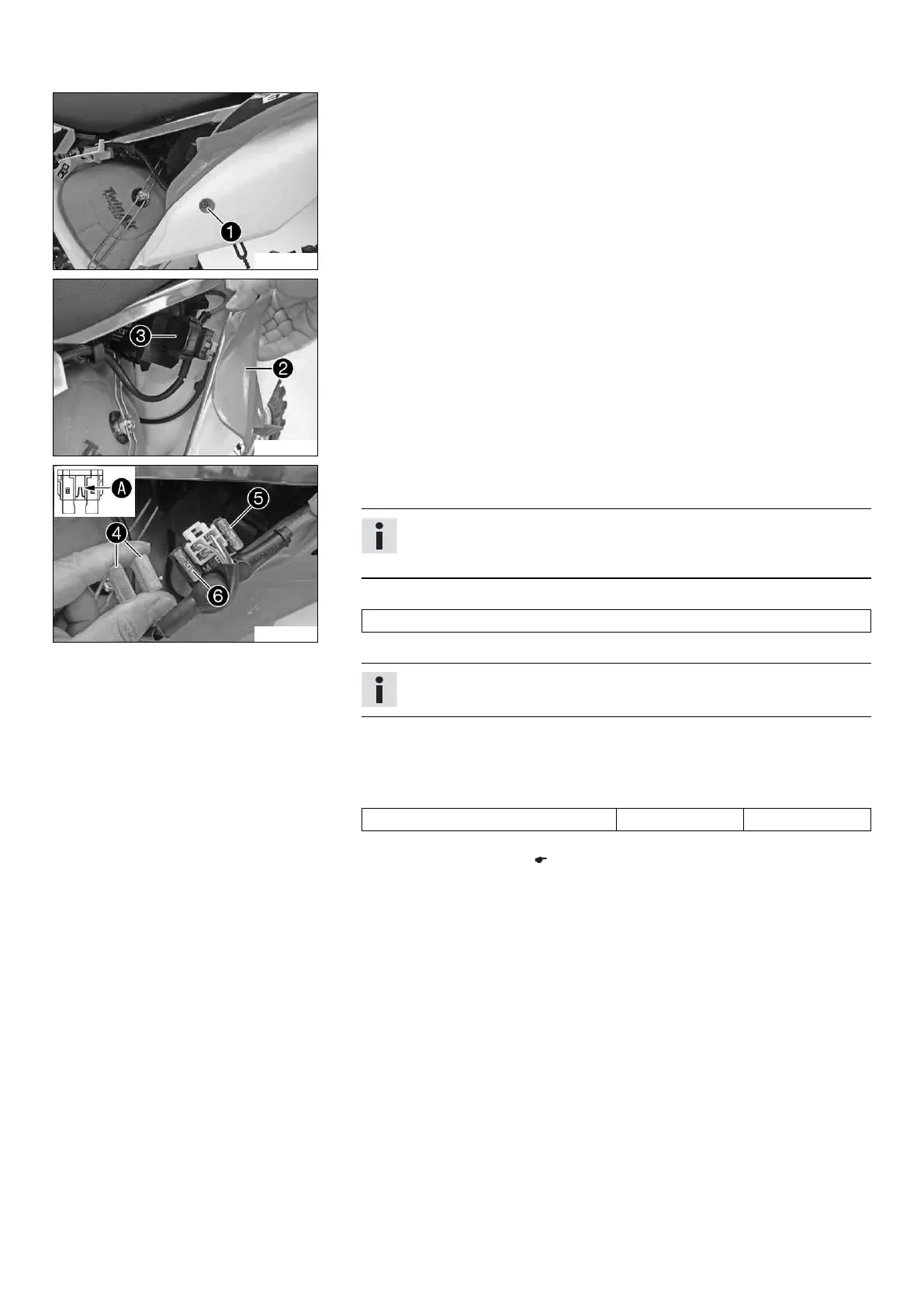

Main work
– Remove screw 1.
101396-10
– Lift rear fairing 2 slightly and pull starter relay 3 out of the holder.
101397-10
– Remove protection caps 4.
– Remove the faulty main fuse 5.
Info
A defective fuse can be identified by the burned-out fuse wire A.
A reserve fuse 6 is located in the starter relay.
– Install a new main fuse.
Fuse (58011109110)
– Check that the electrical equipment is functioning properly.
Tip
Insert the spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and lay the cable.
– Position the rear fairing. Mount and tighten the screw.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the air filter box lid. ( p. 50)
