8 ERGONOMICS 67

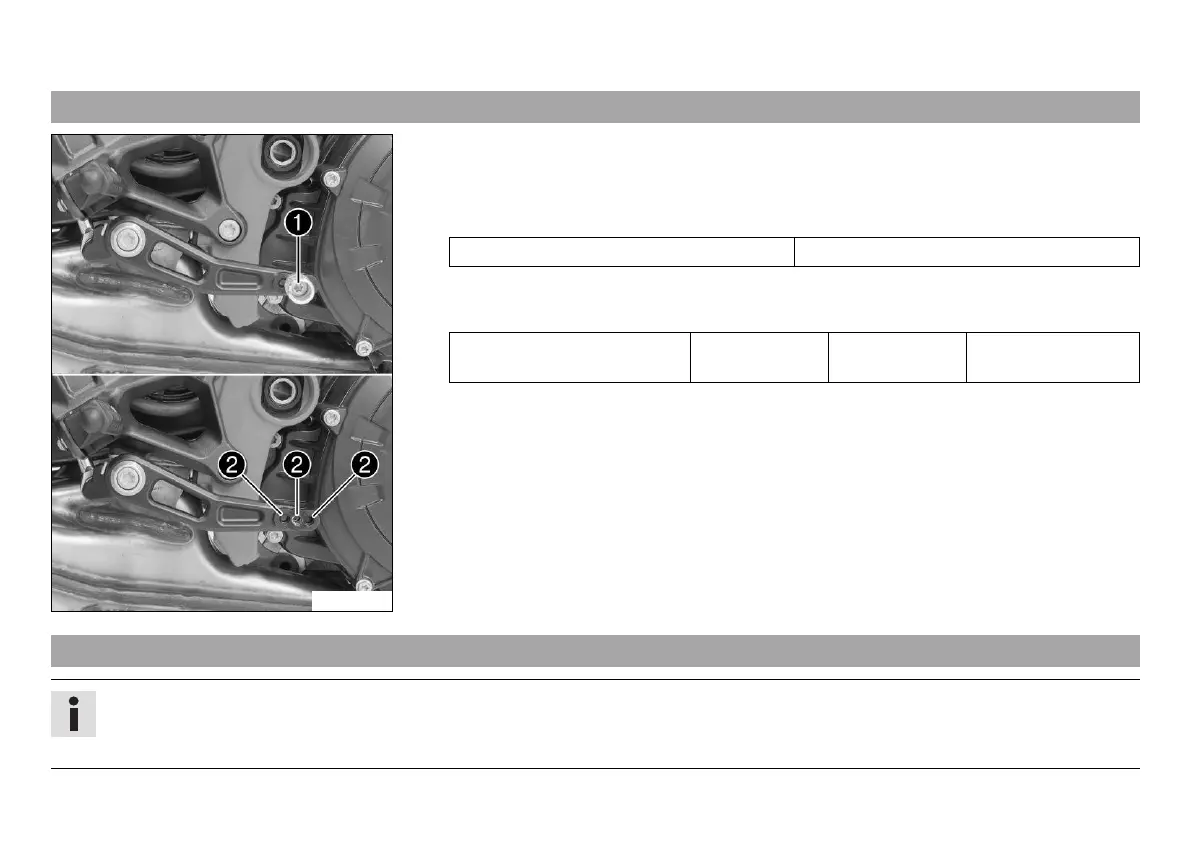

8.6 Setting the step plate of the foot brake lever
L01461-10
–
Remove screw
together with the foot plate of the foot brake lever.
– To adjust the length of the foot brake lever, position the step plate of the foot brake
lever using screw
in a drill hole
.
Guideline
Standard Middle hole
–
Tighten screw
.
Guideline
Screw, step plate for foot
brake lever
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
8.7 Checking the basic position of the shift lever
Info
When driving, the shift lever must not touch the rider's boot when in the basic position.
When the shift lever keeps touching the boot, the transmission will be subject to an excessive load.
