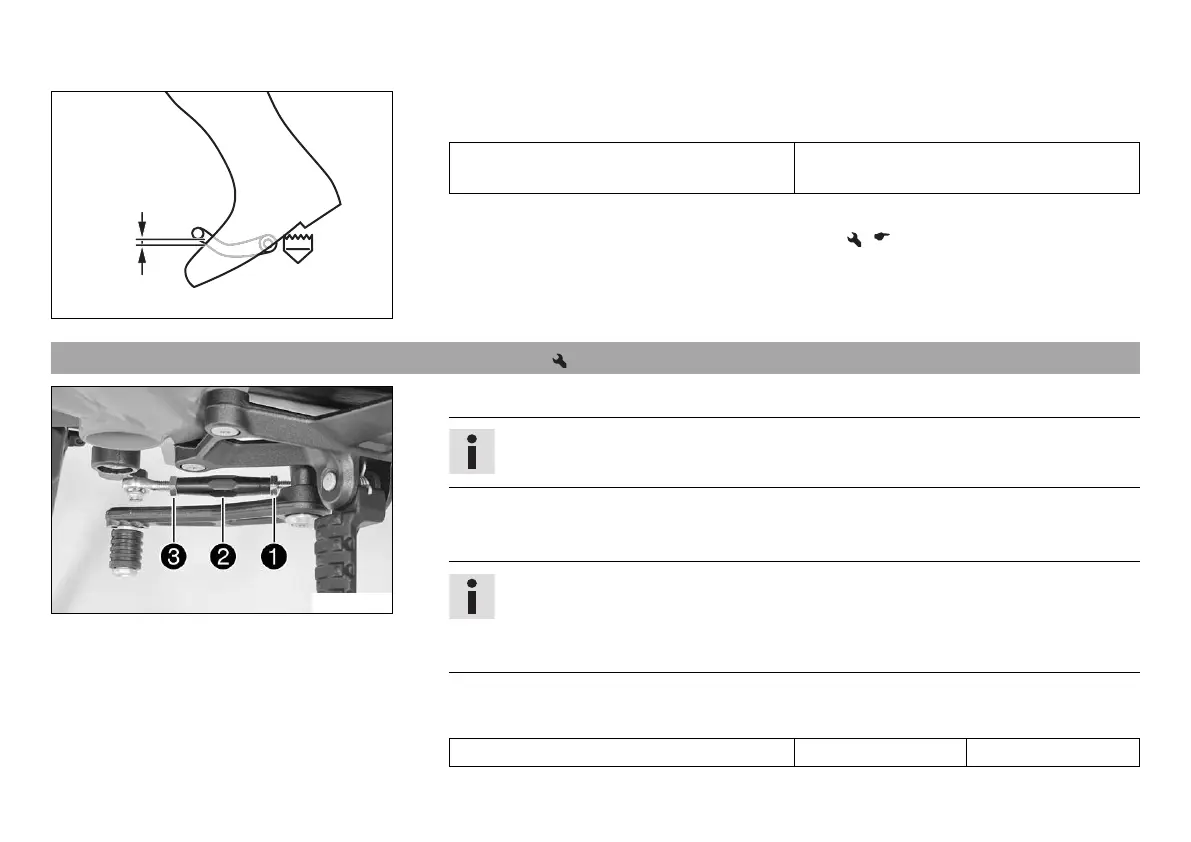

8 ERGONOMICS 68
400692-10
–
Sit on the vehicle in the riding position and determine distance
between the upper
edge of your boot and the shift lever.
Distance between shift lever and upper
edge of boot
10… 20 mm (0.39… 0.79 in)
» If the distance does not meet specifications:
– Adjust the basic position of the shift lever. ( p. 68)
8.8 Adjusting the basic position of the shift lever
L01417-10
–
Loosen nut
, holding the threaded rod
.
Info
Nut
has a left-handed thread.
–
Loosen nut
, holding the threaded rod
.
–
Turn threaded rod
to adjust the shift lever.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any other vehicle components
during the shift procedure.
–
Tighten nut
, holding the threaded rod
.
Guideline
Nut, shift rod M8 12 Nm (8.9 lbf ft)
