14 ELECTRICAL SYSTEM 122

601914-10

–

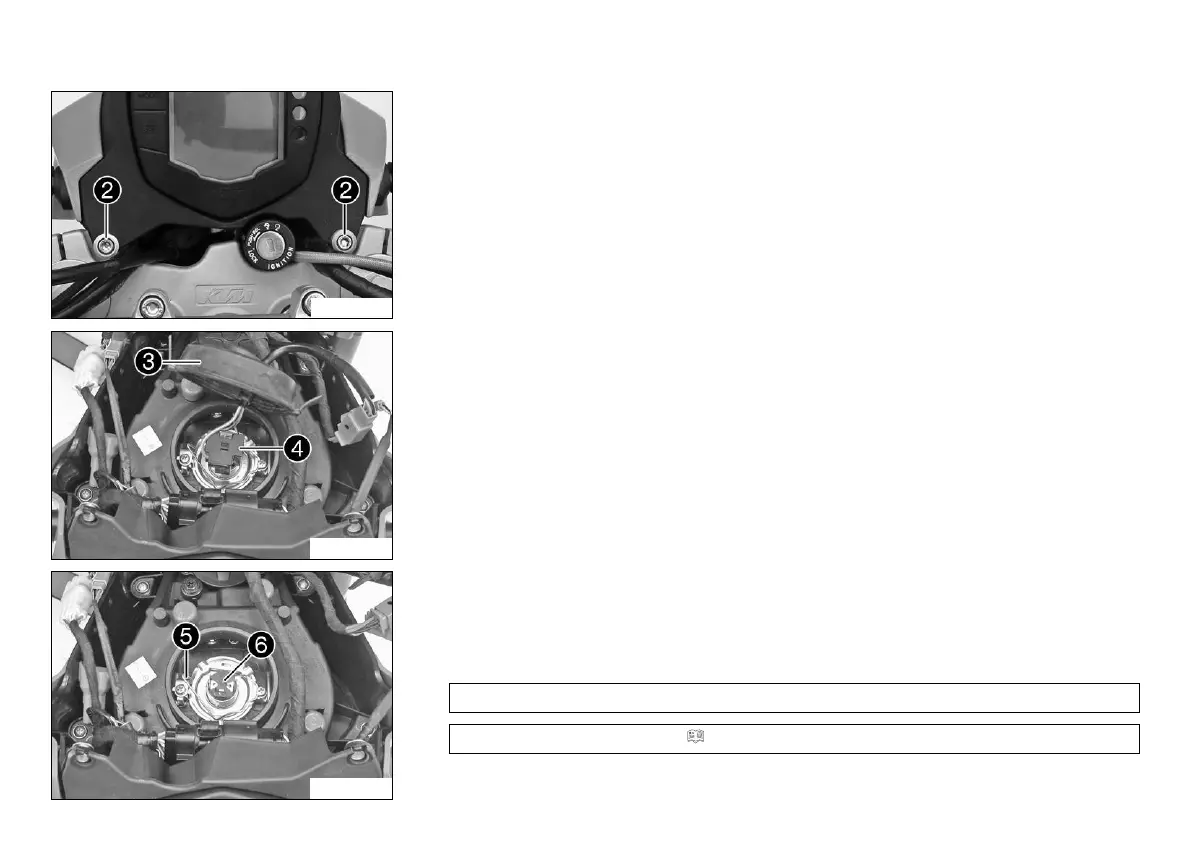

Remove screws

– Lift the headlight mask slightly and swing forward.

B00760-10

–

Remove protection cap

–

Unplug connector

B00761-10

–

Detach retaining clamp

–

Remove headlight bulb

– Position the new headlight bulb in the headlight housing.

Guideline

Insert the headlight bulb so that the catches latch into the recesses.

Headlight (H4/socket P43t) ( p. 165)

–

Attach retaining clamp
