10 TUNING THE CHASSIS 76

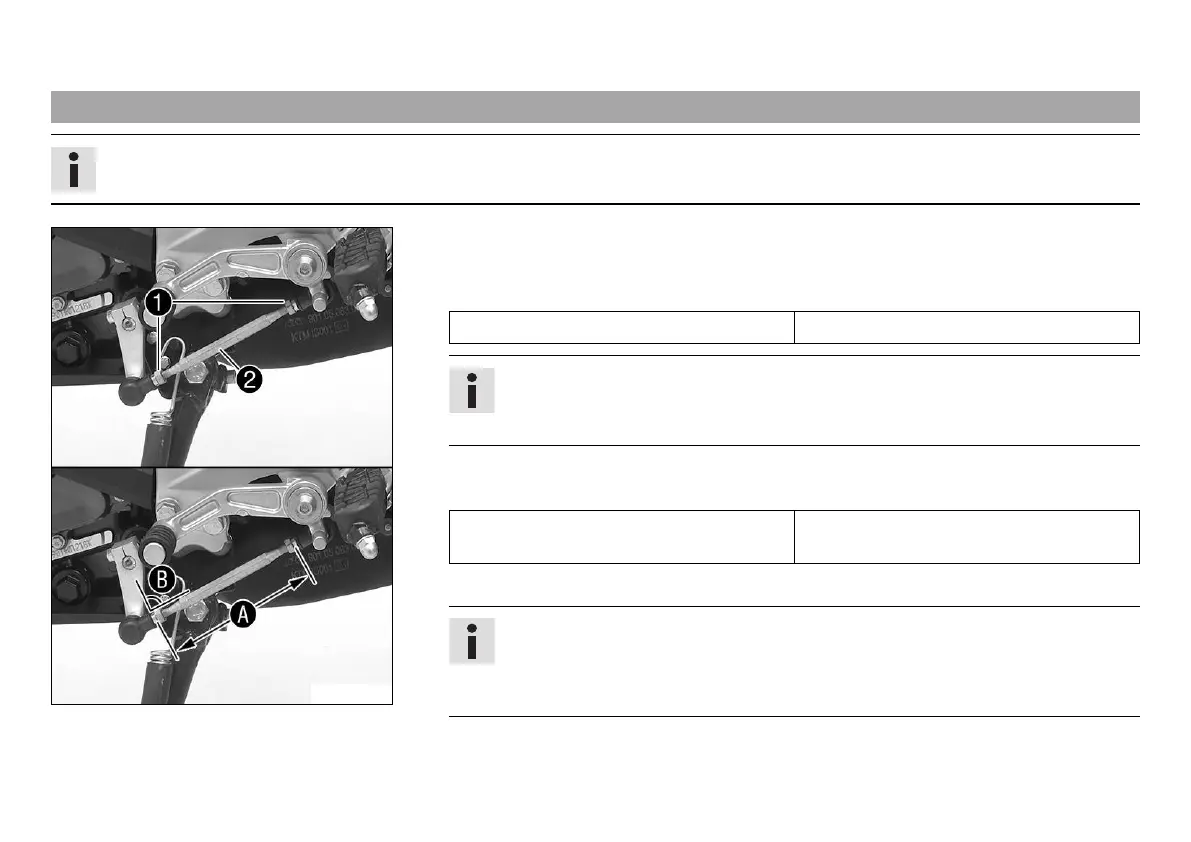

10.2 Adjusting the shift lever
Info
The adjustment range of the shift lever is limited.
S00667-10
–
Loosen nuts
1
.
–
Adjust the shift lever by turning shift rod
2
.
Guideline
Shift rod adjustment range
A
110… 122 mm (4.33… 4.8 in)
Info
Make the same adjustments on both sides.
At least five screw threads must be screwed into the seating.
–
Check adjusting angle
B
.
Guideline
Adjusting angle
B
shift rod, deflector,
shift lever
90°
–
Tighten nuts
1
.
Info
After the nuts have been tightened, the bearings of the shift rod must be cen-
trally and identically aligned to each other in order to ensure freedom of move-
ment in the bearing shells.
– Check the shift lever to ensure it is functioning properly and can move freely.
