11 SERVICE WORK ON THE CHASSIS 82

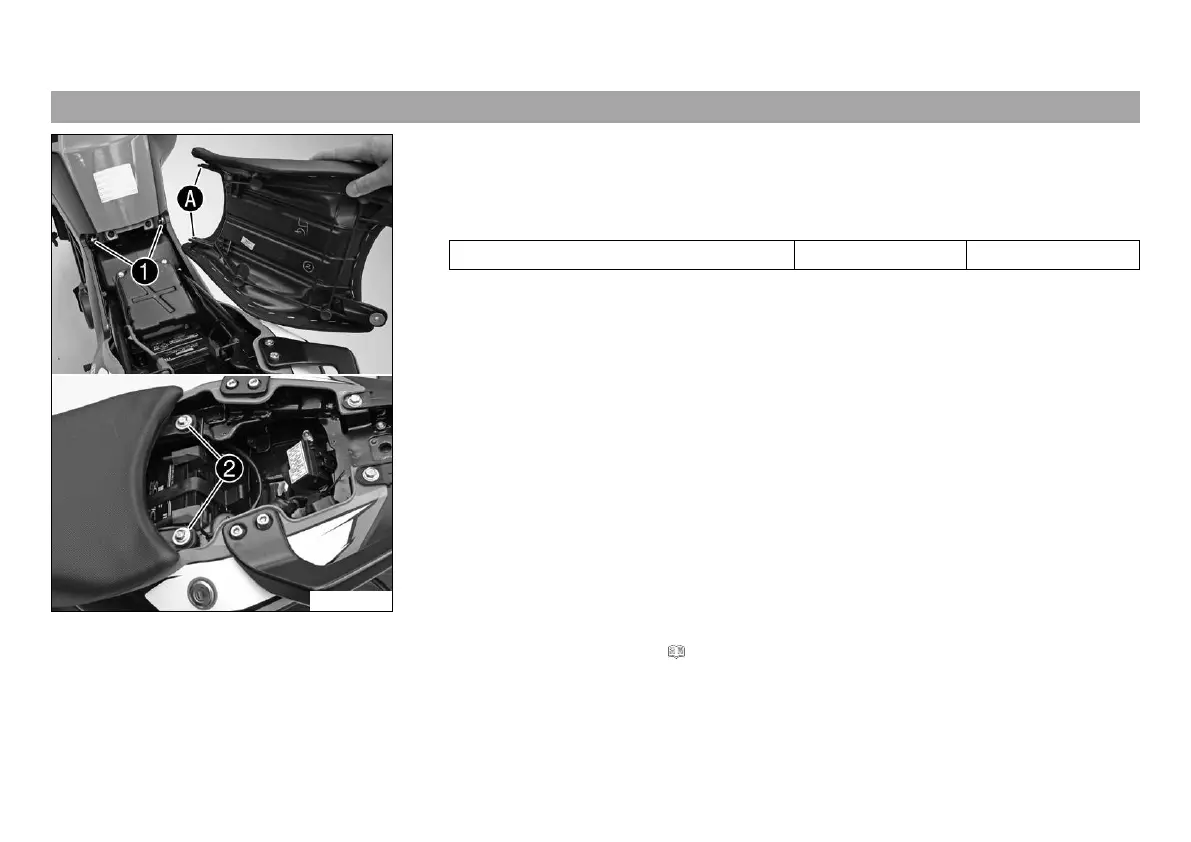

11.8 Mounting the seat

B00727-10

Main work

–

Attach seat recesses

at screws

and lower at the rear.

–

Mount and tighten screws

Guideline

Screw, seat M6 10 Nm (7.4 lbf ft)

Finishing work

– Mount the passenger seat. ( p. 81)

Default Chapter5
- Table of Contents5
1 Means of Representation9
- Symbols Used9
- Formats Used10
2 Safety Advice11
- Use Definition11
- Degrees of Risk and Symbols12
- Tampering Warning12
- Safe Operation13
- Protective Clothing14
- Work Rules14
- Environment14
- Owner's Manual15
3 Important Notes16
- Manufacturer and Implied Warranty16
- Operating and Auxiliary Substances16
- Spare Parts, Accessories16
- Service17
- Figures17
- Customer Service17
4 View of Vehicle18
- View of Vehicle, Front Left (Example)18
- View of Vehicle, Rear Right (Example)20
5 Serial Numbers22
- Chassis Number22
- Type Label22
- Engine Number23
- Key Number23
6 Controls24
- Clutch Lever24
- Hand Brake Lever24
- Throttle Grip25
- Horn Button25
- Light Switch26
- High Beam Flasher Button26
- Turn Signal Switch27
- Emergency off Switch27
- Electric Starter Button28
- Ignition/Steering Lock28
- Locking the Steering29
- Unlocking the Steering29
- Combination Instrument30
- Overview30
- Activation and Test31
- Warning Notes32
- Function Buttons35
- Indicator Lamps36
- Display37
- Filling Level Display of the Fuel Tank38
- TRIP F Display39
- Coolant Temperature Indicator40
- Info Display41
- 6.13.11 Riding Time/Average Speed Menu42
- 6.13.12 Average Speed/Average Fuel Consumption 1 Menu42
- 6.13.13 Average Fuel Consumption 1/Average Fuel Consumption 2 Menu43
- 6.13.14 Average Fuel Consumption 2/Service Menu44
- 6.13.15 Service/Range Menu45
- 6.13.16 Range/Riding Time Menu46
- 6.13.17 Total Distance Menu ODO47
- Distance Menu 1 TRIP 148
- Distance Menu 2 TRIP 248
- 6.13.20 Setting Kilometers or Miles49
- 6.13.21 Setting the Time49
- Adjusting the Shift Speed RPM 150
- Adjusting the Shift Speed RPM 251
- Opening the Filler Cap52
- Closing the Filler Cap53
- Seat Lock54
- Tool Set54
- Grab Handles55
- Passenger Footrests55
- Shift Lever56
- Foot Brake Lever57
- Side Stand57
7 Preparing for Use58
- Advice on First Use58
- Running in the Engine59
- Loading the Vehicle60
8 Riding Instructions62
- Checks and Maintenance When Preparing for Use62
- Starting63
- Starting off64
- Shifting, Riding65
- Applying the Brakes67
- Stopping, Parking69
- Transport70
- Refueling71
9 Service Schedule74
- Additional Information74
- Required Work74
- Recommended Work76
10 Tuning the Chassis77
- Adjusting the Spring Preload of the Shock Absorber77
- Adjusting the Shift Lever78
11 Service Work on the Chassis79
- Raising the Motorcycle with the Rear Lifting Gear79
- Removing the Rear of the Motorcycle from the Lifting Gear79
- Lifting the Motorcycle with the Front Lifting Gear80
- Taking the Motorcycle off of the Front Wheel Stand81
- Removing the Passenger Seat82
- Mounting the Passenger Seat83
- Removing the Seat83
- Mounting the Seat84
- Checking for Chain Dirt Accumulation85
- Cleaning the Chain85
- Checking the Chain Tension86
- Adjusting the Chain Tension88
- Checking the Chain, Rear Sprocket, and Engine Sprocket90
- Removing the Front Spoiler94
- Fitting Front Spoiler95
12 Brake System96
- Checking the Brake Discs96
- Checking the Brake Fluid Level of the Front Brake97
- Adding Front Brake Fluid98
- Adding Front Brake Fluid99
- Checking the Front Brake Linings99
- Checking the Free Travel of Foot Brake Lever100
- Adjusting the Free Travel of the Foot Brake Lever101
- Checking the Rear Brake Fluid Level102
- Adding Rear Brake Fluid103
- Adding Rear Brake Fluid106
- Checking the Rear Brake Linings106
13 Wheels, Tires107
- Removing the Front Wheel107
- Installing the Front Wheel107
- Removing the Rear Wheel109
- Installing the Rear Wheel110
- Checking the Rear Hub Rubber Dampers111
- Installing the Rear Wheel113
- Checking the Tire Condition113
- Checking the Tire Air Pressure114
14 Electrical System116
- Removing the Battery116
- Installing the Battery117
- Recharging the Battery118
- Changing the Fuses of Individual Power Consumers121
- Changing the Headlight Bulb123
- Changing the Parking Light Bulb126
- Checking the Headlight Setting130
- Adjusting the Headlight Range131
15 Cooling System134
- Checking the Antifreeze and Coolant Level136
  - Checking the Coolant Level138
- Draining the Coolant140
- Filling/Bleeding the Cooling System141
16 Tuning the Engine144
- Checking the Play in the Throttle Cable144
- Adjusting the Play in the Throttle Cable145
  - Checking the Clutch Lever Play145
- Adjusting Play in the Clutch Lever146
17 Service Work on the Engine147
- Checking the Engine Oil Level147
- Changing the Engine Oil and Oil Filter, Cleaning the Oil Screen147
  - Adding Engine Oil150
18 Cleaning, Care152
- Cleaning the Motorcycle152
- Checks and Maintenance Steps for Winter Operation154
19 Storage156
- Preparing for Use after Storage157
20 Troubleshooting158
21 Technical Data161
- Engine161
- Engine Tightening Torques162
- Capacities164
- Engine Oil164
- Coolant165
- Fuel165
- Chassis165
- Electrical System166
- Tires167
- Fork167
- Shock Absorber168
- Chassis Tightening Torques168
22 Substances173
23 Auxiliary Substances177
24 Standards179
25 List of Abbreviations180
26 List of Symbols181
- Red Symbols181
- Yellow and Orange Symbols181
- Green and Blue Symbols181
- Index182
