11 SERVICE WORK ON THE CHASSIS 87
S00668-10
Main work
–
Loosen nut
1
.
–
Loosen nuts
2
.
–

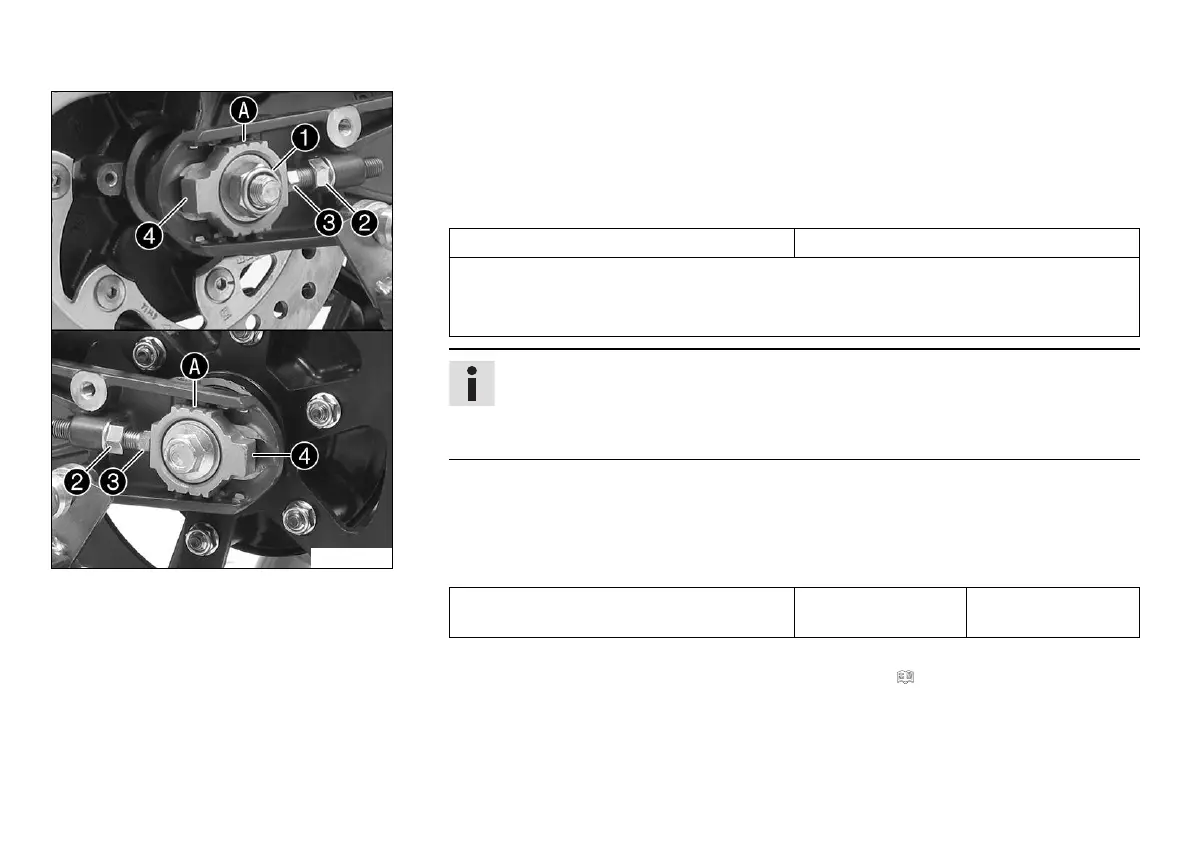

Adjust the chain tension by turning adjusting screws
3
left and right.
Guideline
Chain tension 5… 7 mm (0.2… 0.28 in)
Turn the adjusting screws
3
on the left and right so that the markings on the
left and right chain adjusters
4
are in the same position relative to the reference
marks
A
. The rear wheel is then correctly aligned.
Info
The upper part of the chain must be taut.
Chain wear is not always even, so you should check the setting at different chain
positions.
–
Tighten nuts
2
.
–
Make sure that chain adjusters
4
are fitted correctly on adjusting screws
3
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel spindle M14x1.5 90 Nm
(66.4 lbf ft)
Finishing work
– Remove the rear of the motorcycle from the lifting gear. ( p. 77)
