13 WHEELS, TIRES 106
B01549-10

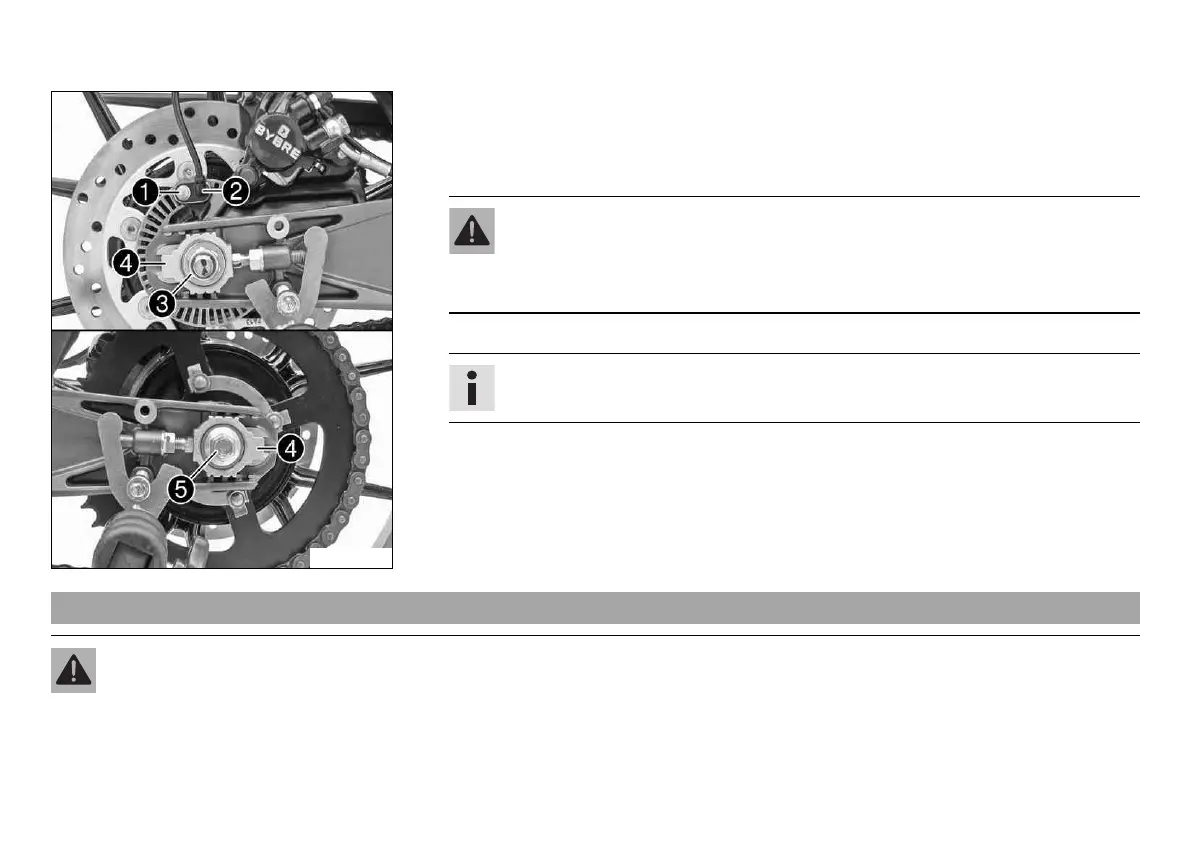

– Remove nut 3 and the washer. Remove chain adjuster 4.
– Holding the rear wheel, withdraw wheel spindle 54 with the washer and chain
adjuster.
– Push the rear wheel forward as far as possible and take the chain off the rear sprocket.
Warning
Danger of accidents Reduced braking effect caused by damaged brake discs.
– Always lay the wheel down in such a way that the brake discs are not dam-
aged.
– Pull the rear wheel back and take it out of the swingarm.
Info
Do not operate the foot brake when the rear wheel is removed.
13.4 Installing the rear wheel x
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
