14 ELECTRICAL SYSTEM 118
14.4 Changing the ABS fuses
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
– Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
Info
Two fuses for the ABS are located under the passenger seat. These fuses protect the return pump and the hydraulic unit of the
ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
Preparatory work
– Switch off all power consumers and the engine.
– Remove the passenger seat. ( p. 78)

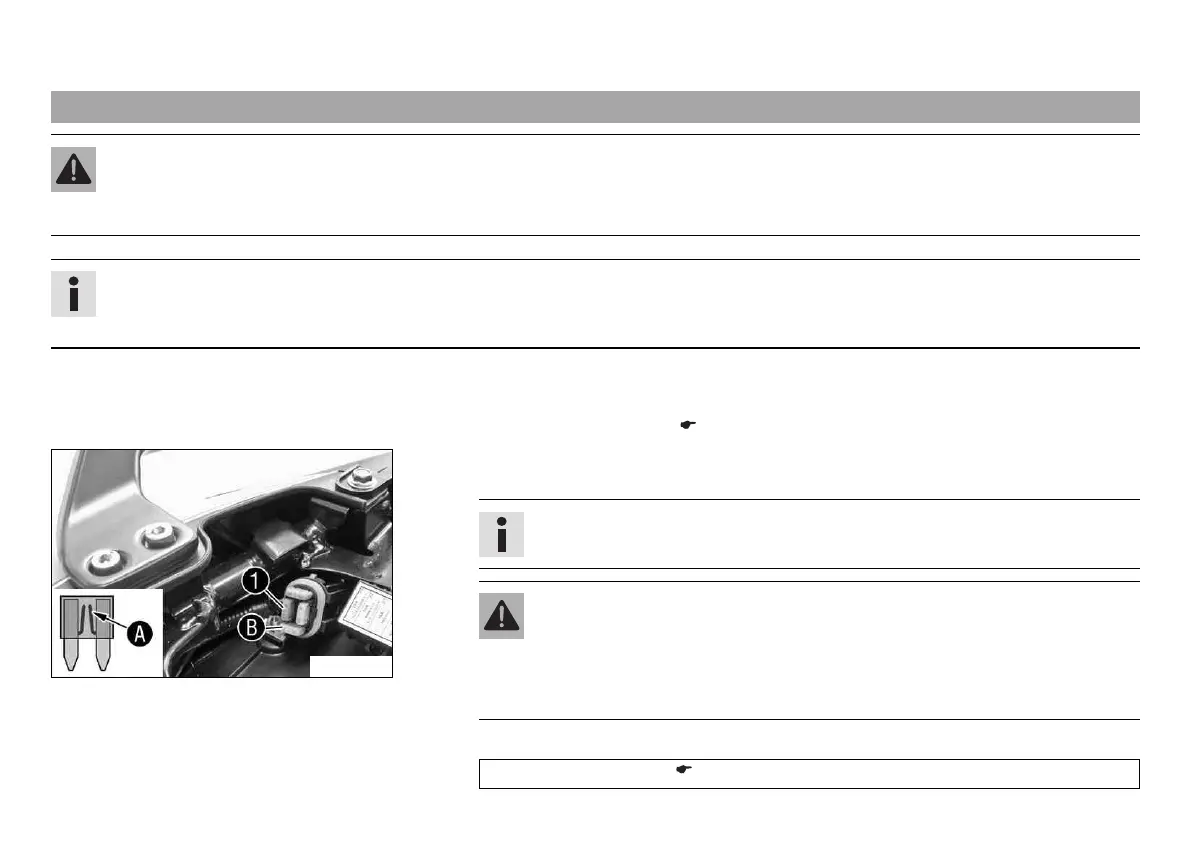

B01551-10
To change the fuse of the ABS hydraulic unit:
– Take off the protection cap and remove fuse 1.
Info
A defective fuse is indicated by a burned-out fuse wire A.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never by-pass or repair
fuses.
– Use spare fuses with the correct rating only.
Fuse (75011088015) ( p. 165)
