5 SERIAL NUMBERS 20

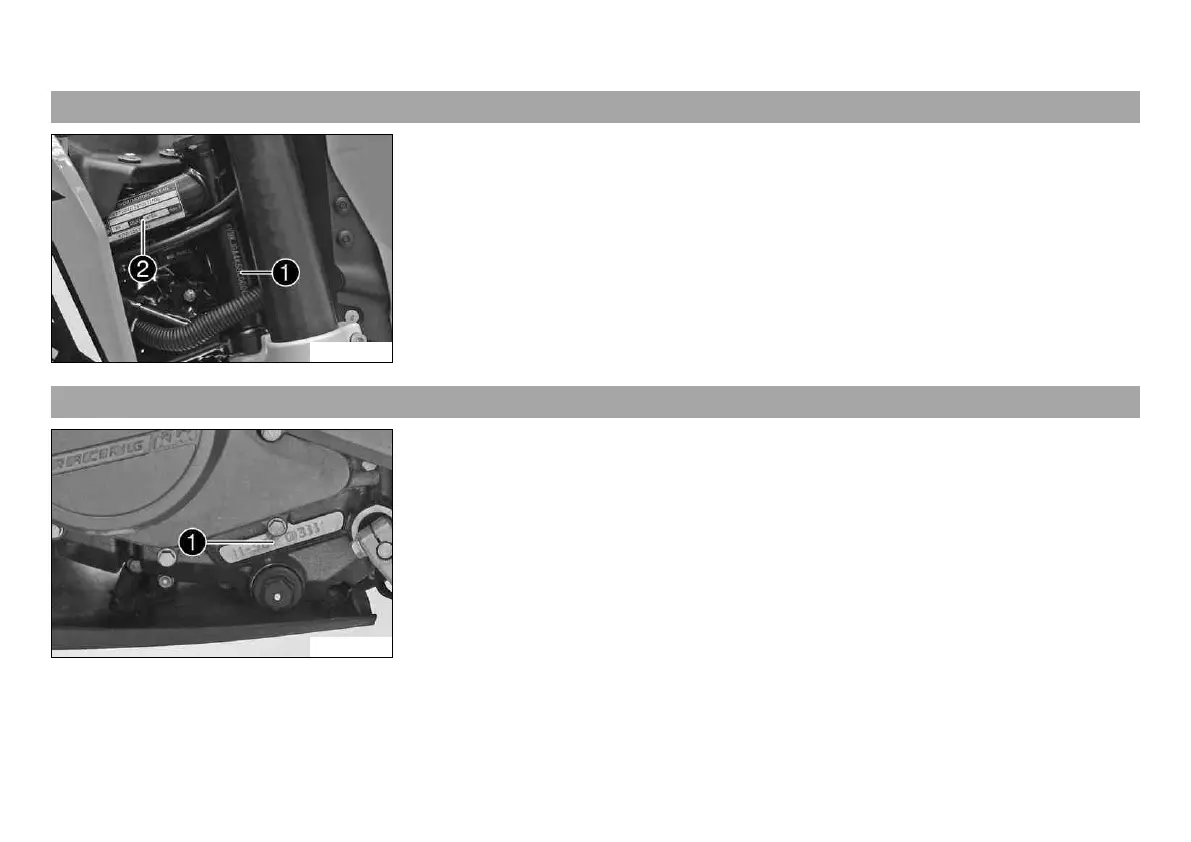

5.1 Chassis number/type label

B00699-10

The chassis number 1 is stamped on the right of the steering head.

The type label 2 is on the right of the frame behind the steering head.

5.2 Engine number

B00700-10

The engine number 1 is stamped on the left side of the engine under the engine sprocket.

Default Chapter5
- Table of Contents5
1 Meansofrepresentation9
- Means of Representation9
  - Symbols Used9
  - Formats Used9
2 Safety Advice10
- Use Definition10
- Degrees of Risk and Symbols11
- Tampering Warning11
- Safe Operation12
- Protective Clothing13
- Work Rules13
- Environment13
- Owner's Manual14
3 Important Notes15
- Guarantee, Warranty15
- Operating and Auxiliary Substances15
- Spare Parts, Accessories15
- Service15
- Figures16
- Customer Service16
4 View of Vehicle18
- View of Vehicle, Front Left (Example)18
- View of Vehicle, Rear Right (Example)20
5 Serial Numbers22
- Chassis Number/Type Label22
- Engine Number22
- Key Number23
6 Controls24
- Clutch Lever24
- Hand Brake Lever24
- Throttle Grip25
- Horn Button25
- Light Switch26
- High Beam Flasher Button26
- Turn Signal Switch27
- Emergency off Switch27
- Electric Starter Button28
- Ignition/Steering Lock28
- Combination Instrument29
- Overview29
- Activation and Test30
- Warning Notes31
- Function Buttons34
- Indicator Lamps35
- Display36
- Filling Level Display in Fuel Tank37
- TRIP F Display38
- Coolant Temperature Indicator39
- Info Display40
- 6.11.11 Riding Time/Average Speed Menu41
- 6.11.12 Average Speed/Average Fuel Consumption 1 Menu41
- 6.11.13 Average Fuel Consumption 1/Average Fuel Consumption 2 Menu42
- 6.11.14 Average Fuel Consumption 2/Service Menu43
- 6.11.15 Service/Range Menu44
- 6.11.16 Range/Riding Time Menu45
- 6.11.17 Total Distance Menu ODO46
  - Distance Menu 1 TRIP 146
  - Distance Menu 2 TRIP 247
  - 6.11.20 Setting Kilometers or Miles47
  - 6.11.21 Setting the Time48
  - Adjusting the Shift Speed RPM 149
  - Adjusting the Shift Speed RPM 249
  - Opening the Filler Cap50
  - Closing the Filler Cap52
  - Seat Lock52
  - Tool Set53
  - Grab Handles53
  - Passenger Footrests54
  - Shift Lever54
  - Foot Brake Lever55
  - Side Stand56
7 Preparing for Use57
- Advice on First Use57
- Running in the Engine58
- Loading the Vehicle59
8 Riding Instructions61
- Checks and Maintenance When Preparing for Use61
- Starting62
- Starting off64
- Shifting, Riding64
- Applying the Brakes67
- Stopping, Parking69
- Transport70
- Refueling71
- Service Schedule73
9 Serviceschedule75
- Tuning the Chassis75
- Adjusting the Spring Preload of the Shock Absorber75
- Adjusting the Shift Lever76
10 Tuning the Chassis75
11 Service Work on the Chassis77
- Raising the Motorcycle with the Rear Wheel Stand77
- Taking the Motorcycle off of the Rear Wheel Stand77
- Raising the Motorcycle with the Front Wheel Stand78
- Taking the Motorcycle off of the Front Wheel Stand79
- Removing the Passenger Seat80
- Mounting the Passenger Seat81
- Removing the Seat81
- Mounting the Seat82
- Checking for Chain Dirt Accumulation83
- Cleaning the Chain83
- Checking the Chain Tension84
- Adjusting the Chain Tension86
- Checking the Chain, Rear Sprocket, and Engine Sprocket88
- Removing the Front Spoiler92
- Fitting Front Spoiler93
12 Brake System94
- Abs/Antilock Brake System94
- Checking the Brake Discs95
- Checking the Brake Fluid Level of the Front Brake96
- Adding Front Brake Fluid X97
- Checking the Front Brake Linings98
- Checking the Free Travel of Foot Brake Lever99
- Adjusting the Free Travel of the Foot Brake Lever100
- Checking the Rear Brake Fluid Level101
- Adding Rear Brake Fluid X102
- Checking the Rear Brake Linings104
13 Wheels, Tires105
- Removing the Front Wheel105
- Installing the Front Wheel106
- Removing the Rear Wheel X107
- Installing the Rear Wheel X108
- Checking the Rear Hub Rubber Dampers110
- Checking the Tire Condition112
- Checking the Tire Air Pressure113
14 Electrical System115
- Removing the Battery115
- Installing the Battery116
- Recharging the Battery117
- Changing the ABS Fuses120
- Changing the Fuses of Individual Power Consumers121
- Changing the Headlight Bulb123
- Changing the Parking Light Bulb126
- Checking the Headlight Setting130
- Adjusting the Headlight Range131
- Cooling System134
15 Coolingsystem135
- Checking the Antifreeze and Coolant Level135
- Checking the Coolant Level137
- Draining the Coolant139
- Filling/Bleeding the Cooling System140
16 Tuning the Engine143
- Checking the Play in the Throttle Cable143
- Adjusting the Play in the Throttle Cable144
- Checking the Clutch Lever Play144
  - Adjusting the Clutch Cable Play145
17 Service Work on the Engine146
- Checking the Engine Oil Level146
- Changing the Engine Oil and Oil Filter, Cleaning the Oil Screen146
- Adding Engine Oil149
18 Cleaning, Care151
- Cleaning the Motorcycle151
  - Checks and Maintenance Steps for Winter Operation153
19 Storage155
- Preparing for Use after Storage156
20 Troubleshooting157
21 Technical Data160
- Engine160
- Duke160
- Duke EU/MAL161
- Engine Tightening Torques163
- Capacities165
- Engine Oil165
- Coolant165
- Fuel165
- Chassis166
- Electrical System167
- Tires168
- Fork168
- Shock Absorber168
- Chassis Tightening Torques169
22 Substances173
23 Auxiliary Substances176
24 Standards179
- Index180
