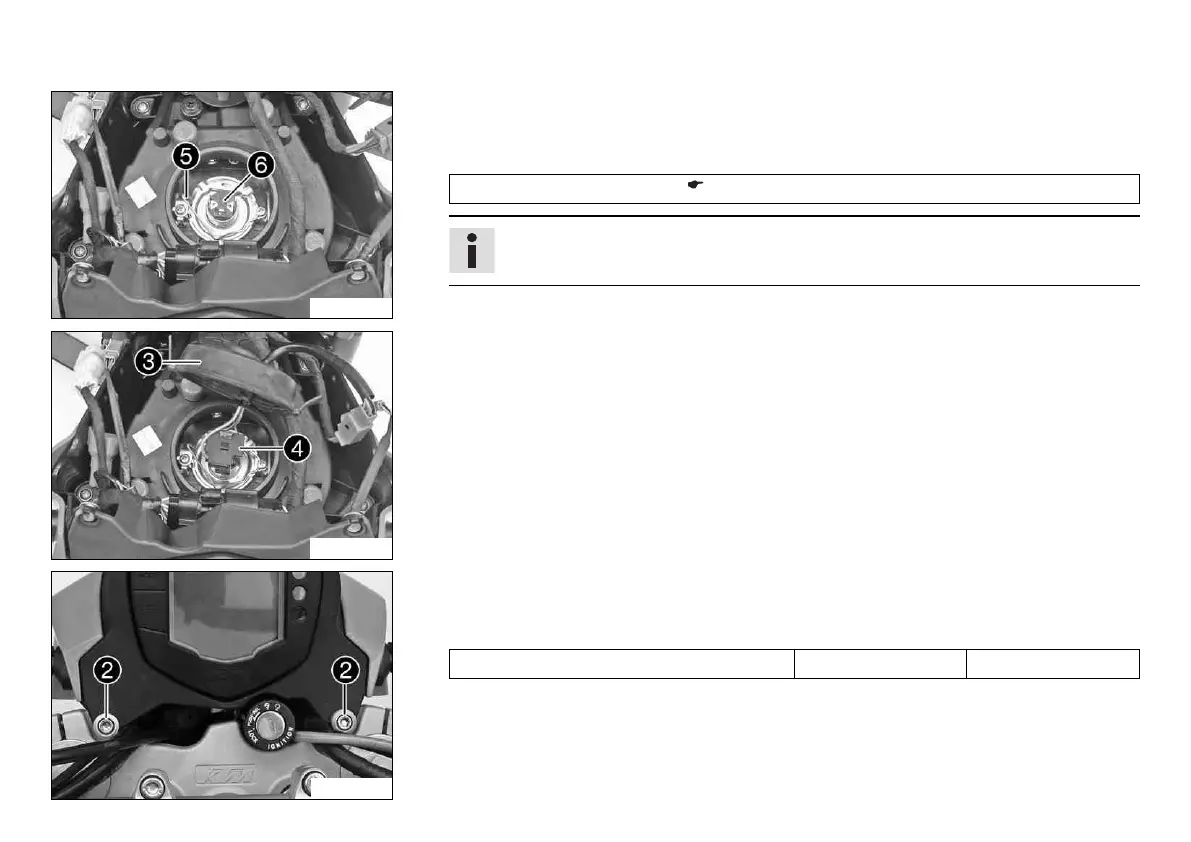

14 ELECTRICAL SYSTEM 123

B00761-10

– Detach retaining clamp 5.

– Remove headlight bulb 6.

– Position the new headlight bulb in the headlight housing.

Headlight (H4/socket P43t) ( p. 165)

Info

Insert the headlight bulb so that the catches latch into the recesses.

– Attach retaining clamp 5.

B00760-10

– Connect plug-in connection 4.

– Mount protection cap 3.

601914-10

– Fold the headlight mask up.

– Mount and tighten screws 2.

Guideline

Screw, headlight mask M6 11 Nm (8.1 lbf ft)
