11 SERVICE WORK ON THE CHASSIS 85
B01549-12
Main work

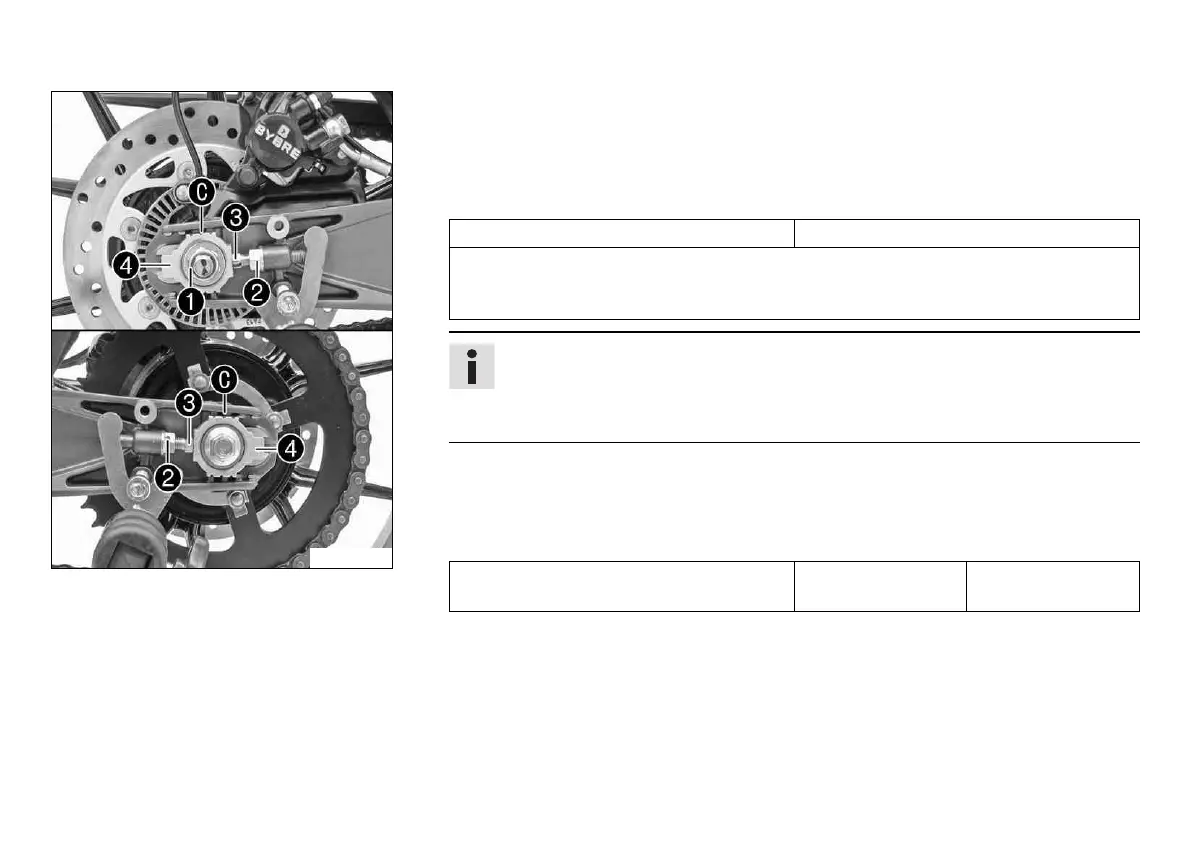

– Loosen nut 1.
– Loosen nuts 2.
– Adjust the chain tension by turning adjusting screws 3 on the left and right.
Guideline
Chain tension 5… 7 mm (0.2… 0.28 in)
Turn adjusting screws 3 on the left and right so that the markings on the left and
right chain adjuster 4 are in the same position in relation to reference marks C. The
rear wheel is then correctly aligned.
Info
The upper chain section must be taut.
Chain wear is not always even, so you should check the setting at different chain
positions.
– Tighten nuts 2.
– Make sure that chain adjusters 4 are fitted correctly on adjusting screws 3.
– Tighten nut 1.
Guideline
Nut, rear wheel spindle M14x1.5 60 Nm
(44.3 lbf ft)
