KTM 250 EXC-F EU 2010 User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 44

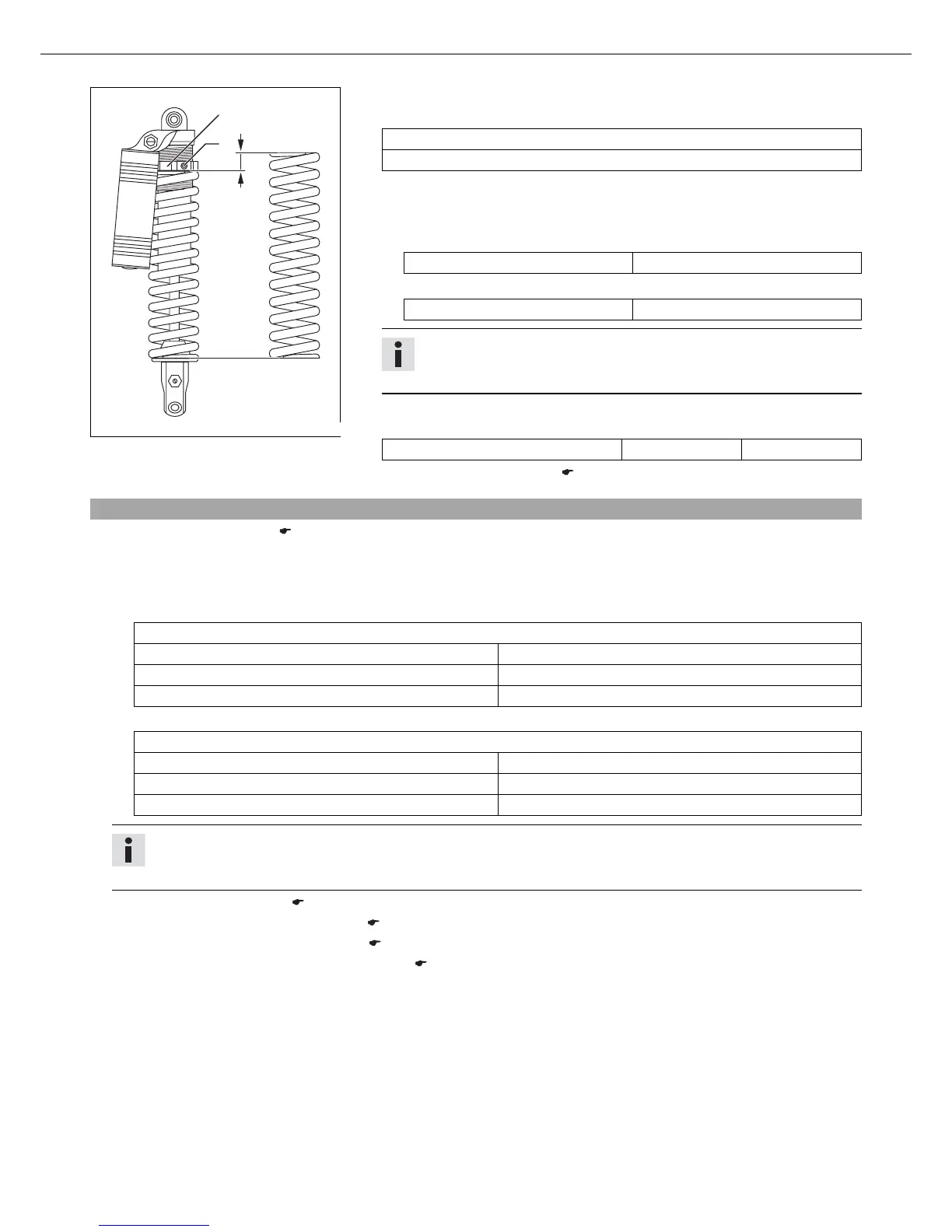

AA
22
11
400216-10
– Loosen screw .
– Turn adjusting ring  until the spring is no longer under tension.
Combination wrench (50329080000)
Hook wrench (T106S)
– Measure the overall spring length when not under tension.
– Tighten the spring by turning adjusting ring  to measurement .
Guideline
(EXC‑F, EXC‑F SIX DAYS, XCF-W)
Spring preload 8 mm (0.31 in)
(SX‑F)
Spring preload 6 mm (0.24 in)
Info
Depending on the static sag and/or the riding sag, it may be necessary to
increase or decrease the spring preload.
– Tighten screw .
Guideline
Screw, shock absorber adjusting ring M6 5 Nm (3.7 lbf ft)
–
Install the shock absorber. x ( p. 45)
13.12Adjusting the riding sag x
–
Remove shock absorber. x ( p. 45)
– After removing the shock absorber, clean it thoroughly.
– Choose and mount a suitable spring.
Guideline
(EXC‑F, EXC‑F SIX DAYS, XCF-W)
Spring rate
Weight of rider: 65… 75 kg (143… 165 lb.) 66 N/mm (377 lb/in)
Weight of rider: 75… 85 kg (165… 187 lb.) 69 N/mm (394 lb/in)
Weight of rider: 85… 95 kg (187… 209 lb.) 72 N/mm (411 lb/in)
(SX‑F)
Spring rate
Weight of rider: 65… 75 kg (143… 165 lb.) 66 N/mm (377 lb/in)
Weight of rider: 75… 85 kg (165… 187 lb.) 69 N/mm (394 lb/in)
Weight of rider: 85… 95 kg (187… 209 lb.) 72 N/mm (411 lb/in)
Info
The spring rate is shown on the outside of the spring.
Smaller weight differences can be compensated by changing the spring preload.
–
Install the shock absorber. x ( p. 45)
– Check the static sag of the shock absorber. ( p. 43)
– Check the riding sag of the shock absorber. ( p. 43)
– Adjust the rebound damping of the shock absorber. ( p. 42)
