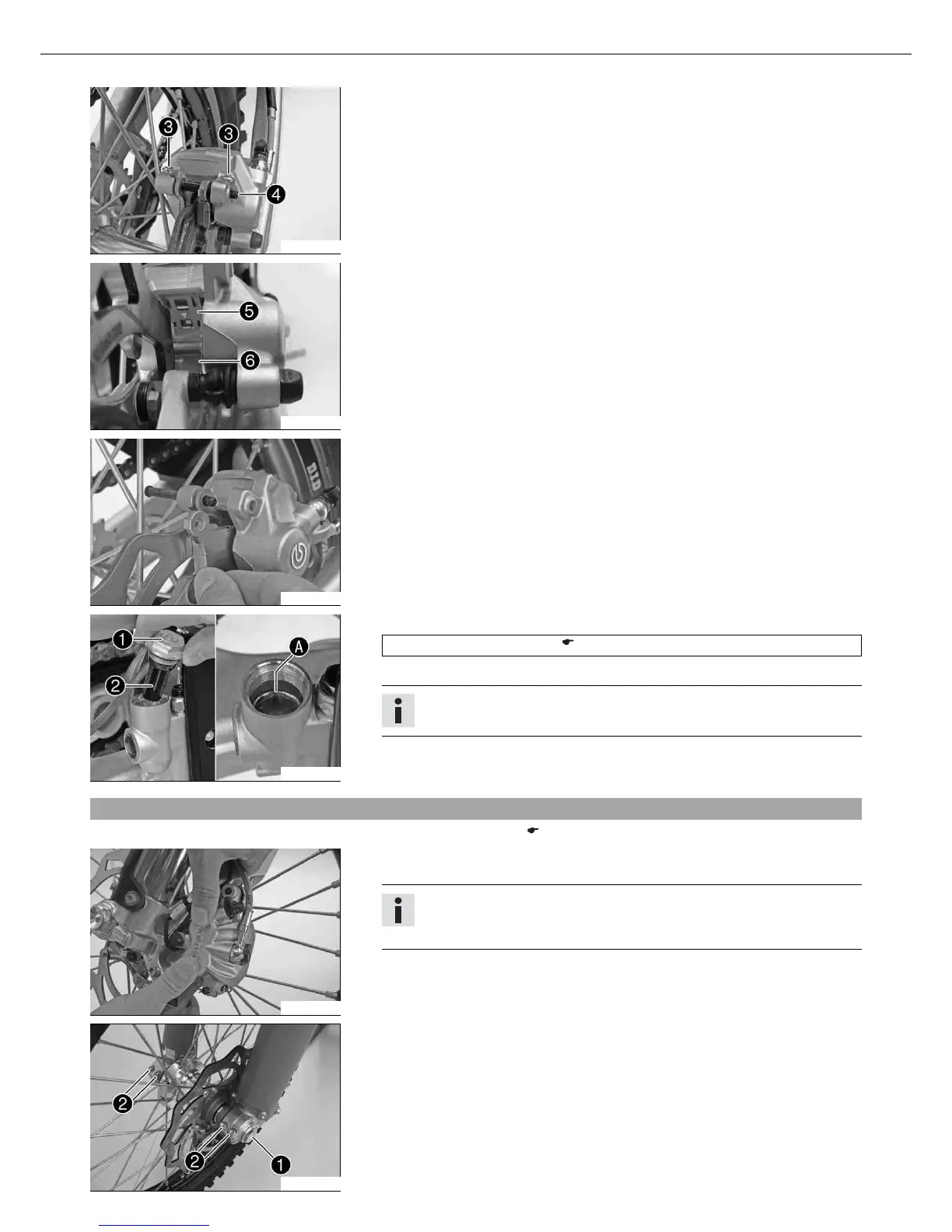

MAINTENANCE WORK ON CHASSIS AND ENGINE 69
100808-10
– Remove locking split pins , withdraw bolt , and take out the brake linings.
– Clean the brake caliper and brake caliper support.
100407-10
– Check that leaf spring in the brake caliper and sliding plate in the brake
caliper support are seated correctly.
100408-01
– Fit the brake linings, insert the bolt, and mount the locking split pins.
– Operate the foot brake lever repeatedly until the brake linings lie on the brake disc
and there is a pressure point.
400233-10
– Correct the brake fluid quantity to marking .
Brake fluid DOT 4 / DOT 5.1 ( p. 116)
– Mount screw cap with membrane and the O-ring.
Info
Clean up overflowed or spilt brake fluid immediately with water.
13.66Removing front wheel x
– Jack up the motorcycle. ( p. 40)
100809-01
– Press the brake caliper by hand on to the brake disc in order to press back the
brake pistons.
Info
Make sure when pushing back the brake pistons that you do not press the
brake caliper against the spokes.
500084-10
– Remove screw .
– Loosen screw .
