15 ELECTRICAL SYSTEM

122

E00394-10

–

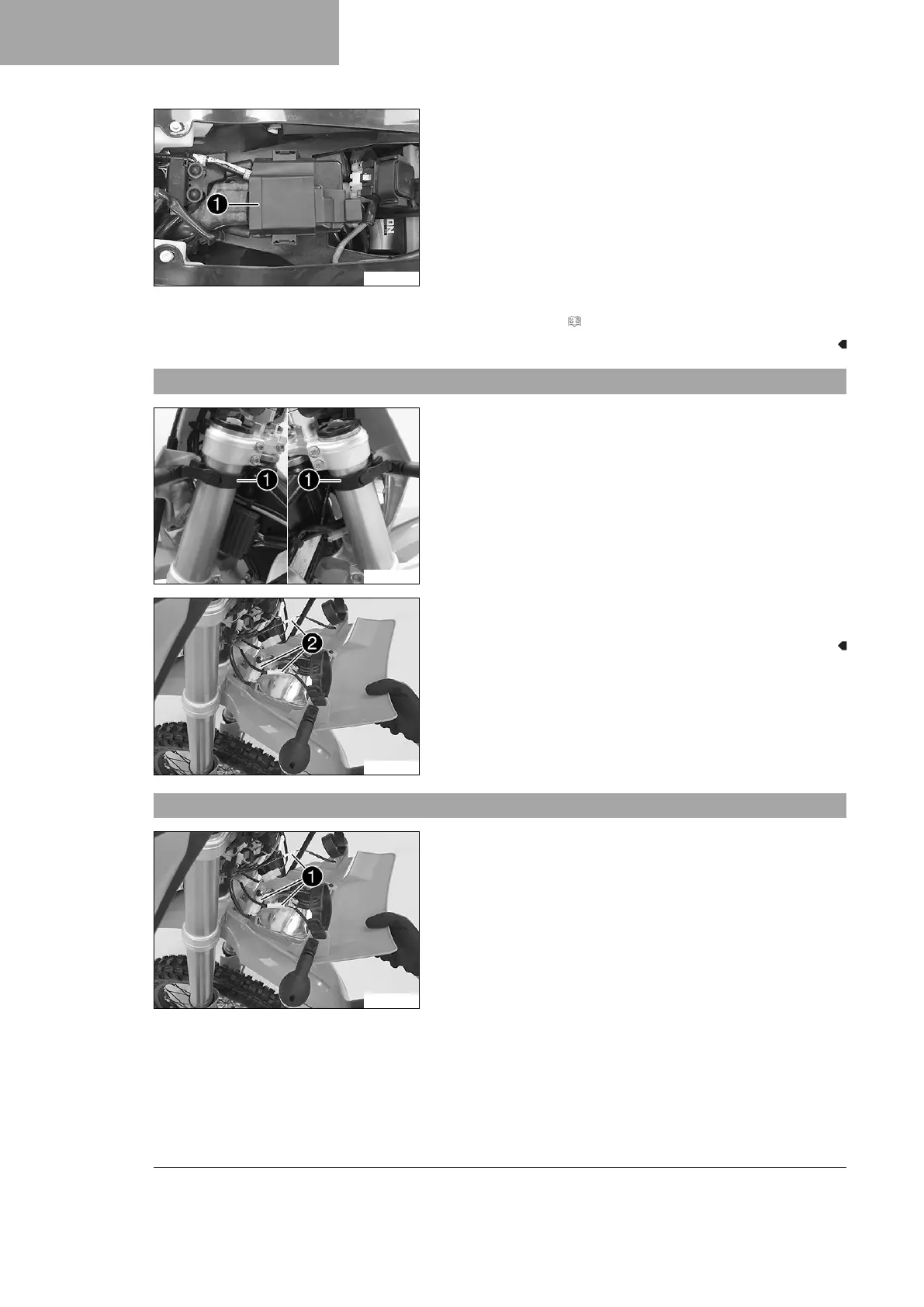

Mount engine electronics control unit

on the holder.

Finishing work

– Mount the seat. ( p. 77)

15.6 Removing the headlight mask with the headlight

V00458-10

– Detach the brake line and wiring harness from the headlight

mask.

–

Release rubber bands

. Slide the headlight mask up and

swing it forward.

E00356-10

–

Detach plug-in connectors

and take off the headlight mask

with the headlight.

15.7 Installing the headlight mask with the headlight

E00356-11

Main work

–

Connect plug-in connectors
