12 SERVICE WORK ON THE CHASSIS
76
Finishing work
–
Install the headlight mask with the headlight. ( p. 122)
– Check the headlight setting. ( p. 124)

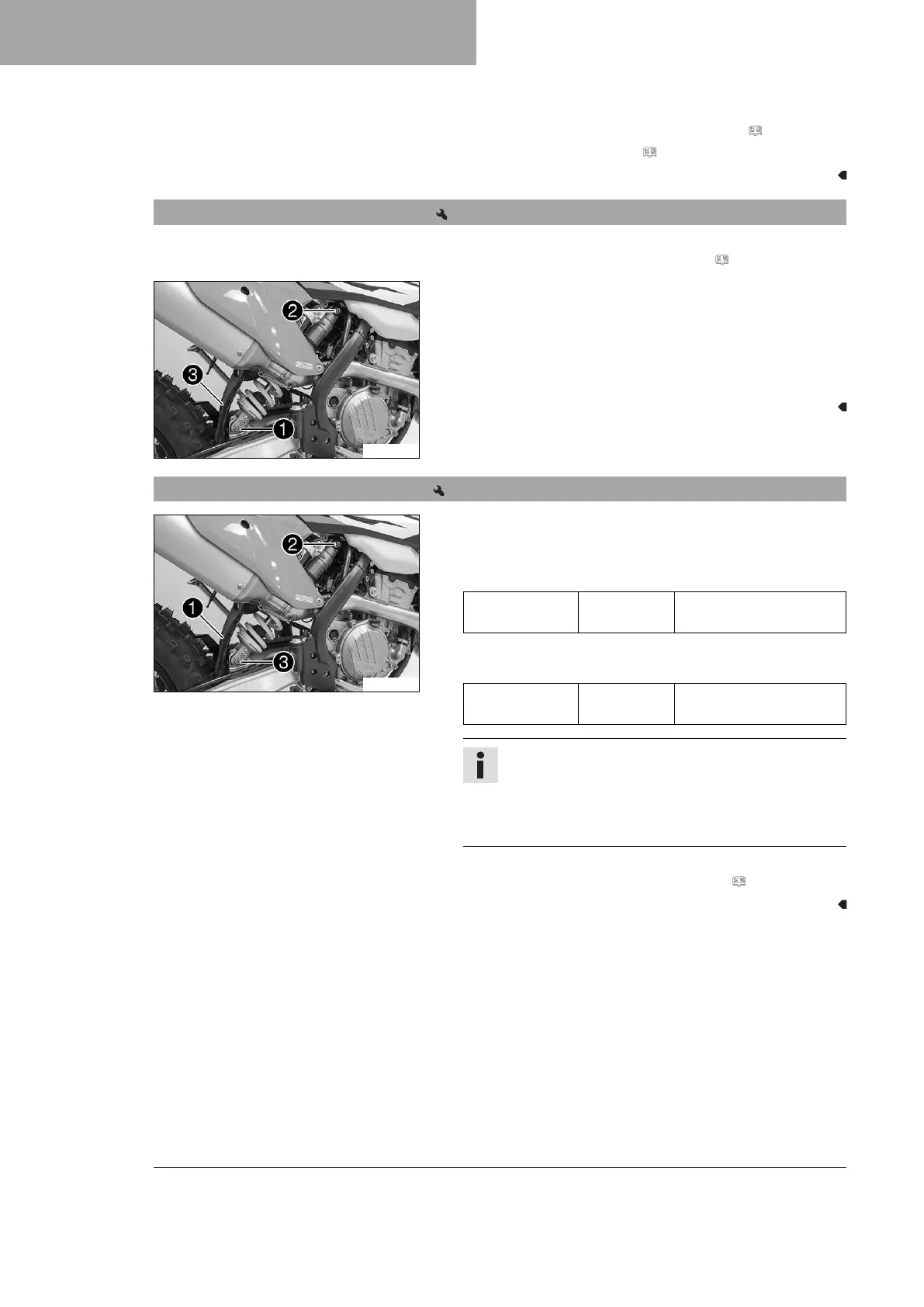

12.19 Removing the shock absorber
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 62)
K00551-10
Main work
–
Remove screw
1
and lower the rear wheel with the swing arm
as far as possible without blocking the rear wheel. Fix the rear
wheel in this position.
–
Remove screw
2
, push splash protector
3
to the side, and
remove the shock absorber.
12.20 Installing the shock absorber
K00551-11
Main work
–
Push splash protector
1
to the side and position the shock
absorber. Mount and tighten screw
2
.
Guideline
Screw, top
shock absorber
M12 80 Nm (59 lbf ft)
Loctite
®
2701™
–
Mount and tighten screw
3
.
Guideline
Screw, bottom
shock absorber
M12 80 Nm (59 lbf ft)
Loctite
®
2701™
Info
The heim joint for the shock absorber at the swing arm
is Teflon coated. It must not be greased with grease or
with other lubricants. Lubricants dissolve the Teflon
coating, thereby drastically reducing the service life.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 62)
