KTM 250 EXC TPI User Manual

SERVICE WORK ON THE ENGINE 18
143
S03510-10

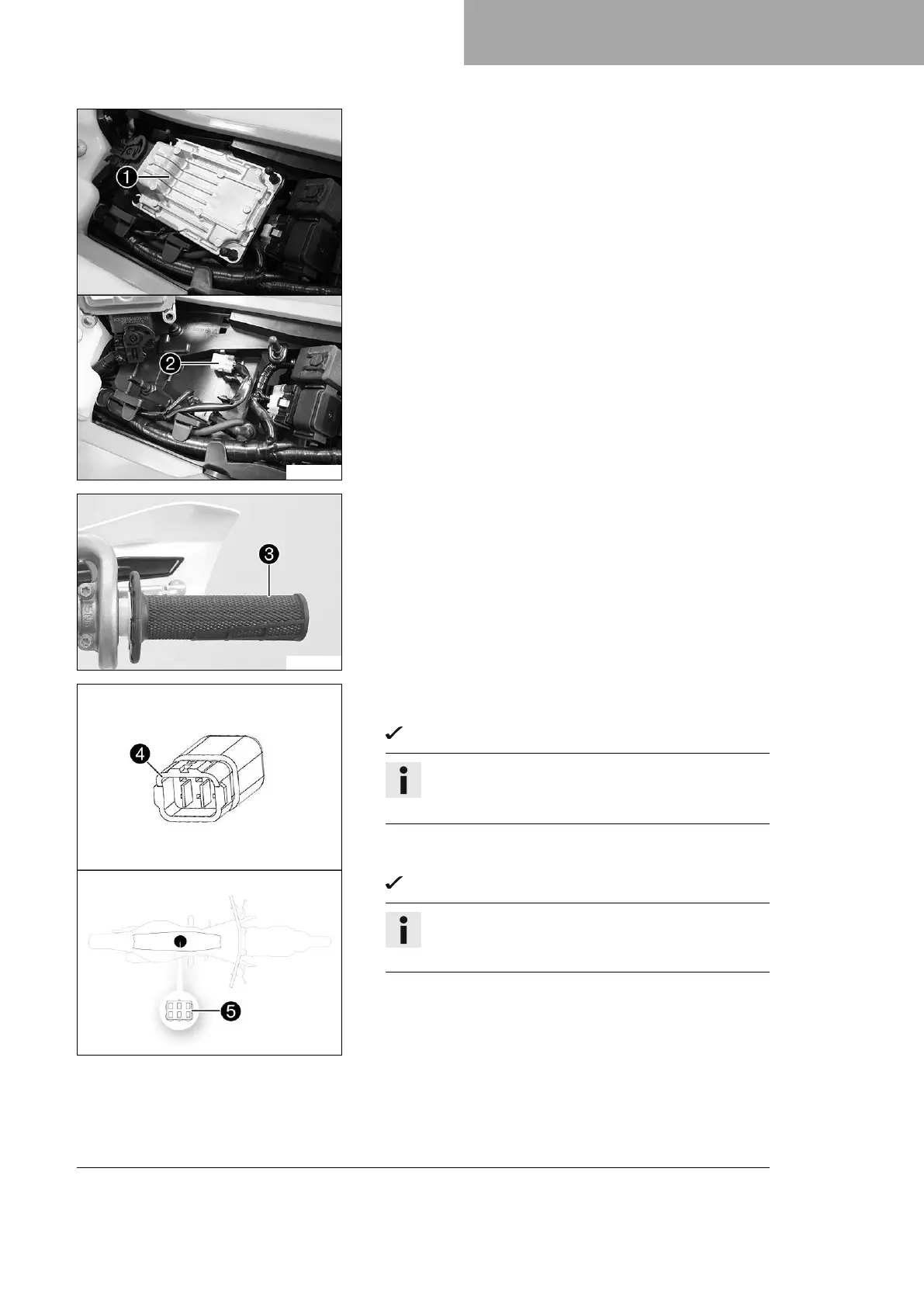

Main work
–
Pull the EFI control unit
1
upward off the rubber plugs and
hang to the side.
–
Remove protection cap
2
of the diagnostics connector.
S03511-10
–
Put throttle grip
3
into full throttle position and secure.
S03512-10
–
Plug in wake-up connector
4
for priming the oil pump to the
diagnostics connector
5
.
The combination instrument lighting is activated.
Info
The connector is included as part of the motorcycle's
separate enclosure.
– Wait for at least five seconds.
– Release the fixing means from the throttle grip.
The oil pump is timed.
Info
The oil pump is actuated at various speeds.
The procedure is clearly audible.
– Wait until you can no longer hear the oil pump working.
– Disconnect the wake-up connector from the diagnostics con-
nector.

KTM 250 EXC TPI Specifications

General

Displacement	249 cm³
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	960 mm
Bore x Stroke	66.4 mm x 72 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 l
Frame	Central tube frame made of chrome molybdenum steel
