SERVICE WORK ON THE CHASSIS 12
81

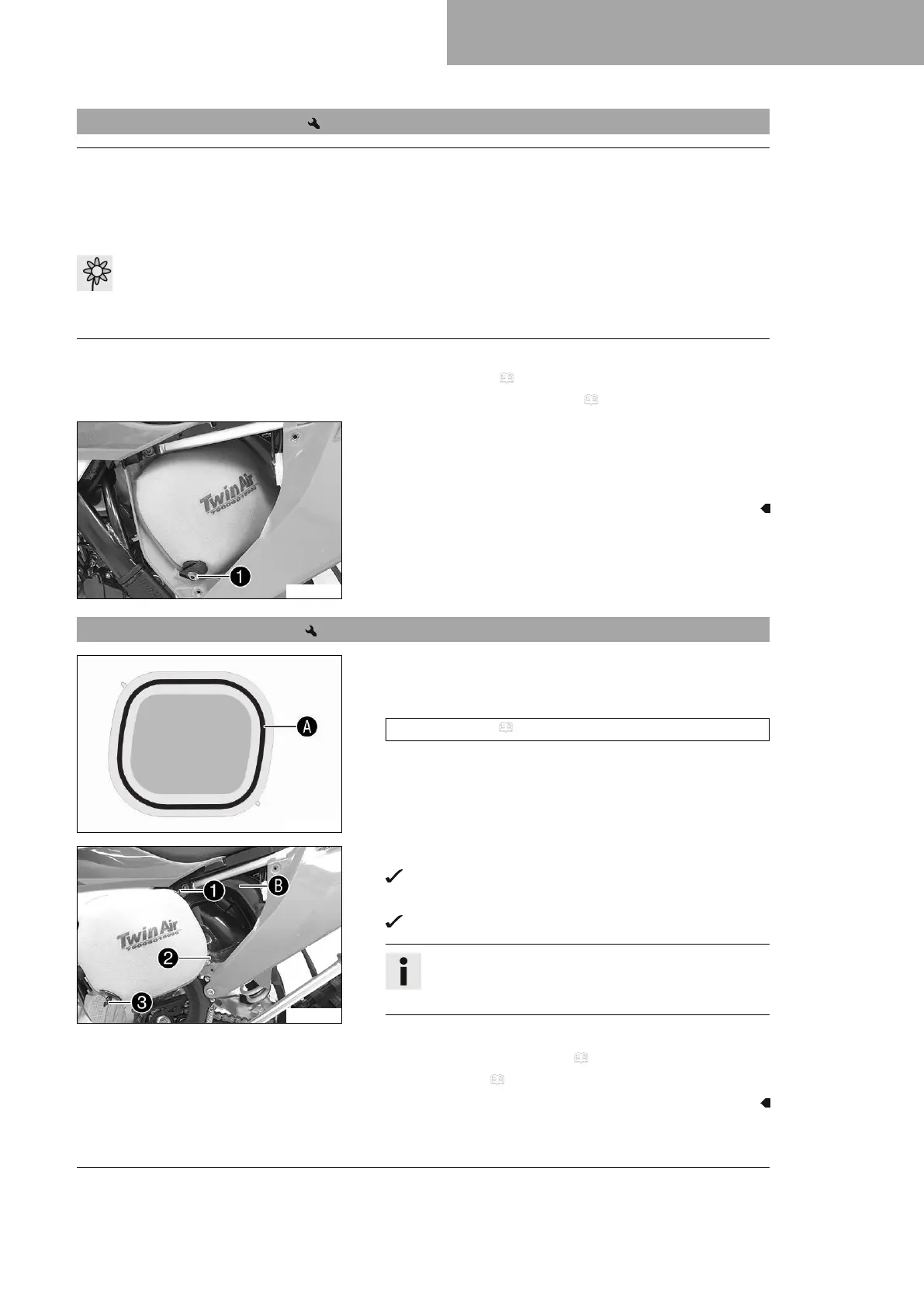

12.24 Removing the air filter
Note
Engine damage Unfiltered intake air has a negative effect on the service life of the engine.
Dust and dirt will enter the engine without an air filter.
–
Never start to use the vehicle without an air filter.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Preparatory work
– Remove the seat. ( p. 79)
– Remove the air filter box cover. ( p. 80)
S03482-10
Main work
–
Detach retaining tab
1
. Remove air filter with air filter sup-
port.
– Remove air filter from air filter support.
12.25 Installing the air filter
H02459-01
Main work
– Mount the clean air filter on the air filter support.
–
Grease the air filter in area
A
.
Long-life grease ( p. 168)
S03483-10
–
Insert air filter and position retaining pin
1
in bushing
B
.
The air filter is correctly positioned.
–
Insert retaining tab
2
.
Retaining pin
3
is secured with retaining tab
2
.
Info
If the air filter is not mounted correctly, dust and dirt
may enter the engine and result in damage.
Finishing work
– Install the air filter box cover. ( p. 80)
– Mount the seat. ( p. 79)
