KTM 250 EXC TPI User Manual

SERVICE WORK ON THE ENGINE 18
145
S03503-10
–

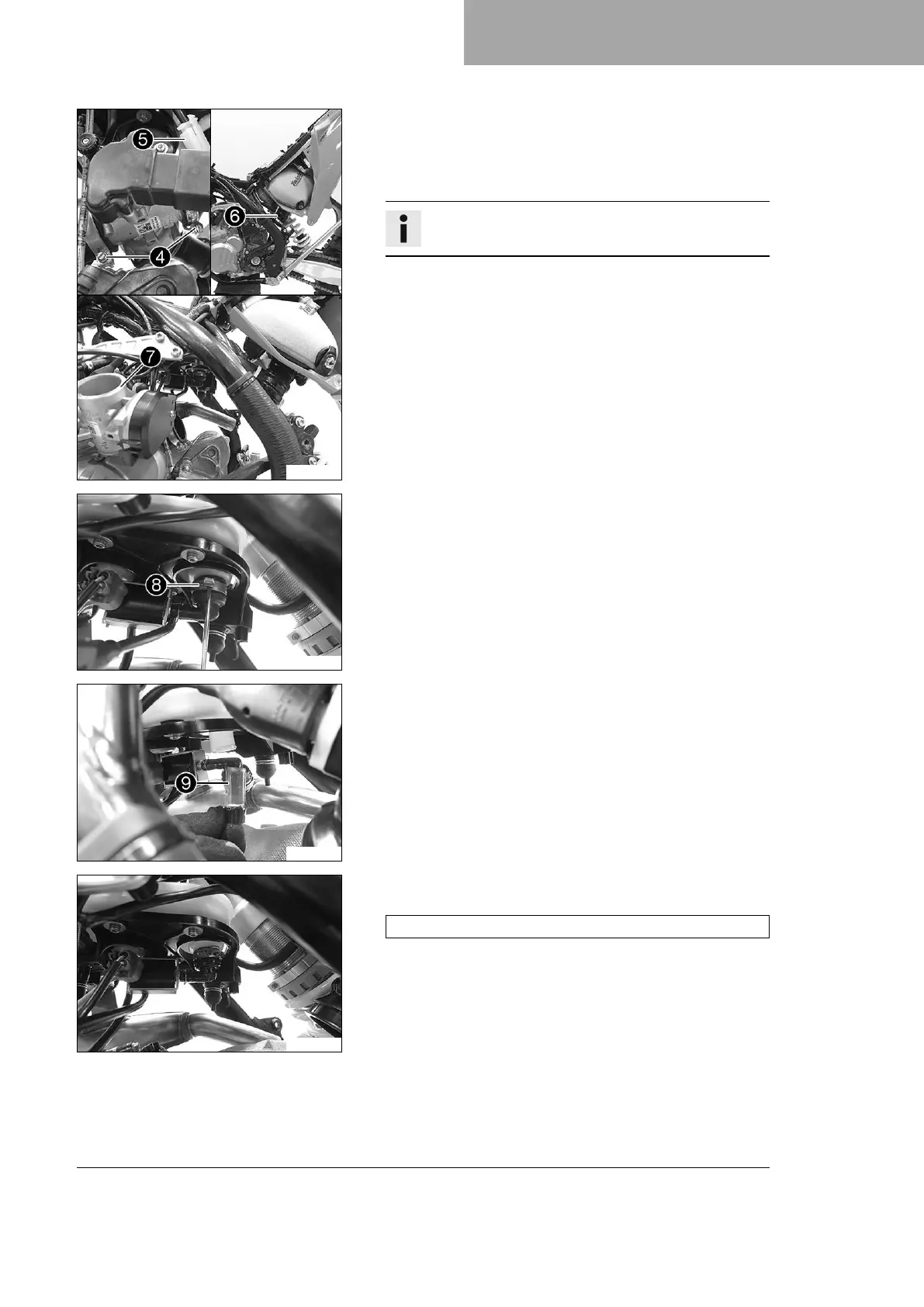

Loosen clamps
4
of the throttle valve body.
–
Disconnect plug-in connector
5
of the rear brake light
switch.
– Lift the subframe slightly and secure it.
Info
Pay attention to intake flange
6
.
–
Pull throttle valve body
7
towards the rear, out of the intake
flange, and hang it to the side.
S03504-10
–
Open hose clamp
8
using a screwdriver.
– Pull off the angle piece and collect the 2-stroke oil in a suit-
able container.
S03505-10
–
Remove oil screen
9
and clean it.
– Check the oil screen for damage.
» If the oil screen is damaged:
– Change the oil screen.
S03506-10
– Insert the oil screen and mount the angle piece with a new
hose clamp.
Hose clamp plier (60029057000)

KTM 250 EXC TPI Specifications

General

Displacement	249 cm³
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	960 mm
Bore x Stroke	66.4 mm x 72 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 l
Frame	Central tube frame made of chrome molybdenum steel
