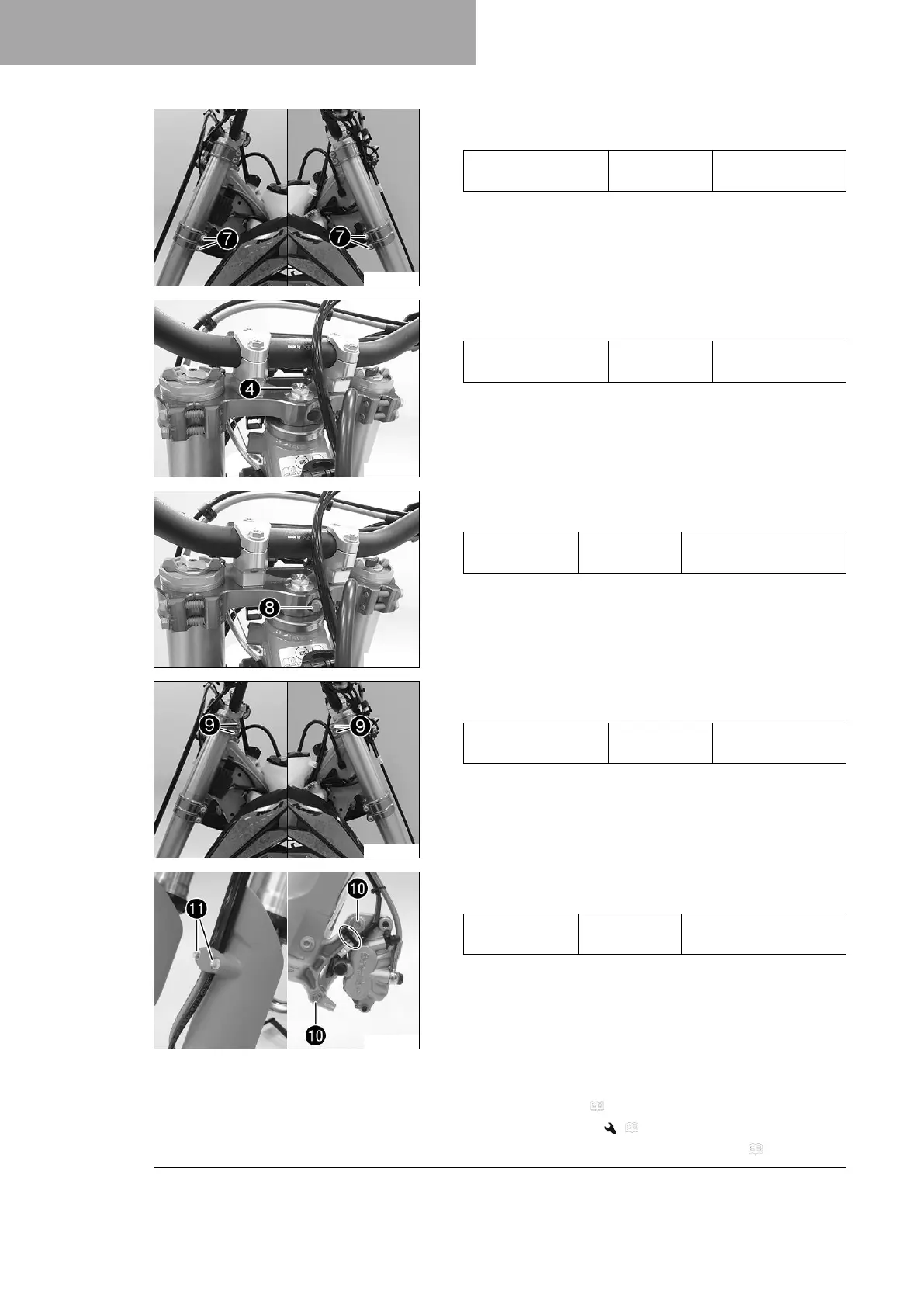

12 SERVICE WORK ON THE CHASSIS
74
S03524-11
–
Tighten screws
7
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm (11.1 lbf ft)
S03523-10
–
Tighten screw
4
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
S03509-11
–
Mount and tighten screw
8
.
Guideline
Screw, top
steering stem
M8 17 Nm (12.5 lbf ft)
Loctite
®
243™
S03524-10
–
Tighten screws
9
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
E00375-13
–
Position the brake caliper, and mount and tighten screws
bk
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable ties.
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
bl
.
Finishing work
– Mount the handlebar cushion.
– Install front fender. ( p. 77)
– Install the front wheel. ( p. 111)
– Install the headlight mask with the headlight. ( p. 125)

KTM 250 EXC TPI Specifications

General

Displacement	249 cm³
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	960 mm
Bore x Stroke	66.4 mm x 72 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 l
Frame	Central tube frame made of chrome molybdenum steel
