11 SERVICE WORK ON THE CHASSIS
70
H01759-10
Main work
–

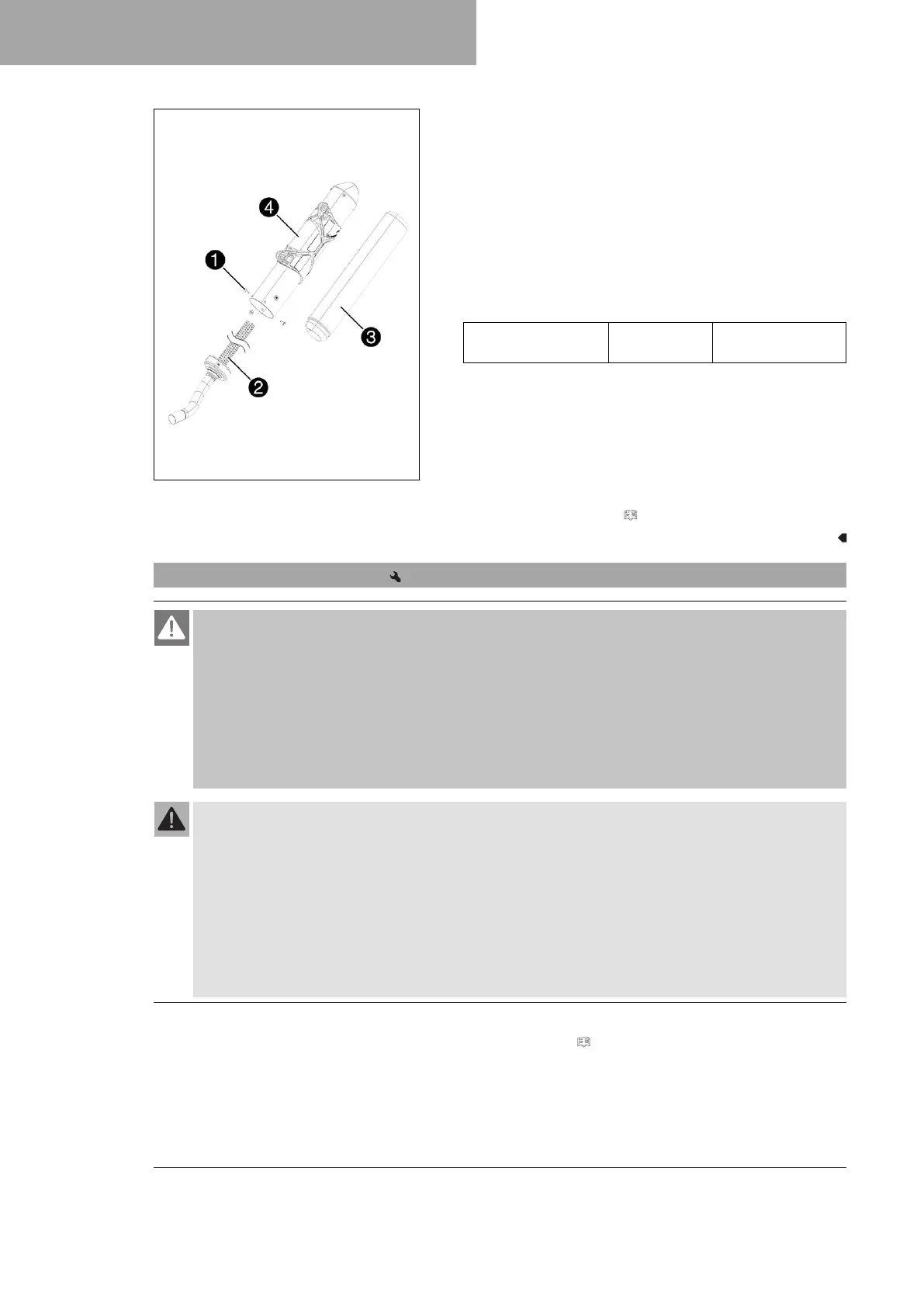

Remove screws
1
. Pull out inner tube
2
.
–
Remove the glass fiber yarn filling
3
from the inner tube.
– Clean the parts that need to be reinstalled and check for dam-
age.
–
Fit the new glass fiber yarn filling
3
into the inner tube.
–
Slide outer tube
4
over the inner tube with the new glass
fiber yarn filling.
–
Mount and tighten all screws
1
.
Guideline
Screws on the main
silencer
M5 7 Nm (5.2 lbf ft)
Finishing work
– Install the main silencer. ( p. 69)
11.31 Removing the fuel tank
Danger
Fire hazard Fuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.
– Do not refuel the vehicle in the vicinity of open flames or lit cigarettes.
– Switch off the engine for refueling.
– Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
– If any fuel is spilled, wipe it off immediately.
– Observe the specifications for refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid skin, eye and clothing contact with fuel.
– Immediately consult a doctor if you swallow fuel.
– Do not inhale fuel vapors.
– In case of skin contact, rinse the affected area with plenty of water.
– Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
– Change your clothing in case of fuel spills on them.
– Keep fuels correctly in a suitable canister, and out of the reach of children.
Preparatory work
– Remove the seat. ( p. 64)
(All SX models)
– Turn tap handle of the fuel tap to the OFF position.
(All XC models)
– Turn tap handle of the fuel tap to the OFF position.
