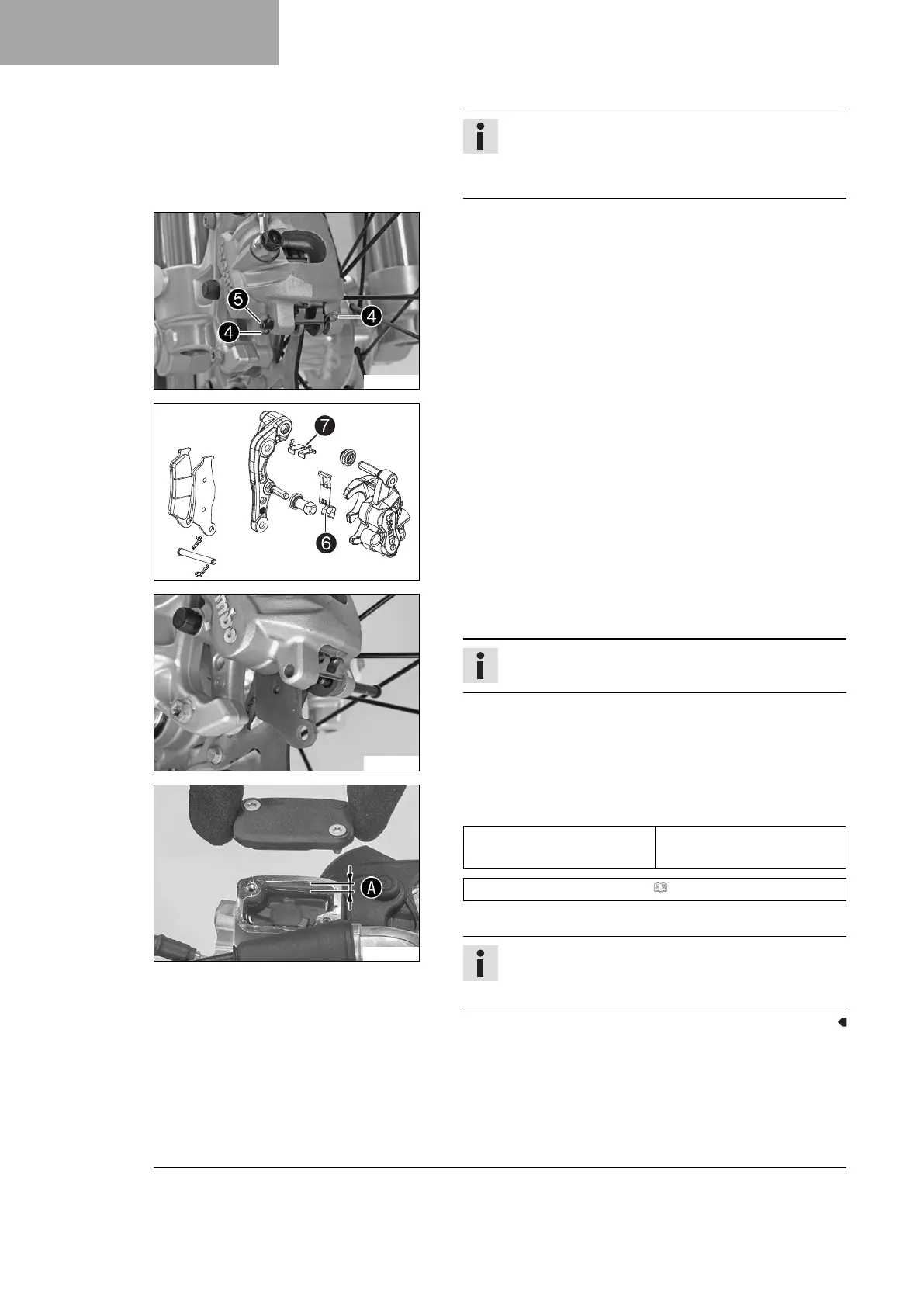

12 BRAKE SYSTEM
88
Info
Make sure that you do not press the brake caliper
against the spokes when pushing back the brake
pistons.
101737-10
–
Remove cotter pin
4
, pull out pin
5
, and remove the brake
linings.
– Clean the brake caliper and brake caliper support.
100397-01
–
Check that leaf spring
6
in the brake caliper and sliding
plate
7
in the brake caliper support are seated correctly.
101738-01
– Insert the new brake linings, insert the pin, and mount the cot-
ter pins.
Info
Always change the brake linings in pairs.
– Operate the hand brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
K00521-10
–
Correct the brake fluid quantity to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 147)
– Position cover with membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilled brake fluid immediately
with water.

KTM 250 SX 2019 Specifications

General

Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Starter	Kickstarter
Transmission	5-speed
Ignition	Kokusan
Ground Clearance	375 mm
Seat Height	950 mm
Engine Type	2-stroke
Clutch	Wet, multi-disc clutch
Frame Type	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XACT 48 mm fork
Rear Suspension	WP XACT shock absorber with linkage
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	7.5 liters
