10 TUNING THE CHASSIS
46
Guideline
Air pressure (All EU models) 10.4 bar (151 psi)
Air pressure (SX‑F US) 10.5 bar (152 psi)
Air pressure (XC‑F US) 9.8 bar (142 psi)
Gradual changing of the air
pressure in steps of
0.2 bar (3 psi)
Minimum air pressure 7 bar (102 psi)
Maximum air pressure 12 bar (174 psi)
Info
Never adjust the air pressure to a value outside the
stated range.
– Disconnect the fork airpump from the left fork leg.
When disconnecting, excess pressure will escape from the
hose – the fork leg itself does not lose any air.
The fork airpump indicator switches off automatically after
80 seconds.
– Mount the protection cap.
Info
Only mount the protection cap by hand.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 50)

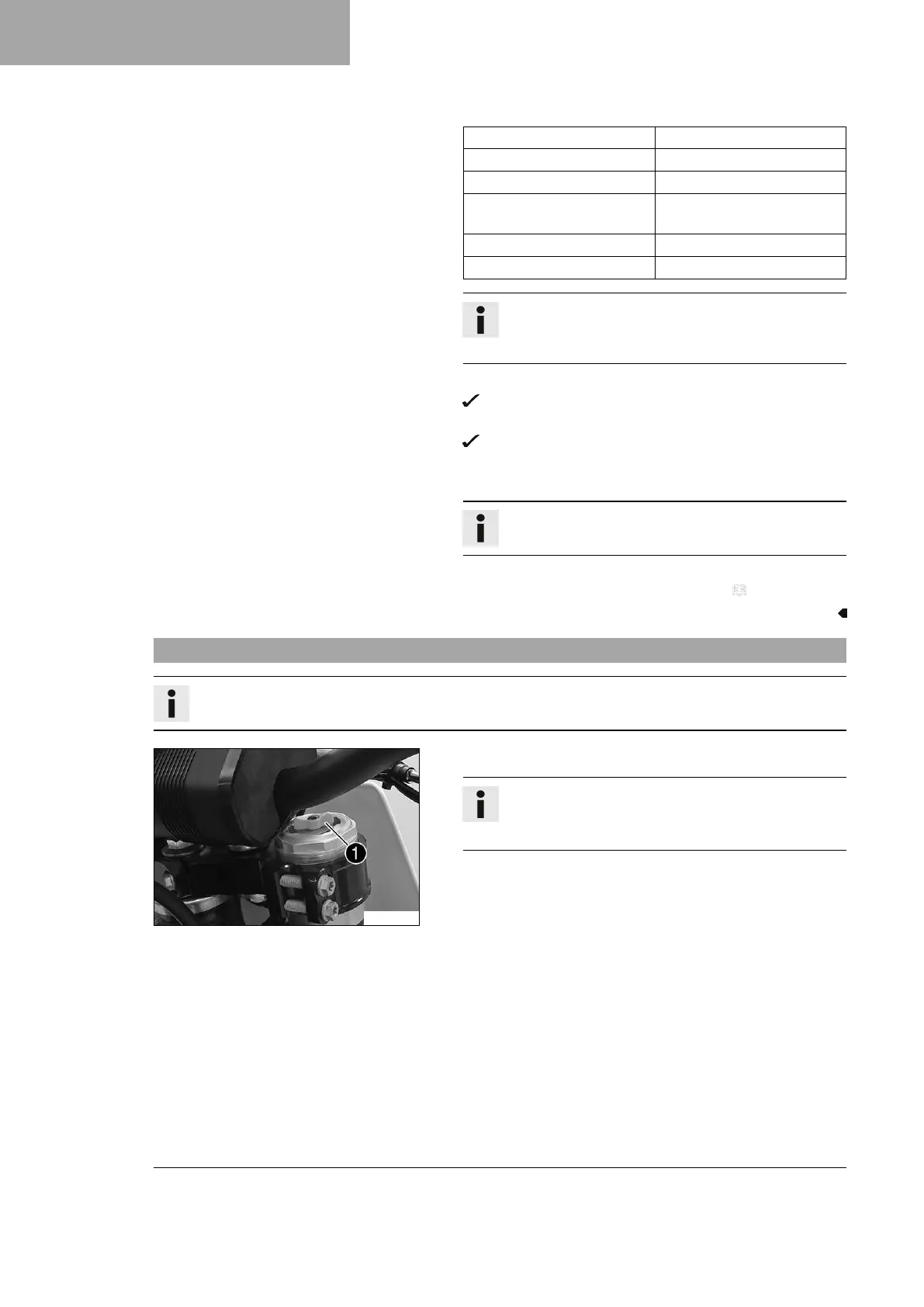

10.14 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
F02212-10
–
Turn adjuster
1
clockwise all the way.
Info
Adjuster
1
is located at the upper end of the right
fork leg.
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
