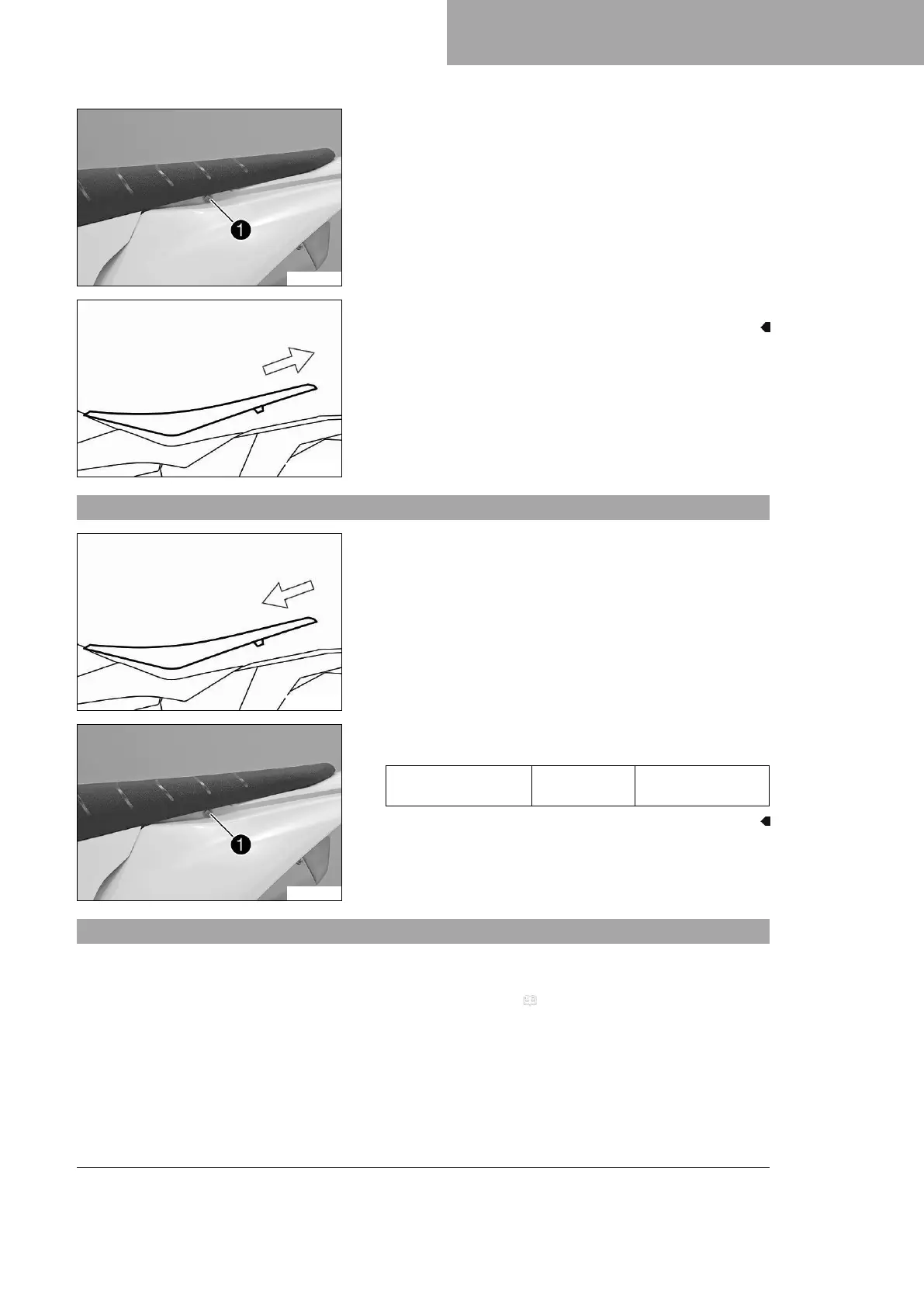

SERVICE WORK ON THE CHASSIS 11
67
F01533-10
Remove screw
1
.
H02218-10
Raise the rear of the seat, pull the seat back, and lift it off.
11.25 Mounting the seat
H02218-11
Mount the front of the seat on the collar bushing of the fuel
tank, lower the seat at the rear, and push the seat forward.
F01533-10
Mount and tighten screw
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
11.26 Removing the air filter box cover
Condition
The air filter box cover is secured.
Remove the seat. ( p. 66)
